Топливный бак (model k5/k6/k7/k8) Оригинальные запчасти для мотоциклов Suzuki LS650 Boulevard S40 (2009)

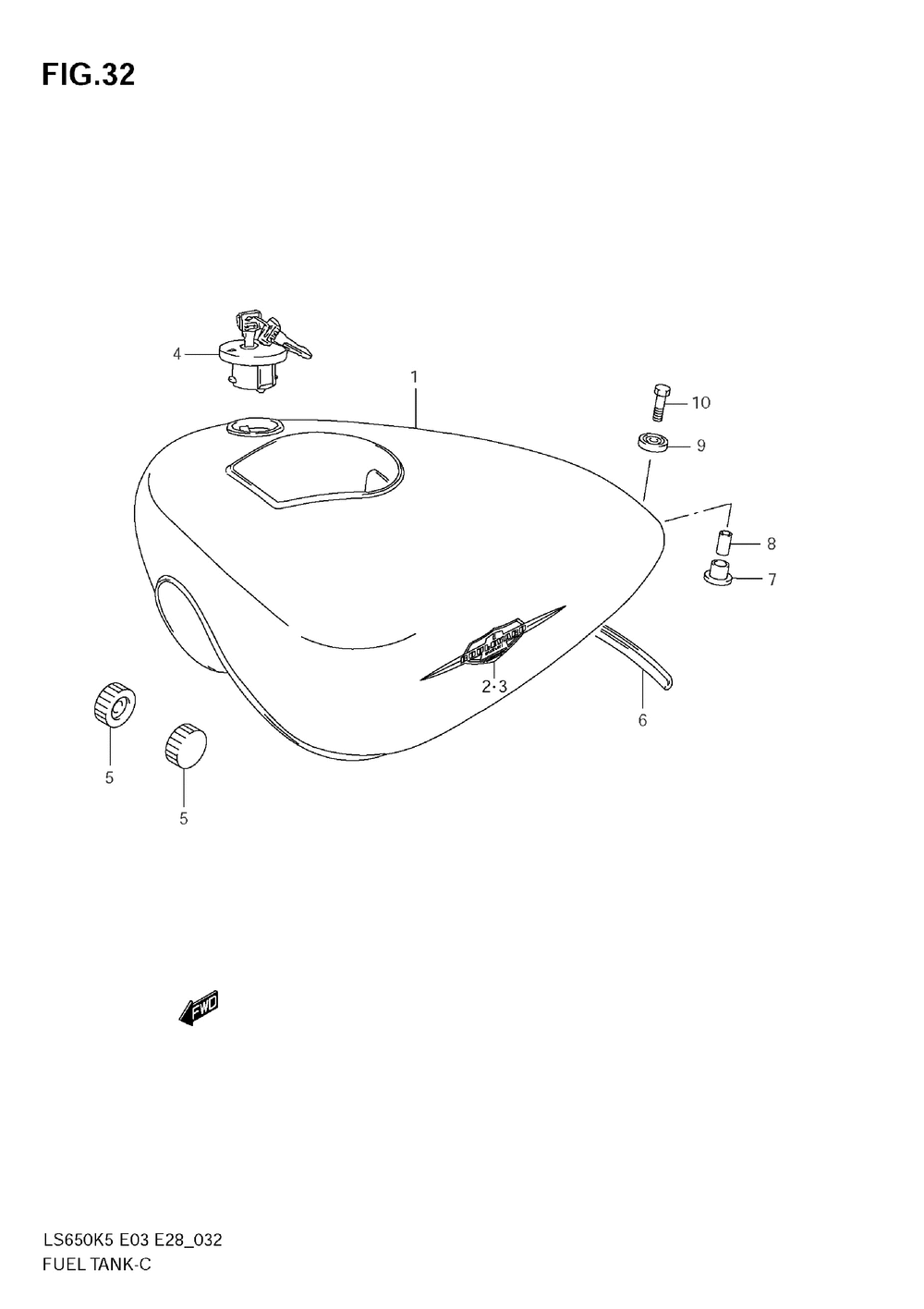

Топливный бак (model k5/k6/k7/k8)

Suzuki LS650 Boulevard S40

oem код

название

цена

1-1

44100-24C11-YAY

Tank Assy, Fuel(

1-2

44100-24C11-YC3

Tank Assy, Fuel( (model K5)

1-3

44100-24C10-YDV

Tank Assy, Fuel (silver) (model K6)

1-4

44100-24C11-YHL

Tank Assy, Fuel( (model K6/k8)

1-6

44100-24C11-YBA

Tank Assy, Fuel( (model K7)

1-7

44100-24C11-YMD

Tank Assy, Fuel (model K8)

1-8

44100-24C21-YAY

Tank Assy, Fuel( (e33)

1-9

44100-24C20-YC3

Tank Assy, Fuel (white) (model K5 E33)

1-10

44100-24C20-YDV

Tank Assy, Fuel (silver) (model K6 E33)

1-13

44100-24C20-YBA

Tank Assy, Fuel (model K7 E33)

68111-24C01

Emblem, Fuel Tan

68121-24C01

Emblem, Fuel Tan

4-1

44200-24830

Cap Set, Fuel Tank

4-2

44200-24820

Cap Set, Fuel Tank (e33)

Подушка

Molding, Rear

Cushion, Lower

Проставка

Подушка

Bolt ( Refer To Fig.32a(e- 9) For Model K9 )

1-3

44100-24C11-YDV

Tank Assy, Fuel( (model K6)

1-5

44100-24C11-YC3

Tank Assy, Fuel( (model K7)

1-12

44100-24C20-YC3

Tank Assy, Fuel (model K7 E33)
