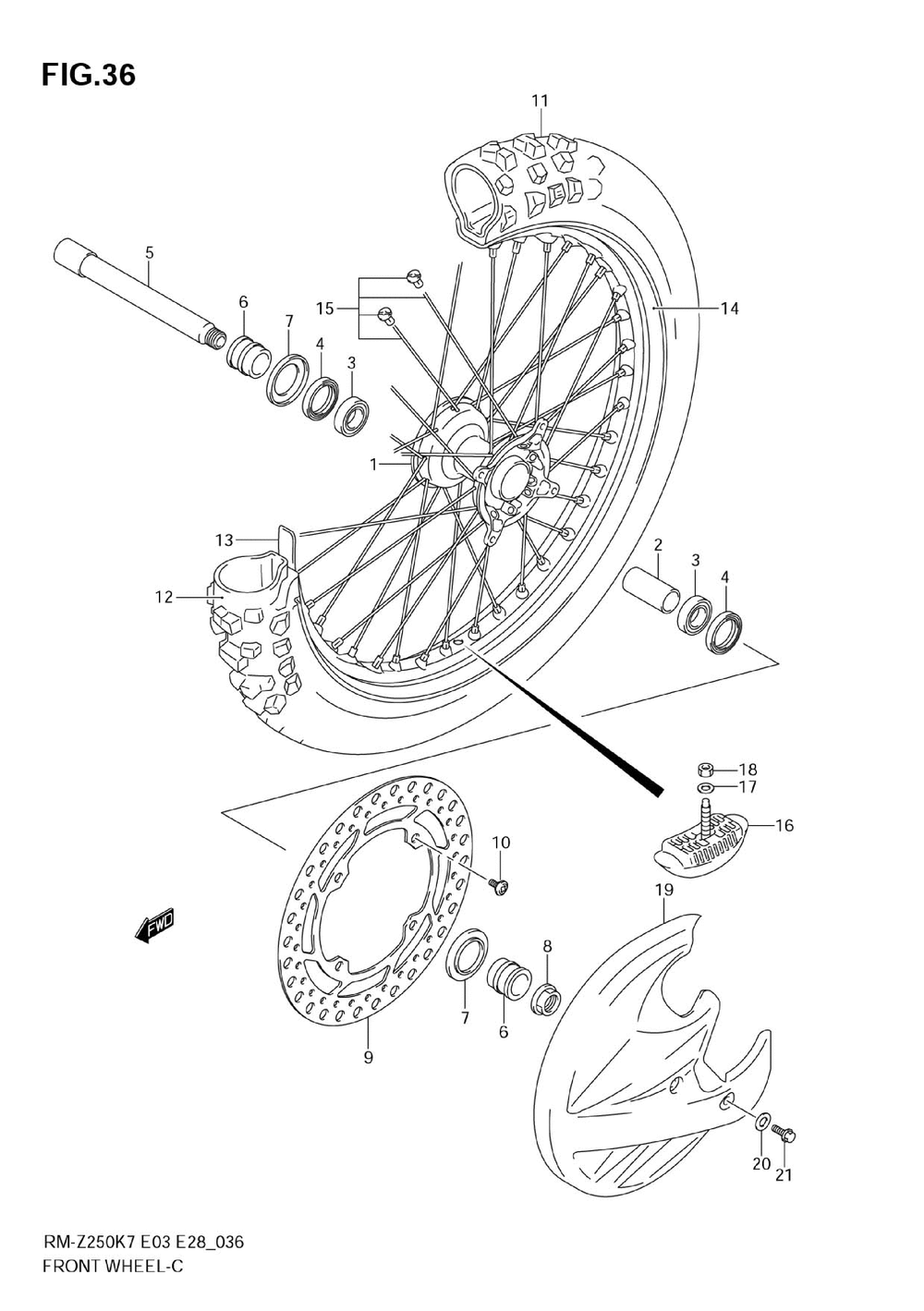

Front wheel (model k7)

Suzuki RM-Z250

Front wheel (model k7)

#

oem код

название

цена

1

Hub, Front Wheel ( )

Hub, Front Wheel ( )

2

Spacer, Front Hub ( (20.5x27.3x50) )

Spacer, Front Hub ( (20.5x27.3x50) )

3

Bearing ( )

Bearing ( )

4

Seal, Front Hub ( )

Seal, Front Hub ( )

5

Axle, Front ( )

Axle, Front ( )

6

Spacer, Axle (l:41) ( )

Spacer, Axle (l:41) ( )

7

Cover, Front Axle Spacer ( )

Cover, Front Axle Spacer ( )

8

Nut ( )

Nut ( )

9

Disc, Front Brake ( )

Disc, Front Brake ( )

10

Screw ( )

Screw ( )

11

Tire, Front (80/100-21) ( (dunlop) )

Tire, Front (80/100-21) ( (dunlop) )

12

Tube Assy, Wheel Inner ( )

Tube Assy, Wheel Inner ( )

13

Protector, Inner Tube ( )

Protector, Inner Tube ( )

14

Rim, Front Wheel (1.60x21) ( )

Rim, Front Wheel (1.60x21) ( )

15

Spoke Set, Front Wheel ( )

Spoke Set, Front Wheel ( )

16

Stopper, Bead ( )

Stopper, Bead ( )

17

Washer, Seat Damper Upper ( )

Washer, Seat Damper Upper ( )

18

Nut ( )

Nut ( )

19

59231-36E30-YU1

Cover, Front Brake Disc (opt )

Cover, Front Brake Disc (opt )

20

Washer, Front Brake Disc Cove (opt )

Washer, Front Brake Disc Cove (opt )

21

Bolt (opt Refer To Fig.36a(f- 8) For Model K8/k9 )

Bolt (opt Refer To Fig.36a(f- 8) For Model K8/k9 )
