Propeller shaft/final drive gear Оригинальные запчасти для мотоциклов Suzuki VZR1800 Boulevard M109R (2006)

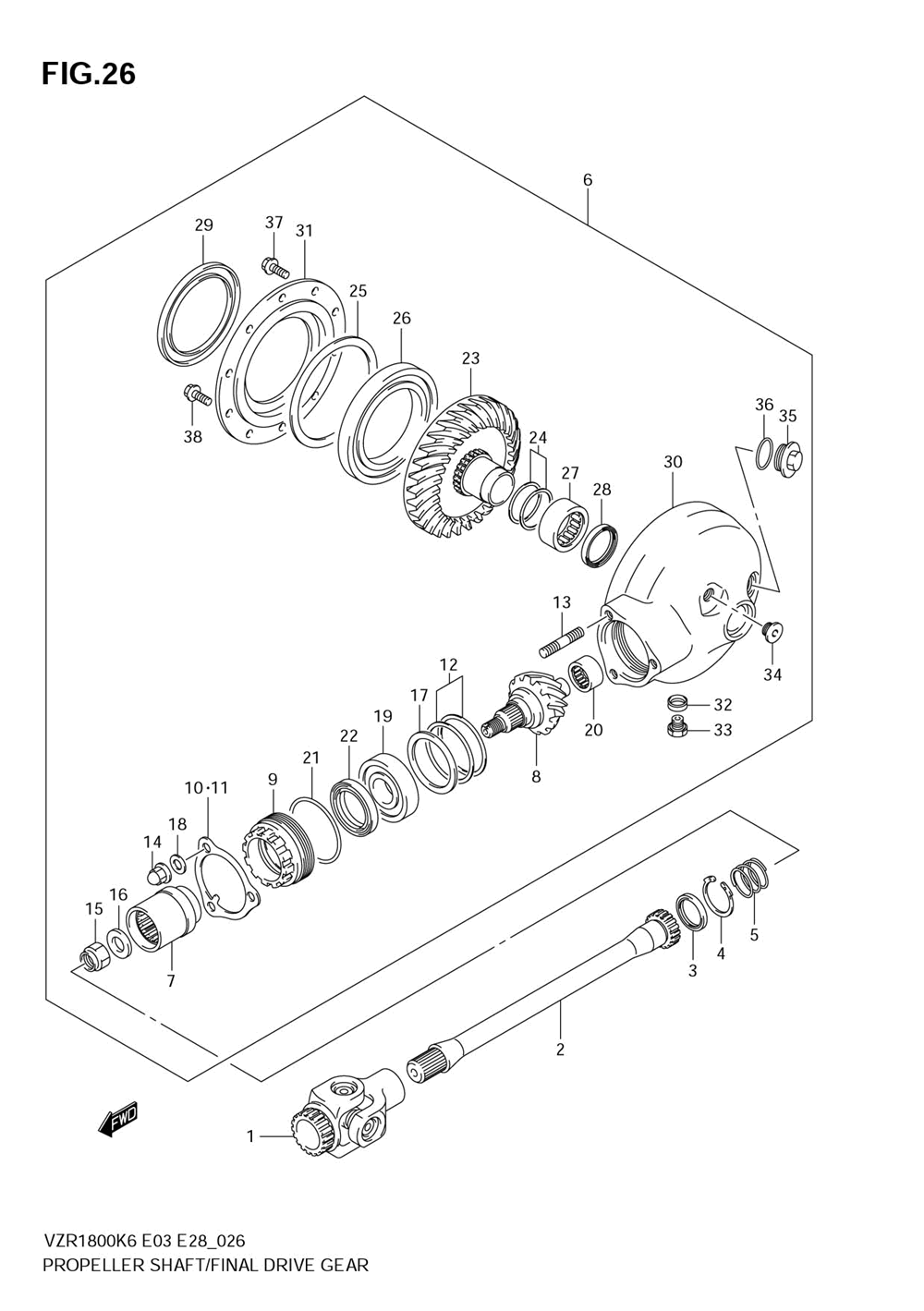

Propeller shaft/final drive gear

Suzuki VZR1800 Boulevard M109R

oem код

название

цена

Yoke, Universal

Вал гребного винта

Seal, Coupling Oil

.circlip

Spring, Propeller Shaft

27300-48811

Gear & Case Set

27172-24A00

.coupling, Final Drive Gear

27311-24A03

.gear, Final Drive Bevel

27312-24A02

.stopper, Final Drive Be

27313-38B00

.plate, Bearing Stopper

27313-38B10

.plate, Bearing Stopper

27445-24810

.shim Set, Final Drive Gear

09108-10106-A05

.bolt, Final Gear Case Stud

09159-10026

Гайка

09159-16003-A05

.nut, Final Drive Gear

09160-16029

Washer, Drive Shaft

09160-54001

.washer, Final Drive Bearing

09164-10008

Шайба

09262-28023

.bearing, Final Drive Gear

09263-20062

Bearing, Idle Shaft

09280-64003

O Ring (d:3.1 Id:63.9)

09283-47002

.seal, Final Drive Oil

27320-48G00

.gear, Final Driven

27326-48811

.shim Set, Final Driven, L (t:0.95/1.05/1.10/1.20/1.25/1.35/1.40/1.45/1.50)

27327-38810

.shim Set, Final Drive, R

09262-85001

.bearing, Final Driven Gear,

09263-40016

.bearing, Final Driven Gear,

09283-38026

.seal, Final Driven, L

09289-85001

.seal, Final Driven, R

27450-48G00

.case, Final Gear

27461-38B00

.case, Final Gear Bearing

09168-14004

.gasket (14.1x18x1.5)

09247-14002-A05

.plug, Gear Oil Drain

09248-16012-A05

.plug, Final Gear Case

09259-30007

.plug, Gear Oil Filler

09280-26006

O Ring (d:3.1, Id:26.4)

01550-0825A

Болт

01550-1025A

Bolt, Drive Gear
