Сцепление Оригинальные запчасти для мотоциклов Suzuki GSX1300R Hayabusa (2008)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

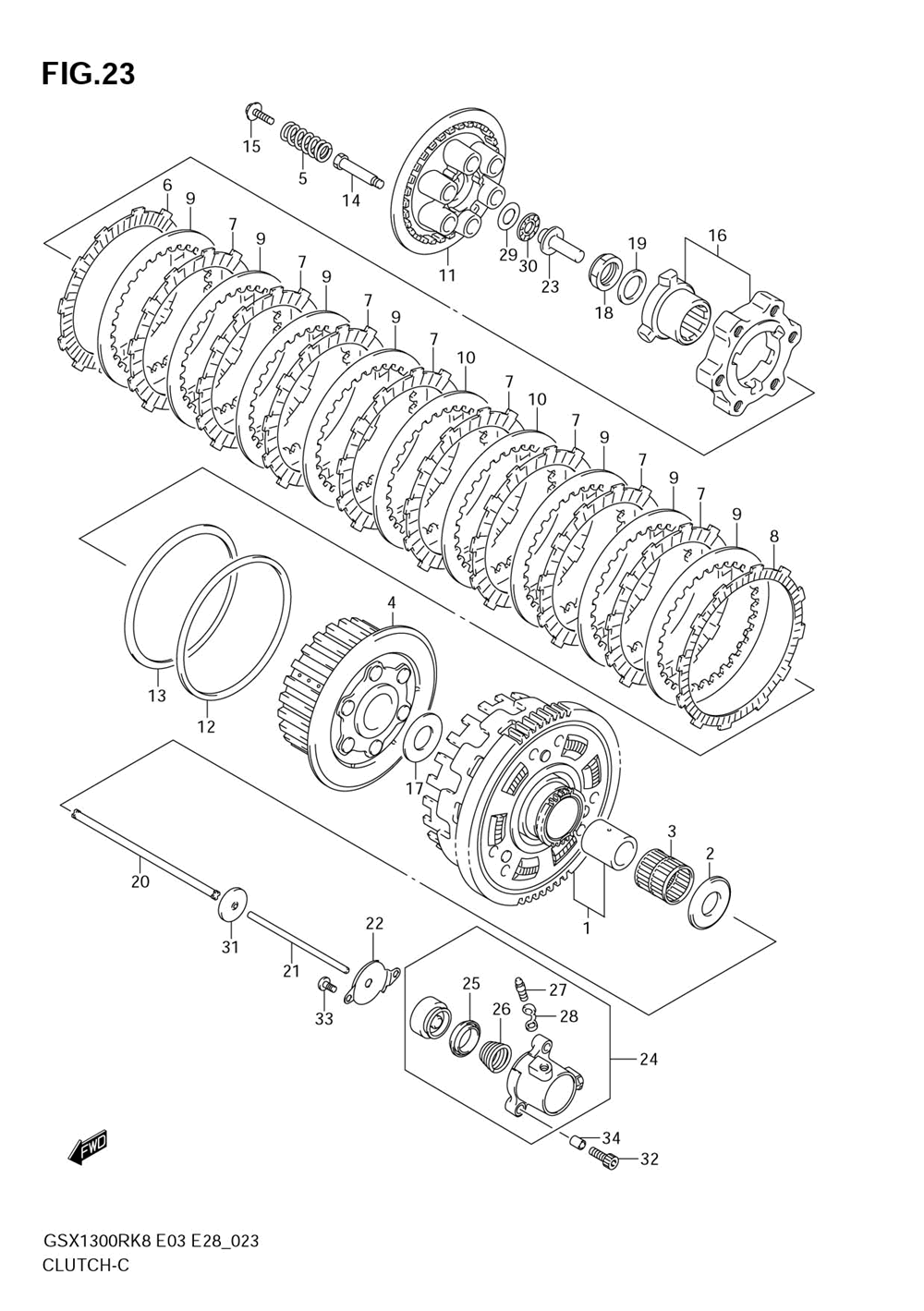

Сцепление

Suzuki GSX1300R Hayabusa

Сцепление

#

oem код

название

цена

1

Gear Assy, Prima (nt:83)

Gear Assy, Prima (nt:83)

2

Washer (25x54x2.4) (25x54x2.4)

Washer (25x54x2.4) (25x54x2.4)

3

Bearing (35x40x39.8) (35x40x39.8)

Bearing (35x40x39.8) (35x40x39.8)

4

Hub, Clutch Sleeve ()

Hub, Clutch Sleeve ()

5

Spring, Clutch ()

Spring, Clutch ()

6

Plate, Clutch Drive, No.2 (t:3.8)

Plate, Clutch Drive, No.2 (t:3.8)

7

Plate, Clutch Drive, No.1 (t:3.0)

Plate, Clutch Drive, No.1 (t:3.0)

8

Plate, Clutch Drive No.3 (t:3.8)

Plate, Clutch Drive No.3 (t:3.8)

9

Plate, Clutch Driven No.1 (t:2.0)

Plate, Clutch Driven No.1 (t:2.0)

10

Plate, Clutch Driven No.2 (t:2.3)

Plate, Clutch Driven No.2 (t:2.3)

11

Disk, Clutch Pressure ()

Disk, Clutch Pressure ()

12

Seat, Wave Washer ()

Seat, Wave Washer ()

13

Washer, Clutch Plate Wave ()

Washer, Clutch Plate Wave ()

14

Bolt, Clutch Spr ()

Bolt, Clutch Spr ()

15

Bolt, Clutch Spr ()

Bolt, Clutch Spr ()

16

Cam Set, Clutch ()

Cam Set, Clutch ()

17

Washer (25x50x25) (25x50x2.5)

Washer (25x50x25) (25x50x2.5)

18

Nut, Clutch Sleeve Hub ()

Nut, Clutch Sleeve Hub ()

19

Washer (24.2x35x2) ()

Washer (24.2x35x2) ()

20

Rod, Clutch Push, Rh ()

Rod, Clutch Push, Rh ()

21

Rod, Clutch Push, Lh ()

Rod, Clutch Push, Lh ()

22

Cover, Cylinder ()

Cover, Cylinder ()

23

Piece, Clutch Push ()

Piece, Clutch Push ()

24

Cylinder, Clutch ()

Cylinder, Clutch ()

25

.cup ()

.cup ()

26

Пружина

Пружина

27

.bleeder ()

.bleeder ()

28

.cap, Bleeder ()

.cap, Bleeder ()

29

Washer (15.5x28x1) (15.5x28x1.0)

Washer (15.5x28x1) (15.5x28x1.0)

30

Bearing (15x28x2) (15x28x2.0)

Bearing (15x28x2) (15x28x2.0)

31

Oil Seal (6x34x5.5) (6x34x5.5)

Oil Seal (6x34x5.5) (6x34x5.5)

32

Винт

Винт

33

Screw ()

Screw ()

34

Pin, Cl Rlse Cyl ()

Pin, Cl Rlse Cyl ()
