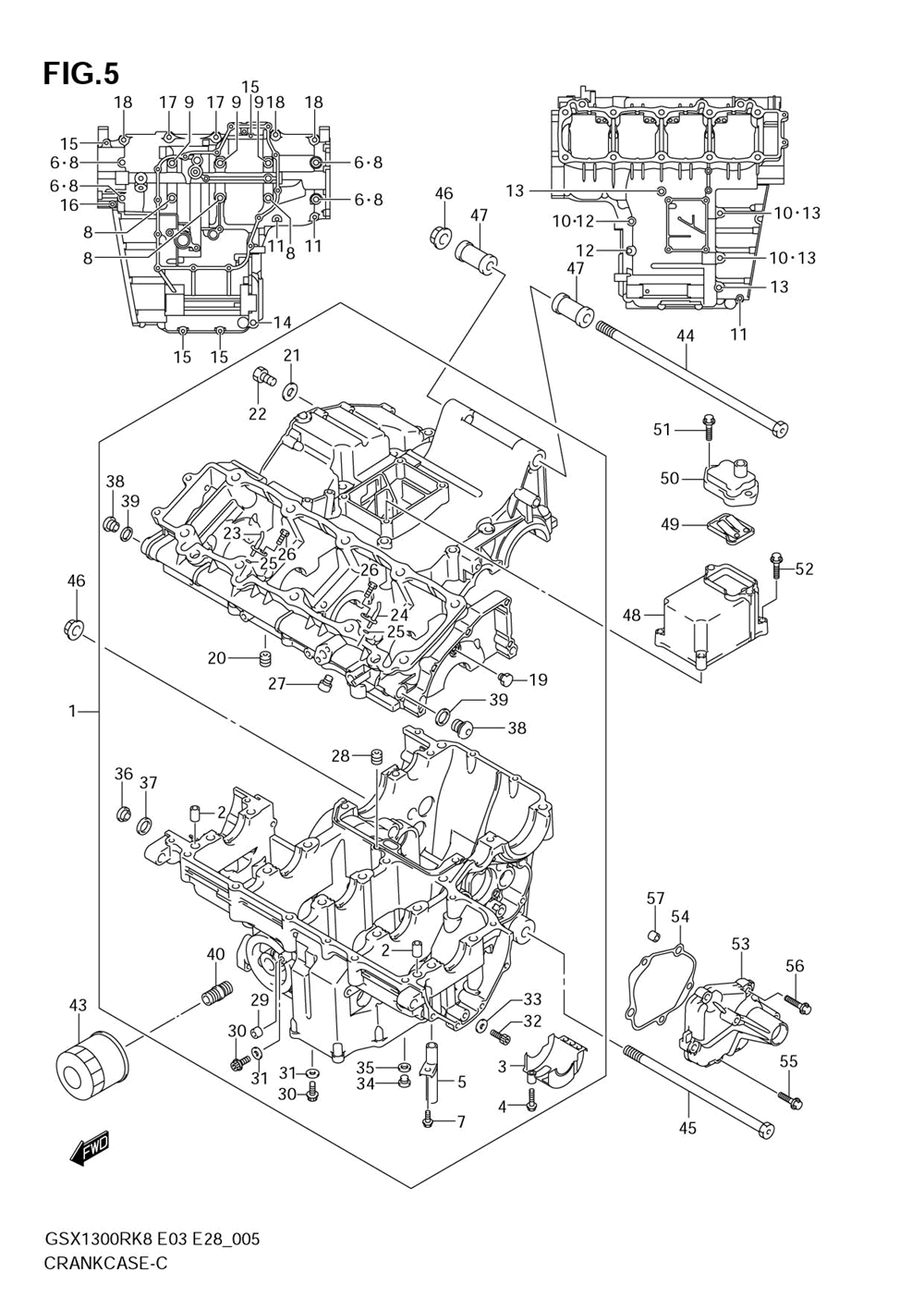

Картер Оригинальные запчасти для мотоциклов Suzuki GSX1300R Hayabusa (2008)

Картер

Suzuki GSX1300R Hayabusa

oem код

название

цена

11301-24861

Crankcase Assy ()

11319-33E50

Pin, Rr Swgarm Joint ()

11323-24F10

Separator, Oil ()

01547-0625A

Bolt, Belt Cooling Duct ()

11328-24F00

.union, Breather Oil ()

09168-10031

.gasket, Crankcase Bolt ()

01547-0612A

Bolt, Push Rod Guide ()

09103-09008

.bolt (9x95) ()

09103-09010

.bolt (9x115) ()

09168-08016

Gasket (8.2x14x1.0) ()

01547-0650A

Болт

01550-0865A

Bolt, Oil Pump (l) ()

Болт

Болт

Болт

Болт

.bolt (8x50) ()

.bolt (8x60) ()

.jet, Magneto Cooling ()

09493-20012

Jet Oil Gallery ()

09168-06023

Washer, Oil Gallery Exhaust ()

07120-0612B

Болт

11390-34E00

.jet, Piston Cooling Rh ()

11390-34E10

.jet, Piston Cooling Lh ()

09280-04004

O Ring, Oil Gallery Jet ()

Болт

Bolt (6x10) ()

.jet, T/m Oil 180 ()

.jet, Oil Gallery ()

Plug, Oil Gallery ()

Gasket, Oil Gallery Plug ()

09248-16012

Plug, T/m Breather ()

09168-16002

Gasket (16x22x2.0) ()

09248-14005

Plug, Oil Gallery ()

09168-14004

.gasket (14.1x18x1.5) ()

16591-06B01

Union, Oil Filter Stand ()

12228-24F00-0D0

.bearing, Thrust Lh (green) (rhsee Illustration Onfig.8)

42-1

12228-24F00-0A0

.bearing, Thrust Lh (red) (lhsee Illustration Onfig.8)

42-2

12228-24F00-0B0

.bearing, Thrust Lh (black) ()

42-3

12228-24F00-0C0

.bearing, Thrust Lh (blue) ()

42-5

12228-24F00-0E0

.bearing, Thrust Lh (yellow) ()

42-6

12228-24F00-0F0

.bearing, Thrust Lh (white) ()

16510-03G00-X07

Filter, Engine Oil ()

Bolt (12x320) ()

Bolt (12x240) ()

Гайка

Spacer, Engine Mount ()

11331-15H00

Cover, Breather ()

13150-01H00

Valve Assy, Breather Reed ()

11372-21H00

Cover, Breather ()

01547-0620A

Болт

01547-0630A

Bolt, Magneto Cover ()

11383-15H00

Cover, Gear Shif ()

11485-24F00

Gasket, Gear Shift Cover ()

01547-0635A

Bolt, Crankcase (6x35) ()

04211-09149

Dowel Pin ()
