Обтекатель Оригинальные запчасти для мотоциклов Suzuki GSX650F (2008)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

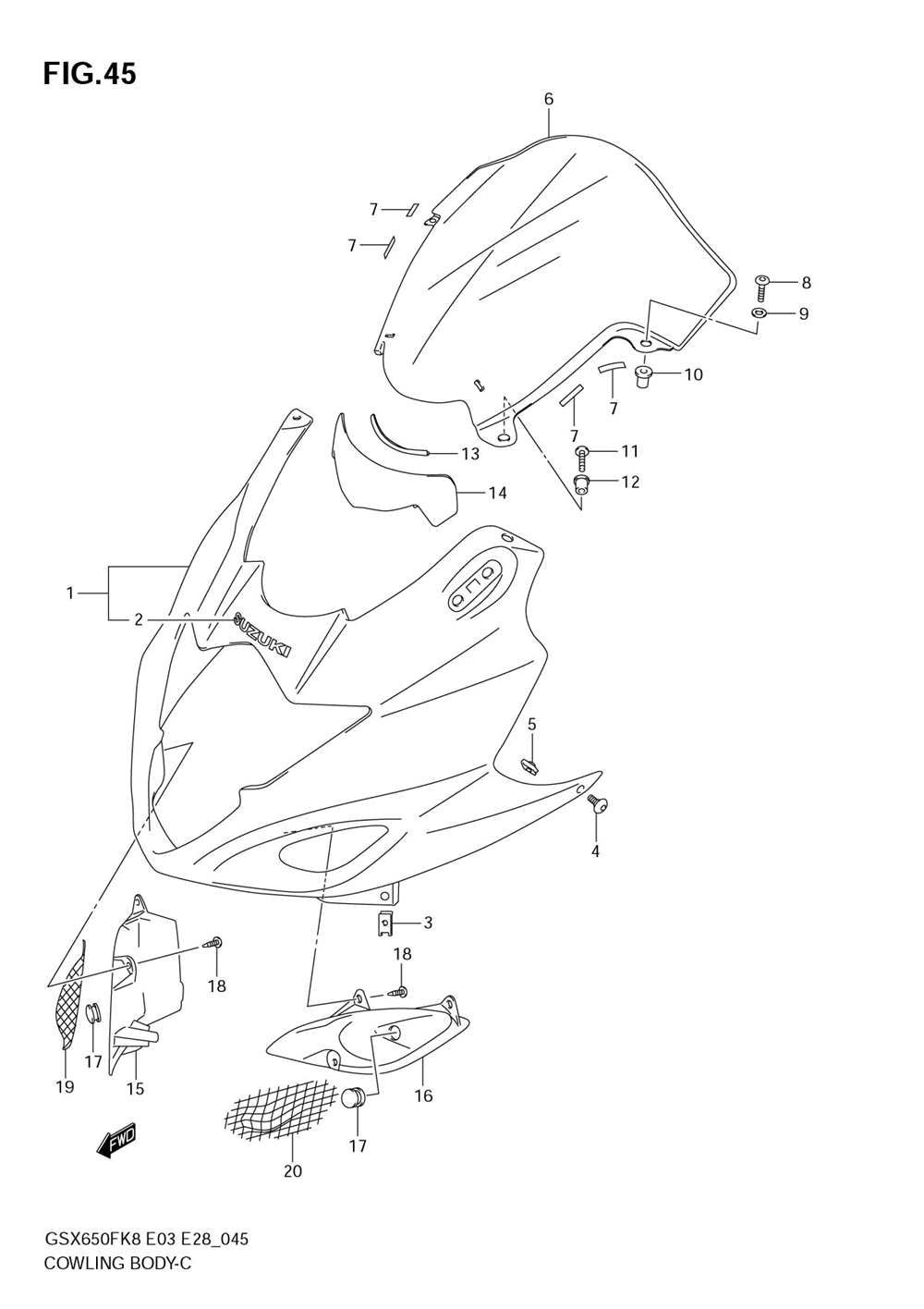

Обтекатель

Suzuki GSX650F

Обтекатель

#

oem код

название

цена

1-1

94410-17H00-YAY

Body Comp, Cowli (for Yay)

Body Comp, Cowli (for Yay)

1-2

94410-17H00-YKY

Body Comp, Cowli (for Cwh)

Body Comp, Cowli (for Cwh)

1-3

94410-17H00-4CX

Body Comp, Cowli (for Egr)

Body Comp, Cowli (for Egr)

2-1

68641-19F00-YU8

.emblem (gray) (for Yay)

.emblem (gray) (for Yay)

2-2

68641-19F00-YBD

Emblem, "suzuki" (for Yky)

Emblem, "suzuki" (for Yky)

2-3

68641-19F00-YD8

.emblem, Rear (silver) (for 4cx)

.emblem, Rear (silver) (for 4cx)

3

Гайка

Гайка

4

Screw, Upper ()

Screw, Upper ()

5

Гайка

Гайка

6

Windscreen ()

Windscreen ()

8

Screw (5x8) ()

Screw (5x8) ()

9

Washer ()

Washer ()

10

.nut, Air Intk Inner Guide ()

.nut, Air Intk Inner Guide ()

11

Screw ()

Screw ()

12

Гайка

Гайка

13

Cushion, Windscr ()

Cushion, Windscr ()

14

Cover, Windscree ()

Cover, Windscree ()

15

Cover, Intake, R ()

Cover, Intake, R ()

16

Cover, Intake, L ()

Cover, Intake, L ()

17

Cap, Tank Rail ()

Cap, Tank Rail ()

18

()

()

19

Net, Intake, R ()

Net, Intake, R ()

20

Net, Intake, L ()

Net, Intake, L ()
