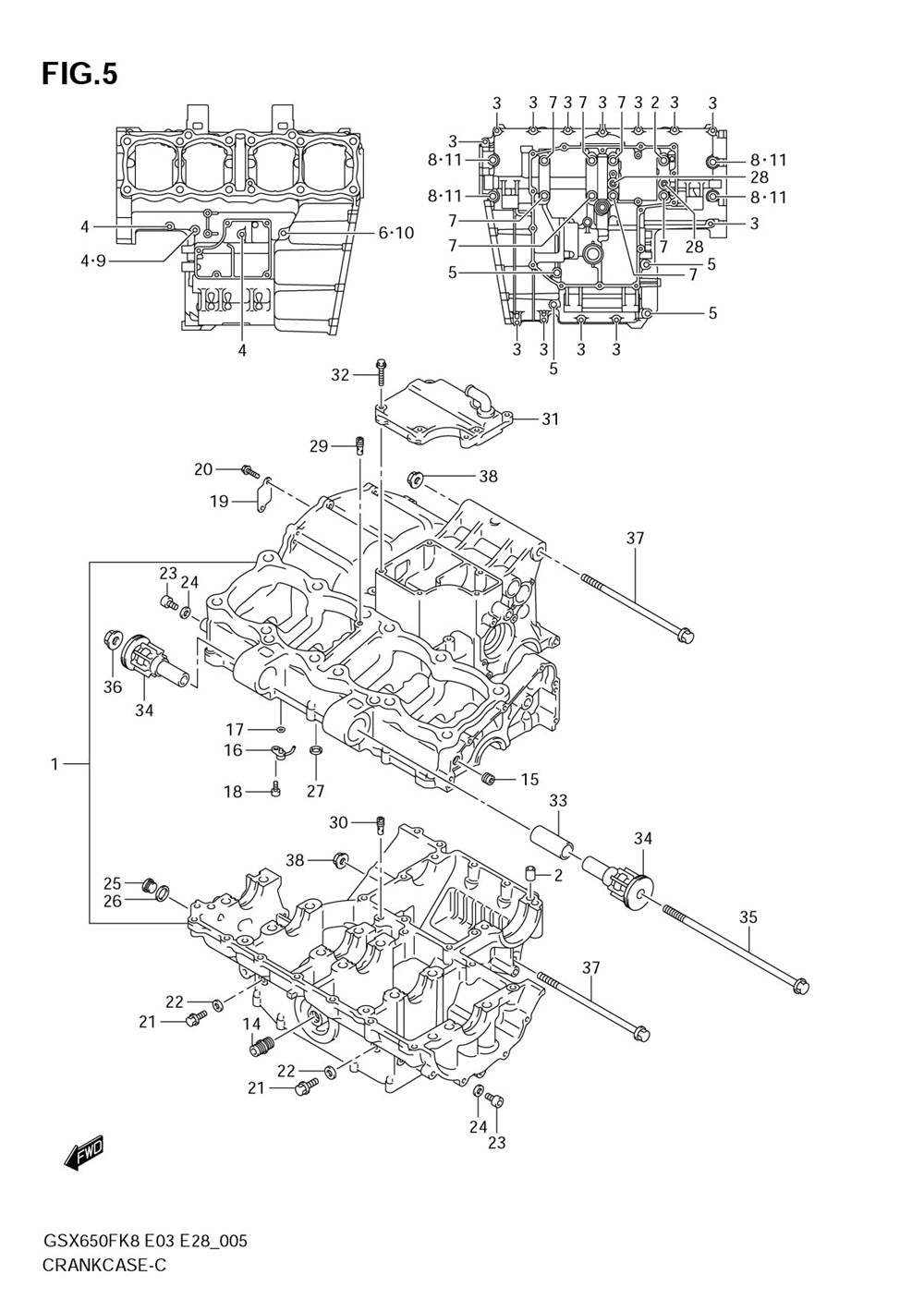

Картер

Suzuki GSX650F

Картер

#

oem код

название

цена

1

Crankcase Set ()

Crankcase Set ()

2

Pin, Rr Swgarm Joint ()

Pin, Rr Swgarm Joint ()

3

Болт

Болт

4

.bolt ()

.bolt ()

7

.bolt (9x135) ()

.bolt (9x135) ()

8

.bolt (9x95) ()

.bolt (9x95) ()

9

Washer, Oil Gallery Exhaust ()

Washer, Oil Gallery Exhaust ()

10

Gasket (8.2x14x1.0) ()

Gasket (8.2x14x1.0) ()

11

.gasket, Crankcase Bolt ()

.gasket, Crankcase Bolt ()

12

12228-17E00-0D0

.bearing, Thrust Lh (green) (see Illus Fig.8)

.bearing, Thrust Lh (green) (see Illus Fig.8)

13-1

12228-17E00-0A0

.bearing, Thrust Lh (red) (see Illus Fig.8)

.bearing, Thrust Lh (red) (see Illus Fig.8)

13-2

12228-17E00-0B0

.bearing, Thrust Lh (black) ()

.bearing, Thrust Lh (black) ()

13-3

12228-17E00-0C0

.bearing, Thrust Lh (blue) ()

.bearing, Thrust Lh (blue) ()

13-5

12228-17E00-0E0

.bearing, Thrust Lh (yellow) ()

.bearing, Thrust Lh (yellow) ()

13-6

12228-17E00-0F0

.bearing, Thrust Lh (white) ()

.bearing, Thrust Lh (white) ()

14

Union, Oil Filter Stand ()

Union, Oil Filter Stand ()

15

.jet, Oil Gallery 3.6 ()

.jet, Oil Gallery 3.6 ()

16

Jet Comp, Piston ()

Jet Comp, Piston ()

17

O Ring, Oil Gallery Jet ()

O Ring, Oil Gallery Jet ()

18

Болт

Болт

19

Plate, Oil Separ ()

Plate, Oil Separ ()

20

Bolt, Push Rod Guide ()

Bolt, Push Rod Guide ()

21

Болт

Болт

22

Gasket, Tensioner Adjuster ()

Gasket, Tensioner Adjuster ()

23

Plug, Oil Gallery ()

Plug, Oil Gallery ()

25

Plug, T/m Breather ()

Plug, T/m Breather ()

26

Gasket (16x22x2.0) ()

Gasket (16x22x2.0) ()

27

O Ring ()

O Ring ()

28

O Ring, Crankcase ()

O Ring, Crankcase ()

29

Jet, Head ()

Jet, Head ()

30

.jet, T/m Oil 180 ()

.jet, T/m Oil 180 ()

31

Cover Comp, Brea ()

Cover Comp, Brea ()

32

Винт

Винт

33

Spacer ()

Spacer ()

34

.bush, Engine Mtg ()

.bush, Engine Mtg ()

35

09103-10041-A05

Bolt (10x215) ()

Bolt (10x215) ()

36

Nut, Upper ()

Nut, Upper ()

37

()

()

38

Гайка

Гайка
