ТРАНСМИССИЯ Оригинальные запчасти для мотоциклов Suzuki GSX650F (2008)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

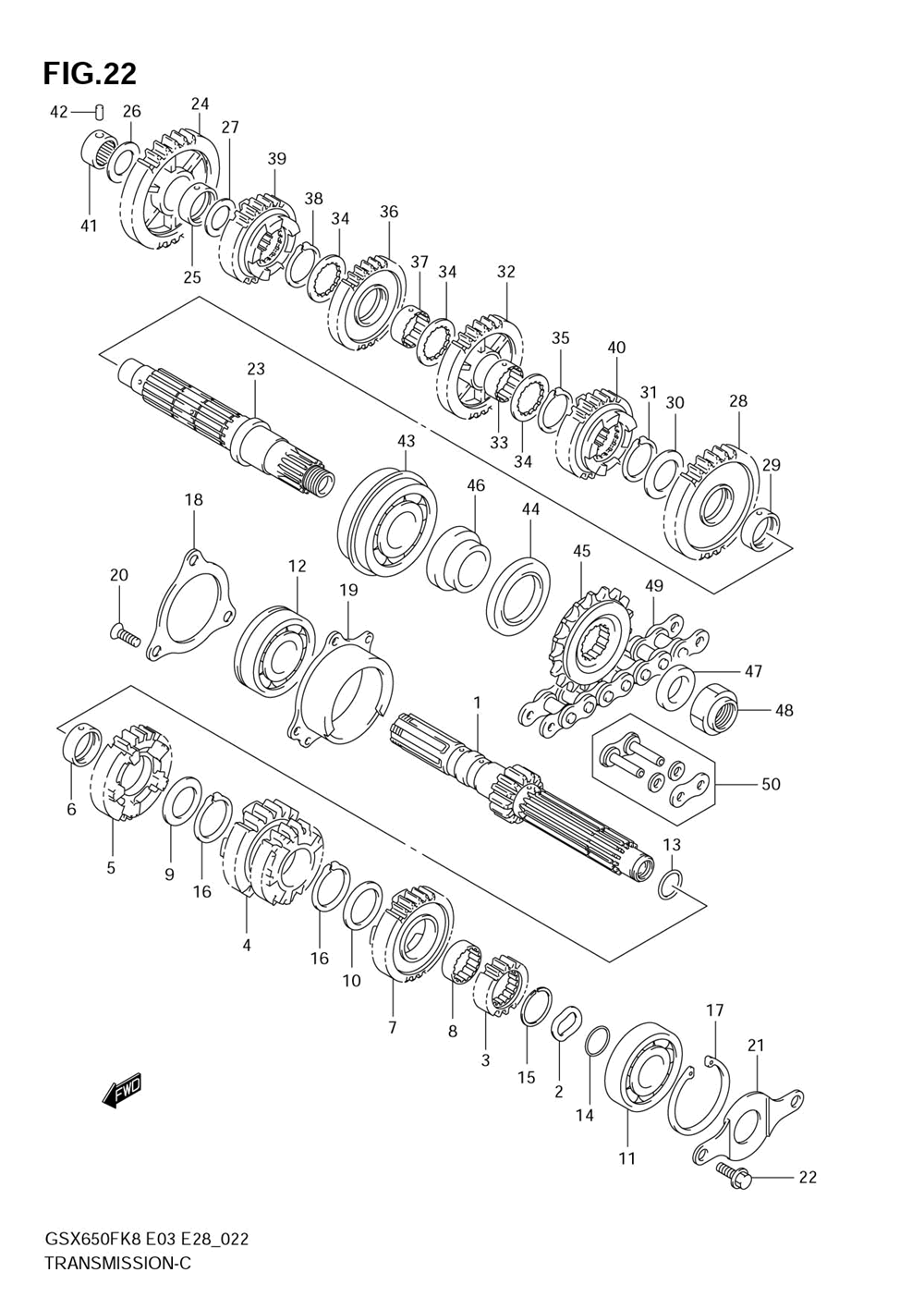

ТРАНСМИССИЯ

Suzuki GSX650F

ТРАНСМИССИЯ

#

oem код

название

цена

1

Shaft, Cntr ()

Shaft, Cntr ()

2

Washer, Counter ()

Washer, Counter ()

3

Gear,2nd Drive, ()

Gear,2nd Drive, ()

4

Gear, 3rd & 4th (nt:20/22)

Gear, 3rd & 4th (nt:20/22)

5

Gear, 5th Drive ()

Gear, 5th Drive ()

6

Bush, 5th Drive Gear ()

Bush, 5th Drive Gear ()

7

Gear, 6th Drive ()

Gear, 6th Drive ()

8

Bush, 6th Drive ()

Bush, 6th Drive ()

9

Washer, 2nd Driven Gear (27x36x1.0)

Washer, 2nd Driven Gear (27x36x1.0)

10

Washer, 6th Drive ()

Washer, 6th Drive ()

11

Bearing, Cntr, L (20x52x15)

Bearing, Cntr, L (20x52x15)

12

Bearing (25x62x17) (25x62x17)

Bearing (25x62x17) (25x62x17)

13

O Ring, Center Shaft (d:1.9,id:16.6)

O Ring, Center Shaft (d:1.9,id:16.6)

14

O Ring, Cntr Shaft (d:1.0,id:19.5)

O Ring, Cntr Shaft (d:1.0,id:19.5)

15

Circlip, 2nd Drive ()

Circlip, 2nd Drive ()

16

Circlip, 5th & 6th Drive ()

Circlip, 5th & 6th Drive ()

17

Circlip ()

Circlip ()

18

Retainer, Cntr S ()

Retainer, Cntr S ()

19

Housing, Cntr Sh ()

Housing, Cntr Sh ()

20

Screw, Housing (6x20) ()

Screw, Housing (6x20) ()

21

Retainer, Cl Pus ()

Retainer, Cl Pus ()

22

Screw, Push (6x12) ()

Screw, Push (6x12) ()

24

Gear, 1st Driven ()

Gear, 1st Driven ()

25

Bush, 1st Driven ()

Bush, 1st Driven ()

26

Shim (t:1.0) (20x34x1.0)

Shim (t:1.0) (20x34x1.0)

27

Washer, 1st Driven Lh (22x34x1.0)

Washer, 1st Driven Lh (22x34x1.0)

28

Gear, 2nd Driven ()

Gear, 2nd Driven ()

29

Bush, 2nd Driven ()

Bush, 2nd Driven ()

32

Gear, 3rd Driven ()

Gear, 3rd Driven ()

33

Bush, 4th Driven Gear ()

Bush, 4th Driven Gear ()

34

Washer, 3rd Driven Gear ()

Washer, 3rd Driven Gear ()

36

Gear, 4th Driven ()

Gear, 4th Driven ()

39

Gear, 5th Driven ()

Gear, 5th Driven ()

40

Gear, 6th Driven ()

Gear, 6th Driven ()

41

Bearing, Drive Shaft, R (20x34x3.5)

Bearing, Drive Shaft, R (20x34x3.5)

42

Pin, Drive Shaft, R ()

Pin, Drive Shaft, R ()

43

Bearing, Drive Shaft Lh (30x62x23.8)

Bearing, Drive Shaft Lh (30x62x23.8)

44

Seal, Drive Shaf ()

Seal, Drive Shaf ()

45

Sprocket, Engine (nt:15) ()

Sprocket, Engine (nt:15) ()

46

Spacer, Engine S ()

Spacer, Engine S ()

47

Spacer, Engine S ()

Spacer, Engine S ()

48

Nut, Engine Sprocket ()

Nut, Engine Sprocket ()

49

27600-06G00-118

Chain Assy, Driv ()

Chain Assy, Driv ()

50

Joint Set, Chain (opt)

Joint Set, Chain (opt)
