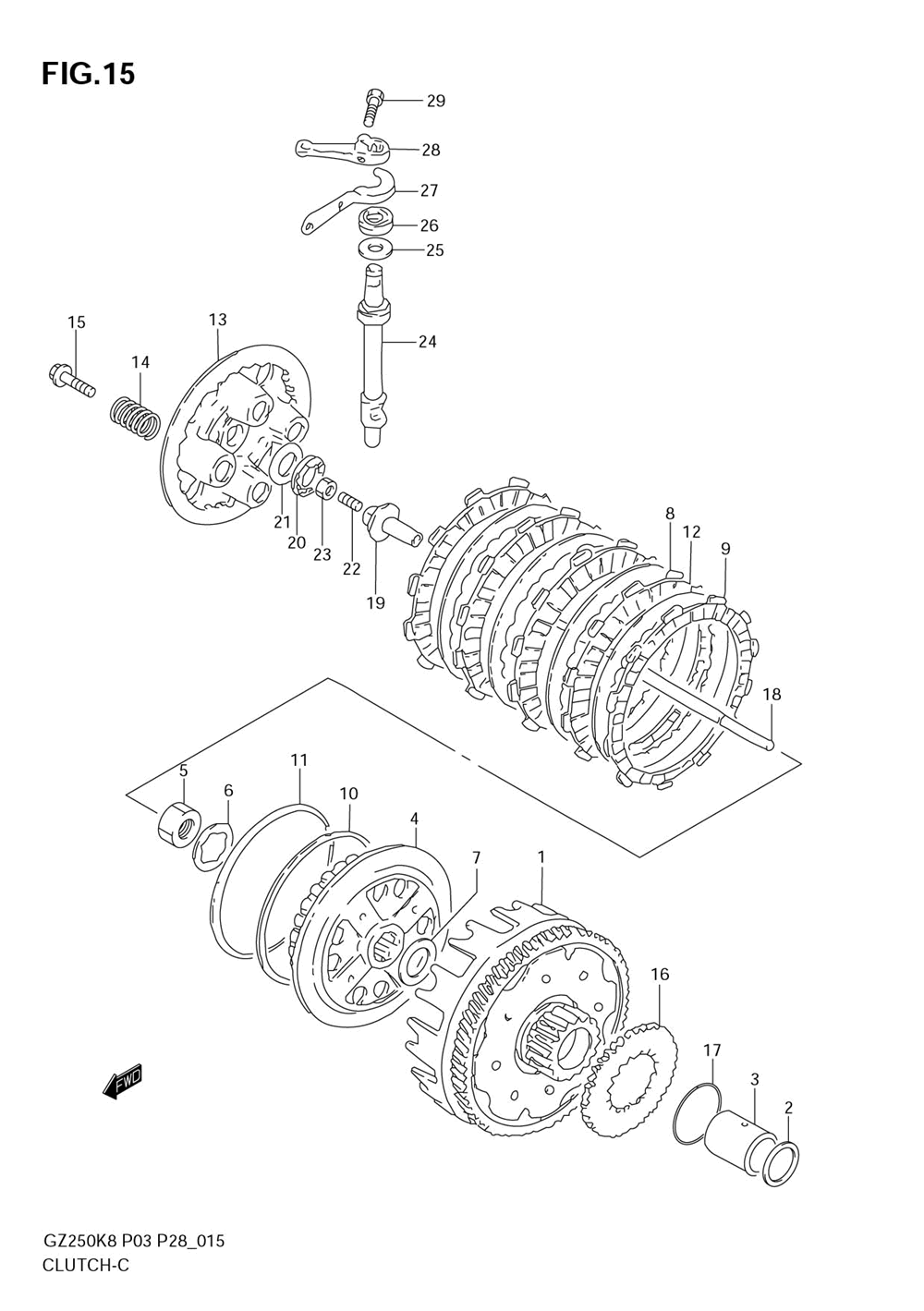

Сцепление

Suzuki GZ250

Сцепление

#

oem код

название

цена

1

Gear Assy, Primary Driven (nt:68/16)

Gear Assy, Primary Driven (nt:68/16)

2

Thrust Washer ()

Thrust Washer ()

3

Spacer (22x28x37.5) ()

Spacer (22x28x37.5) ()

4

Hub, Clutch Sleeve ()

Hub, Clutch Sleeve ()

5

Гайка

Гайка

6

Lock Washer ()

Lock Washer ()

8

Plate, Clutch Drive ()

Plate, Clutch Drive ()

9

Plate, Clutch Drive No.2 ()

Plate, Clutch Drive No.2 ()

10

Seat, Wave Washer ()

Seat, Wave Washer ()

11

Washer (110.5x119x0.9) ()

Washer (110.5x119x0.9) ()

12

Plate, Driven ()

Plate, Driven ()

13

Disc, Pressure ()

Disc, Pressure ()

14

Spring, Clutch ()

Spring, Clutch ()

15

Болт

Болт

16

Gear, Engine Oil Pump Drive (nt:38)

Gear, Engine Oil Pump Drive (nt:38)

17

Circlip ()

Circlip ()

18

Rod, Clutch Push ()

Rod, Clutch Push ()

19

Piece, Clutch Push ()

Piece, Clutch Push ()

20

Bearing (15x28x2) ()

Bearing (15x28x2) ()

21

Washer (15.5x28x1) ()

Washer (15.5x28x1) ()

22

Винт

Винт

23

Nut (6x3.6) ()

Nut (6x3.6) ()

24

Cam Shaft, Clutch Release ()

Cam Shaft, Clutch Release ()

25

Washer (14.5x22x1) ()

Washer (14.5x22x1) ()

26

Oil Seal (12x22x9) ()

Oil Seal (12x22x9) ()

27

Plate, Oil Seal ()

Plate, Oil Seal ()

28

Arm, Clutch Release ()

Arm, Clutch Release ()

29

Болт

Болт
