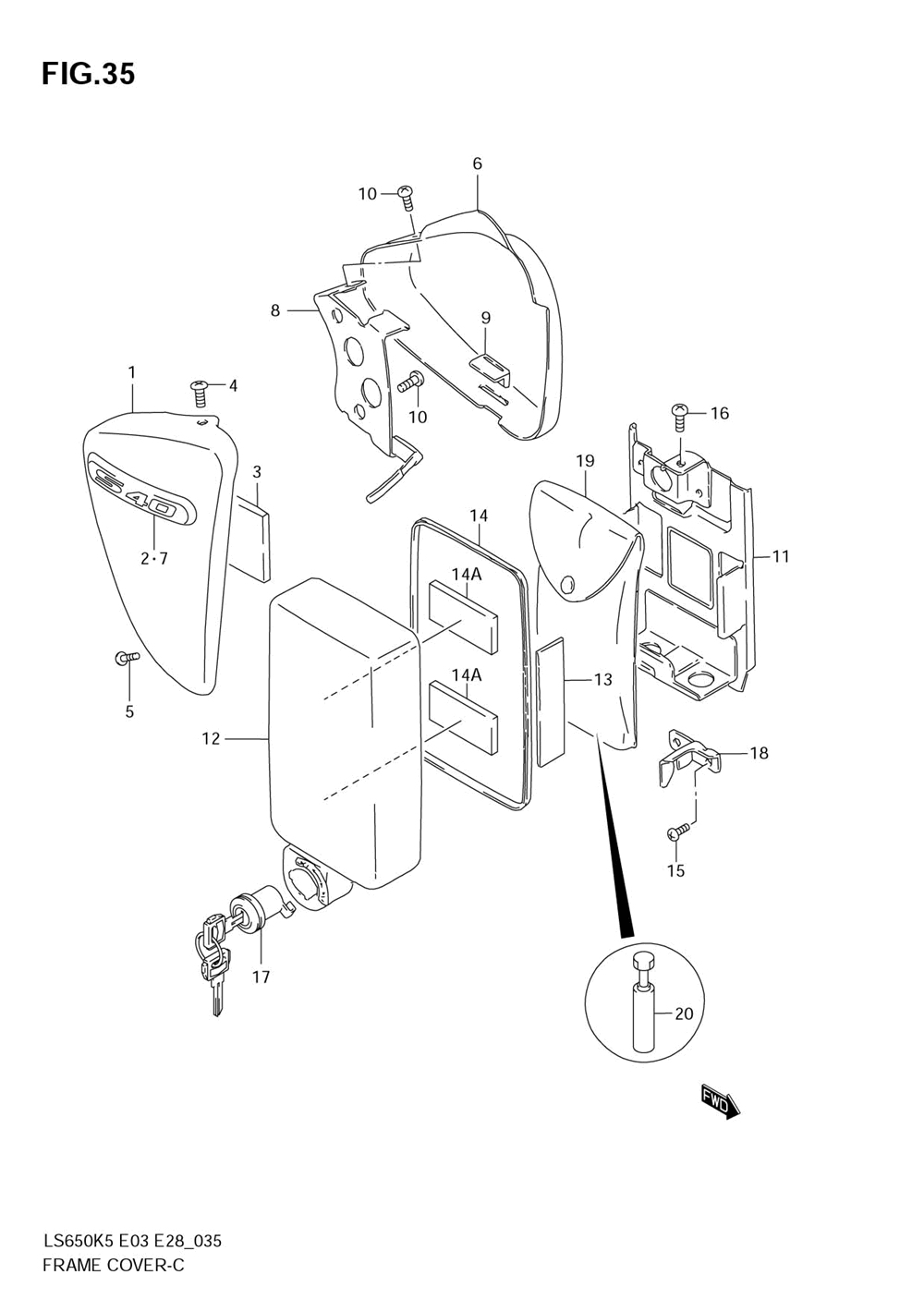

Обтекатель рамы

Suzuki LS650 Boulevard S40

Обтекатель рамы

#

oem код

название

цена

1-1

47100-24CA0-YAY

Cover, Frame Rh (black) ()

Cover, Frame Rh (black) ()

1-2

47100-24CA0-YC3

Cover, Frame Rh (white) (model K5)

Cover, Frame Rh (white) (model K5)

1-3

47100-24CA0-YDV

Cover, Frame Rh (silver) (model K6)

Cover, Frame Rh (silver) (model K6)

1-4

47100-24CA0-YHL

Cover, Frame Rh (red) (model K6/k8)

Cover, Frame Rh (red) (model K6/k8)

1-6

47100-24CA0-YBA

Cover, Frame Rh (blue) (model K7)

Cover, Frame Rh (blue) (model K7)

1-7

47100-24CA0-YMD

Cover Assy, Fram (model K8)

Cover Assy, Fram (model K8)

2

.emblem ()

.emblem ()

3

.cushion ()

.cushion ()

4

Screw ()

Screw ()

6-1

47200-24CA0-YAY

Cover, Frame Lh (black) ()

Cover, Frame Lh (black) ()

6-2

47200-24CA0-YC3

Cover, Frame Lh (white) (model K5)

Cover, Frame Lh (white) (model K5)

6-3

47200-24CA0-YDV

Cover, Frame Lh (silver) (model K6)

Cover, Frame Lh (silver) (model K6)

6-4

47200-24CA0-YHL

Cover, Frame Lh (red) (model K6/k8)

Cover, Frame Lh (red) (model K6/k8)

6-6

47200-24CA0-YBA

Cover, Frame Lh (blue) (model K7)

Cover, Frame Lh (blue) (model K7)

6-7

47200-24CA0-YMD

Cover Assy, Fram (model K8)

Cover Assy, Fram (model K8)

8

Bracket, Frame Cover Lh ()

Bracket, Frame Cover Lh ()

9

Cushion, Lh ()

Cushion, Lh ()

10

Screw ()

Screw ()

11

Holder, Tool ()

Holder, Tool ()

12-1

Cover, Tool Holder (model K5/k6)

Cover, Tool Holder (model K5/k6)

12-2

Cover, Tool Hold (model K7/k8)

Cover, Tool Hold (model K7/k8)

13

Cushion, Control (80x80x2) ()

Cushion, Control (80x80x2) ()

14

.molding ()

.molding ()

14A

Cushion, Tool Holder ()

Cushion, Tool Holder ()

16

Screw ()

Screw ()

17

Lock Set, Tool H ()

Lock Set, Tool H ()

18

Plate, Lock ()

Plate, Lock ()

19-1

Tool Assy (model K5/k6)

Tool Assy (model K5/k6)

19-2

Tool Assy (model K7/k8)

Tool Assy (model K7/k8)

20

Gauge Assy, Tension ()

Gauge Assy, Tension ()
