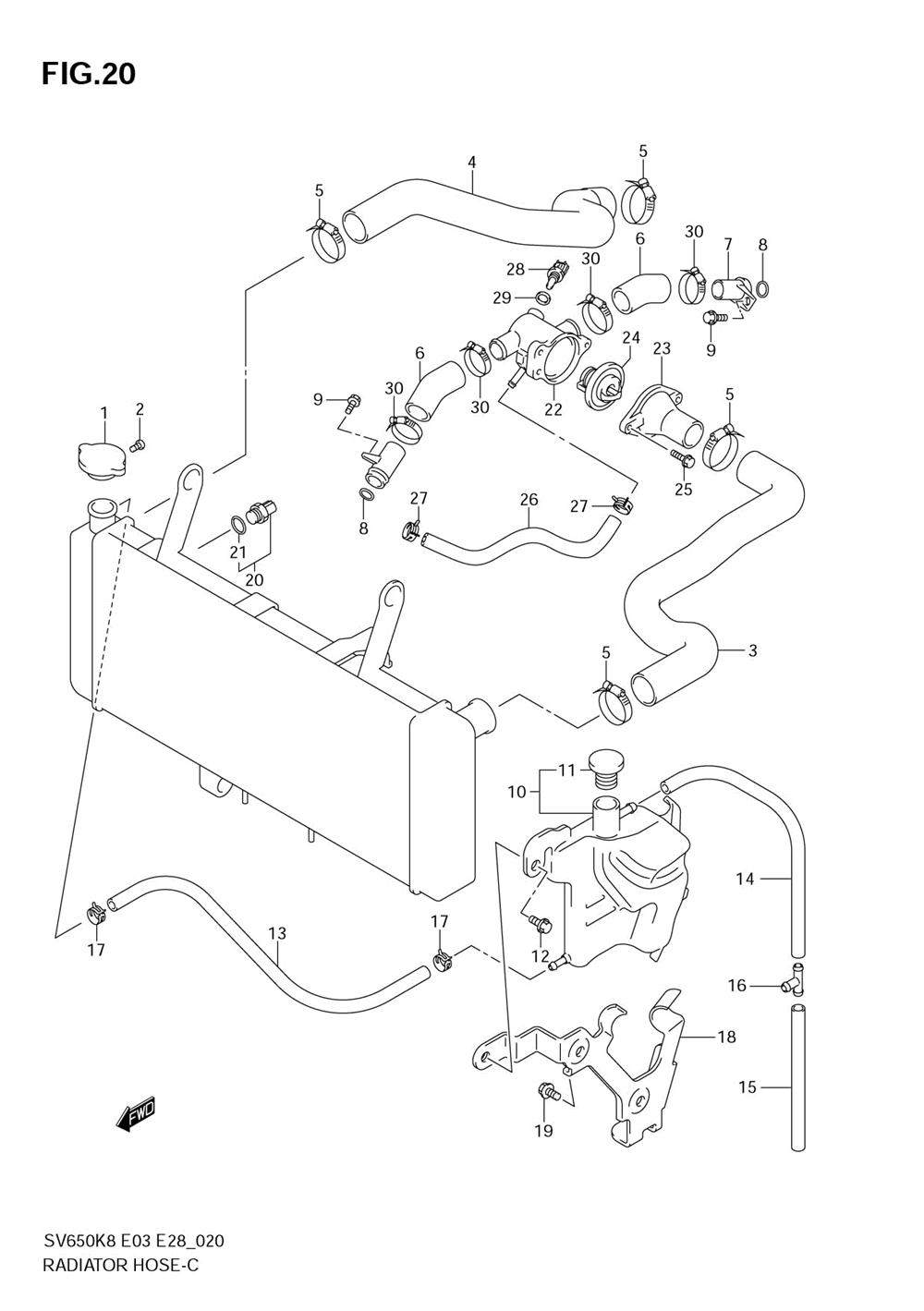

Радиатор и Патрубки

Suzuki SV650
Suzuki
#oem кодцена
1
17730-19D11
Cap, Radiator 1.1 ()
2
17733-03D10
Screw, Radiator Cap ()
3
17851-17G10
Hose, Radiator Inlet ()
4
17852-17G20
Hose, Radiator Outlet ()
5
09402-38512
09402-38511-a05 ()
6
17853-19F00
Hose, Connector Inlet ()
7
17890-06G20
Union, Connector Hose ()
8
09280-18009
O Ring ()
9
07130-0612A
Bolt, Piston Cooling Jet ()
10
17910-17G10
Tank Assy, Reservoir ()
11
17931-02FA0
.cap, Reservoir Tank ()
12
09111-06085
Bolt (6x12) ()
13
09352-50901-600
Hose, Reservoir Tank Inlet (l:600->550l:600->400)
15
09352-70103-600
Cushion, R/con Cable Stopper (l:600->380)
16
09367-08005
Joint ()
17
09401-08411
Clip ()
18
17920-17G10
Bracket, Reservoir Tank ()
19
01550-0610A
Болт
20
17680-50F10
Switch, Radiator Fan ()
21
17689-50F00
.o Ring ()
22
17662-02F11
Connector, Thermostat Inlet ()
23
17663-17G00
Cap, Thermostat Connector ()
24
17670-06G70
Thermostat, Wate ()
25
01550-0616B
Болт
26
17856-19F00
Hose, Connector To Water Pump ()
27
09401-12409
Clip ()
28
13650-57F00
Sensor, Water Temperature ()
29
09168-12017
Gasket ()
30
09402-28513
Clamp ()
