Rear master cylinder (sv650ak8/sak8) Оригинальные запчасти для мотоциклов Suzuki SV650 (2008)

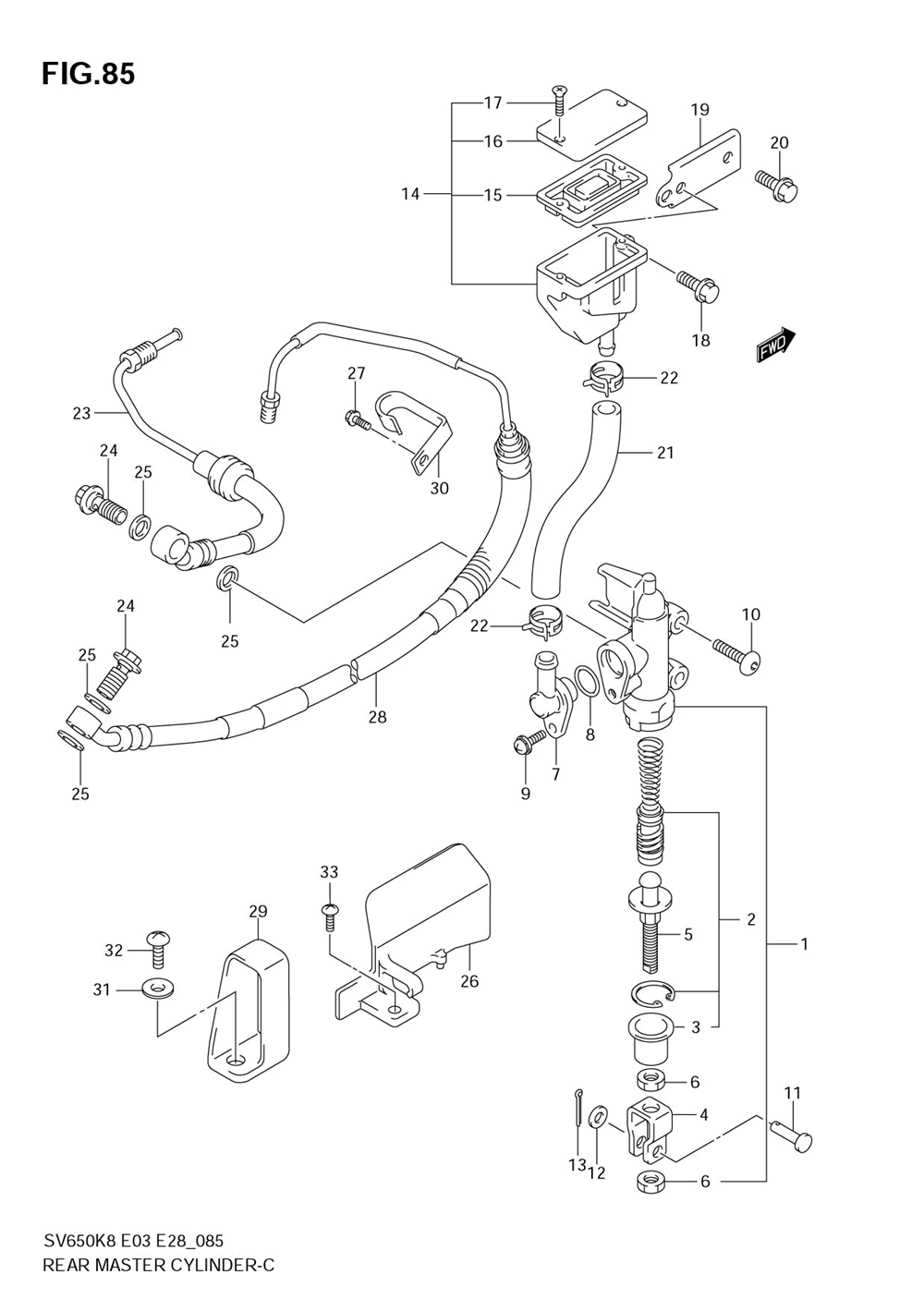

Rear master cylinder (sv650ak8/sak8)

Suzuki SV650

oem код

название

цена

69600-16G00

Cylinder Assy, Rear Master ()

.piston/cup Set ()

..boot ()

.yoke ()

.rod, Push ()

.nut ()

.connector ()

.o Ring ()

Винт

Screw, Rear ()

.shaft, Shallow Drive Arm ()

08322-0106B

Washer ()

04111-2015A

Cotter Pin ()

69740-01D02

Tank Assy, Rear Reservoir ()

.diaphragm ()

.cap ()

Винт

Bolt, Oil Gallery Exhaust ()

69750-16G10

Bracket, Rr Reservoir Tank ()

01550-0616A

Болт

69731-16G20

Hose, Reservoir Tank ()

09401-13417

Clip ()

69200-17G00

Hose Assy, Rr Br ()

09360-10062

Bolt, Fr Macter Cylinder ()

09161-10009

Washer (10x15x1.5) ()

61196-06G00

Guide, Rr Brake Hose ()

01547-0616A

Bolt, Rr Brake Pipe Clamp ()

69400-17G00

Hose Assy, Rr Br ()

69243-16G00

Guide, Rear Brake Hose ()

09169-06041

Washer, Guide Rr Brake Hose ()

02142-0616A

Винт

02142-0510B

Screw ()
