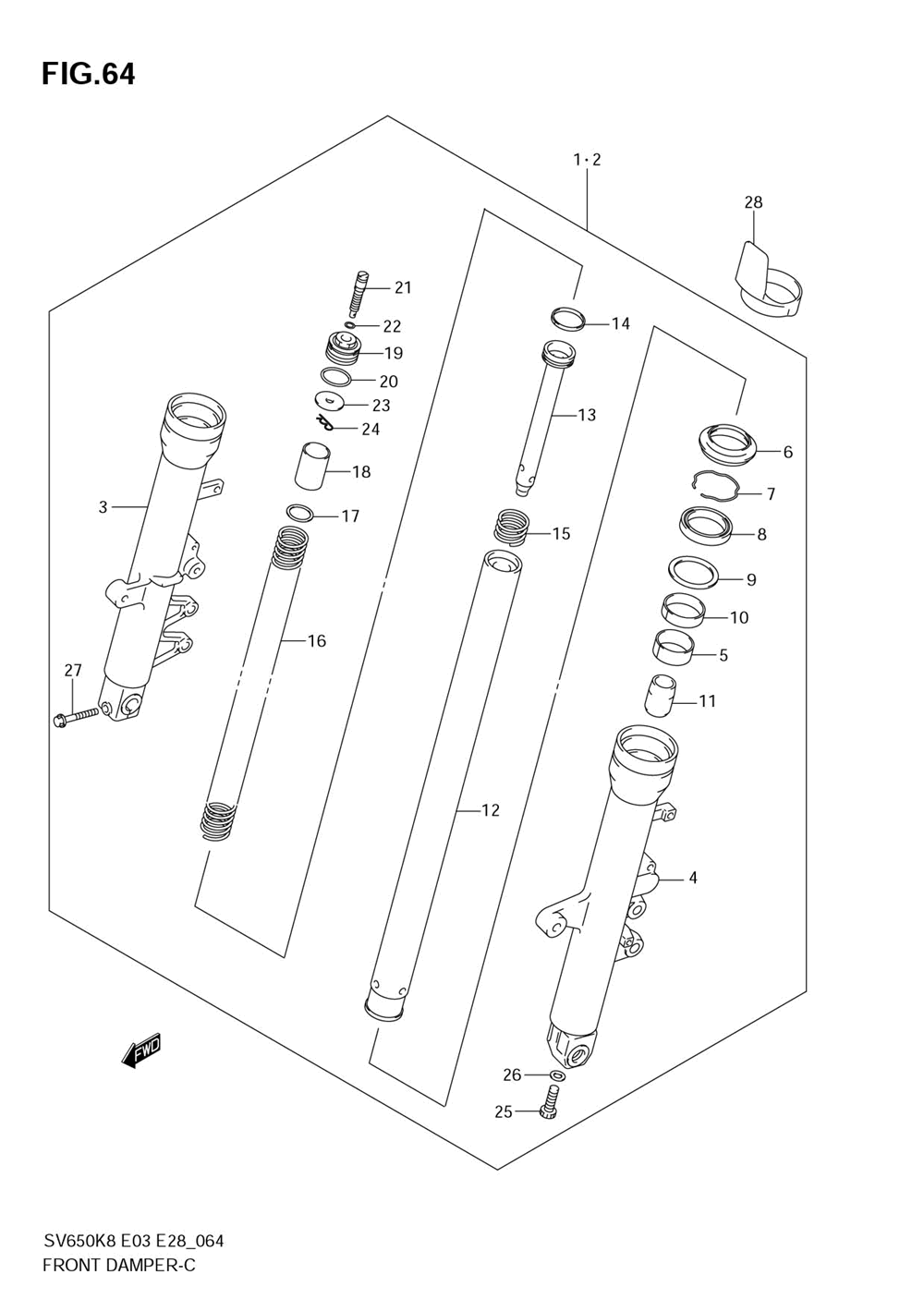

Передняя вилка

Suzuki SV650

Передняя вилка

#

oem код

название

цена

1-1

Damper Assy, Front Fork Rh (sv650k8)

Damper Assy, Front Fork Rh (sv650k8)

1-3

Damper Assy, Front Fork Rh (sv650sk8)

Damper Assy, Front Fork Rh (sv650sk8)

2-1

Damper Assy, Front Fork Lh (sv650k8)

Damper Assy, Front Fork Lh (sv650k8)

3-1

51130-17g00 (sv650k8/sk8)

51130-17g00 (sv650k8/sk8)

4-1

51140-17g00 (sv650k8/sk8)

51140-17g00 (sv650k8/sk8)

5

.bush, Slide ()

.bush, Slide ()

6-1

.seal, Dust (sv650k8/sk8)

.seal, Dust (sv650k8/sk8)

6-2

.seal, Dust (sv650ak8/sak8)

.seal, Dust (sv650ak8/sak8)

7

.ring, Stopper ()

.ring, Stopper ()

8-1

.seal, Oil (sv650k8/sk8)

.seal, Oil (sv650k8/sk8)

8-2

.seal, Olil (sv650ak8/sak8)

.seal, Olil (sv650ak8/sak8)

9-1

.spacer, Seal (sv650k8/sk8)

.spacer, Seal (sv650k8/sk8)

10

.bush, Guide ()

.bush, Guide ()

11

.piece, Oil Lock ()

.piece, Oil Lock ()

12-1

.tube, Inner (sv650k8/sk8)

.tube, Inner (sv650k8/sk8)

13-1

.cylinder (sv650k8)

.cylinder (sv650k8)

13-2

.cylinder (sv650sk8)

.cylinder (sv650sk8)

14

.ring, Piston ()

.ring, Piston ()

15-1

.spring, Rebound (sv650ak8/sak8)

.spring, Rebound (sv650ak8/sak8)

15-2

.spring, Rebound (sv650sk8)

.spring, Rebound (sv650sk8)

16-1

.spring, Front (sv650k8)

.spring, Front (sv650k8)

16-2

.spring, Front (sv650sk8)

.spring, Front (sv650sk8)

17

.joint, Spring ()

.joint, Spring ()

18-1

.collar, Spring (sv650k8/ak8/sak8)

.collar, Spring (sv650k8/ak8/sak8)

18-2

.collar, Spring (sv650sk8)

.collar, Spring (sv650sk8)

19

.bolt, Fork ()

.bolt, Fork ()

20

.o Ring ()

.o Ring ()

21

.adjuster Bolt, Spring ()

.adjuster Bolt, Spring ()

22

O Ring ()

O Ring ()

23

.seat, Spring ()

.seat, Spring ()

24

.pin, Seat Spring ()

.pin, Seat Spring ()

25

.bolt ()

.bolt ()

26

.gasket ()

.gasket ()

27

Bolt (rh)

Bolt (rh)

28

Protector ()

Protector ()

2-3

Damper Assy, Ff (sv650sk8)

Damper Assy, Ff (sv650sk8)
