Wiring harness (sv650ak7) Оригинальные запчасти для мотоциклов Suzuki SV650 (2008)

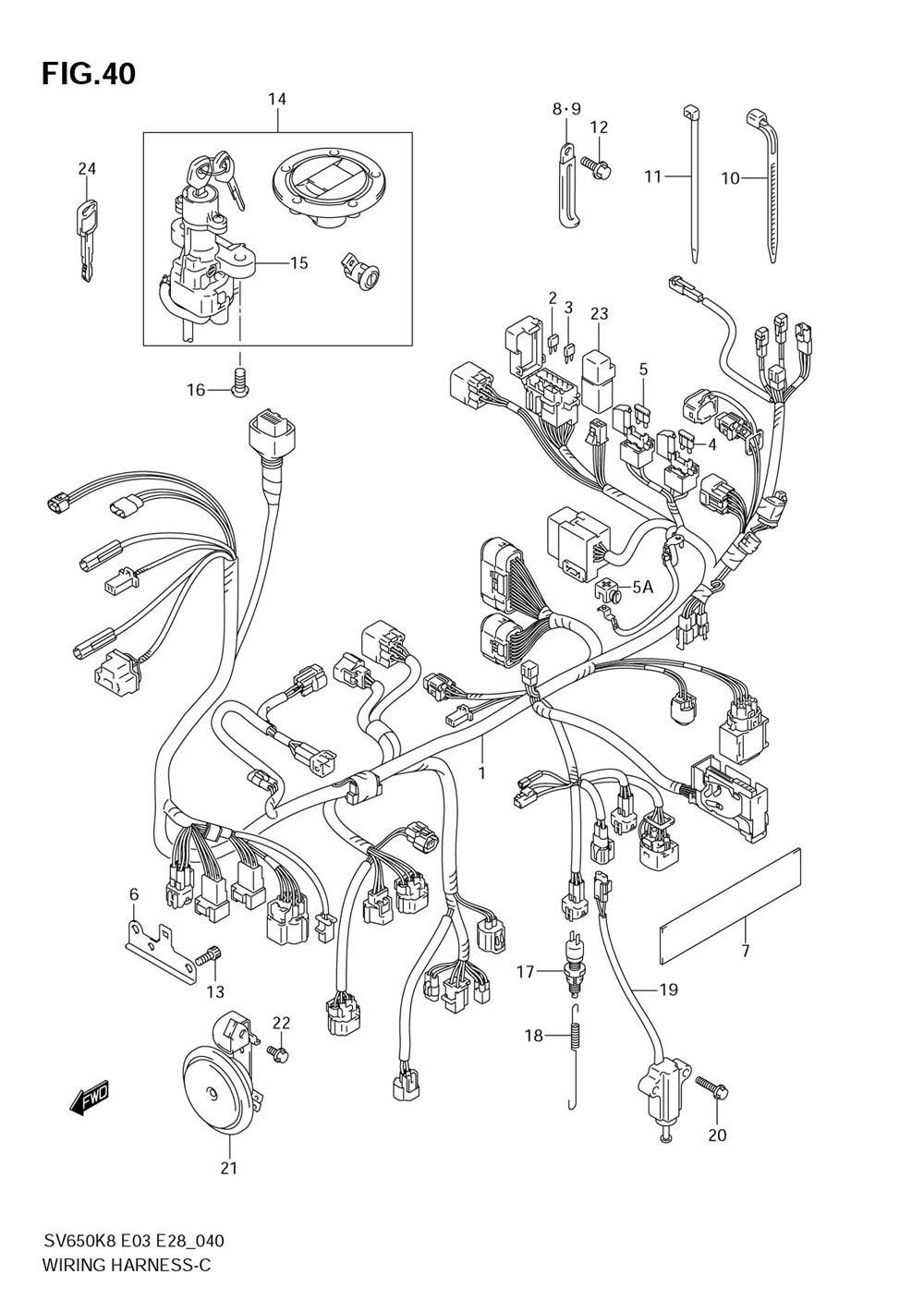

Wiring harness (sv650ak7)

Suzuki SV650

oem код

название

цена

1-1

36610-17GP0

Harness, Wiring ()

1-2

36610-17GN0

Harness, Wiring (e33)

.fuse (10a) ()

.fuse (15a) ()

.fuse (25a) ()

.fuse (40a) ()

.cap, Battery (+) ()

Holder, Coupler ()

Protector (20x90x1.0) ()

8-1

09404-06432

.clamp, Sw Leads ()

8-2

09404-06434

Clamp (l:95) ()

09404-08419

Clamp (l:97) ()

10-1

09407-11401

.clamp, Sw Lead (l:95) ()

10-2

09407-18402

Clamp (l:165) ()

09407-14407

.clamp, Harness (l:140) ()

12-1

01550-0612B

Болт

12-2

01550-0610A

Болт

07130-0610B

Болт

14-1

37000-16840

Lock Set ()

14-2

37000-16850

Lock Set (e33)

37100-16G00

.lock Assy, Steering ()

09139-08016

Bolt (8x20) ()

37740-31D00

Switch Assy, Stop Lamp ()

09443-06016

Spring ()

37840-16G00

Switch Assy, Side Stand ()

01550-06257

..bolt ()

38500-17G10

Horn Assy ()

38740-24X50

Relay Assy, Fuel Pump ()

37146-33E00

Key, Blank (opt)
