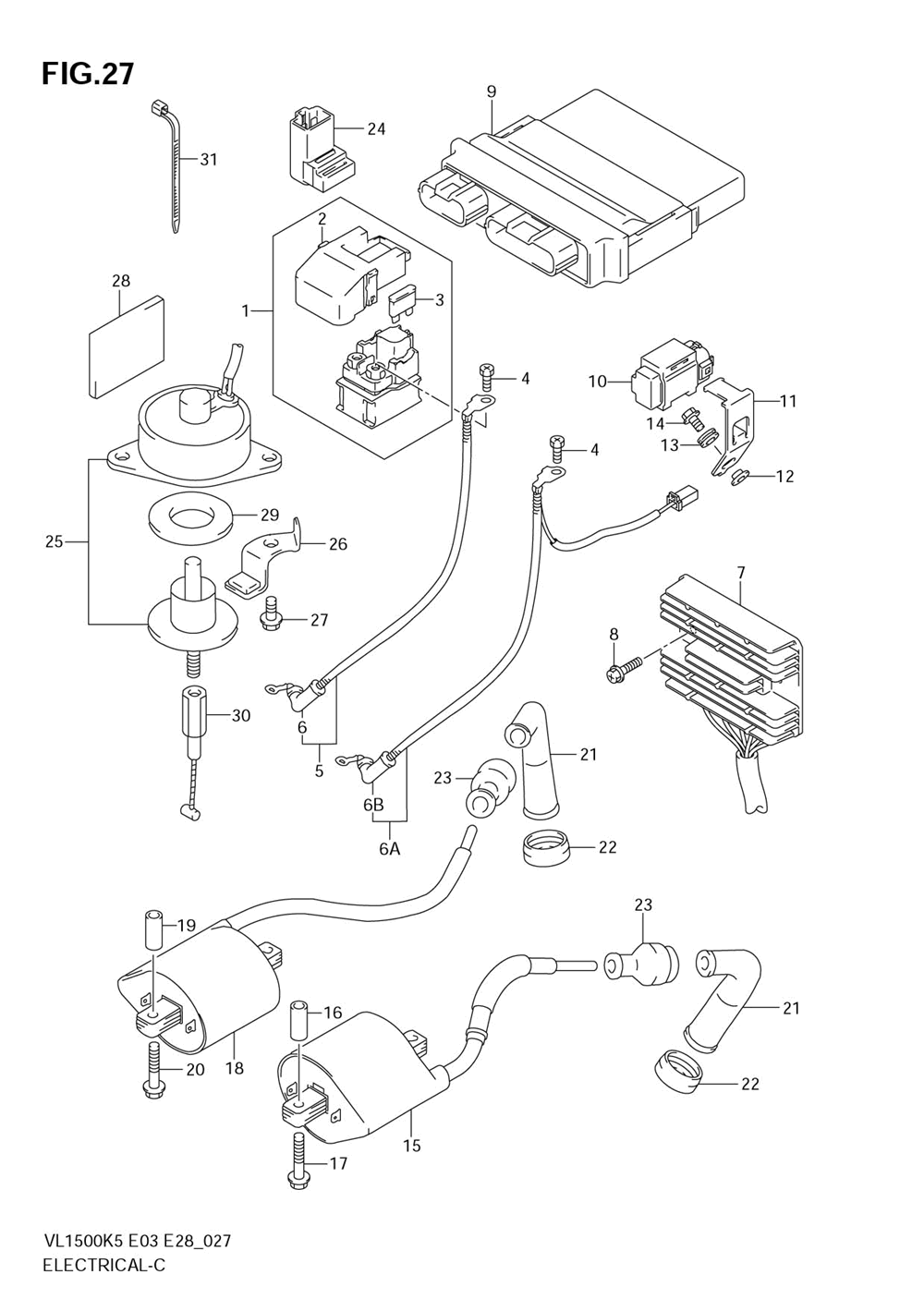

ЭЛЕКТРИКА

Suzuki VL1500 Boulevard C90
Suzuki
#oem кодцена
1
31800-21E20
Relay Assy, Starting Motor ()
2
31861-47E00
.cover ()
3
09481-30101
.fuse (30a) ()
4
09128-06013
Bolt, Starting Motor (6x8) ()
5
33810-10F00
Wire, Starter Motor Lead (model K5/k6)
6
31861-48B10
.cap, Starter Motor (model K5/k6)
6A
33810-10FA0
Wire, Starter Motor Lead (model K7/k8)
7
32800-41F11
Rectifier Assy ()
9-1
32920-10F10
Control Unit, Fi (model K5)
9-2
32920-10F30
Control Unit, Fi (model K6/k7/k8)
10
33960-06G10
Sensor Assy, Fuel Cut ()
11
33961-10F00
Bracket, Fuel Cut ()
12
09180-06325
Spacer, Ign Coil Brkt ()
13
09320-08066
Cushion, Muffler Cover ()
14
01550-0616B
Болт
15
33410-10F10
Coil Assy, Ignition Rear ()
16
09180-06195
Spacer, Ign Coil Rear ()
18
33420-10F10
Coil Assy, Ignition Front ()
21
33510-38B00
Cap, Spark Plug ()
22
33541-47D00
Seal, Spark Plug Cap (side) ()
23
33542-38B00
Seal, High Tension Cord ()
24
38740-31G10
Relay Assy, Def Lock ()
25
33970-10F00
Solenoid Assy, Decomp ()
26
33971-10F00
Stopper, Decomp Solenoid ()
27
01550-0816B
Болт
28
33652-19B00
Cushion, Decomp (8x27x3) ()
29
33972-31D10
Cushion, Decomp ()
30
58900-10F00
Cable, Decomp Front ()
31
09407-25401
Clamp (l:235) ()
