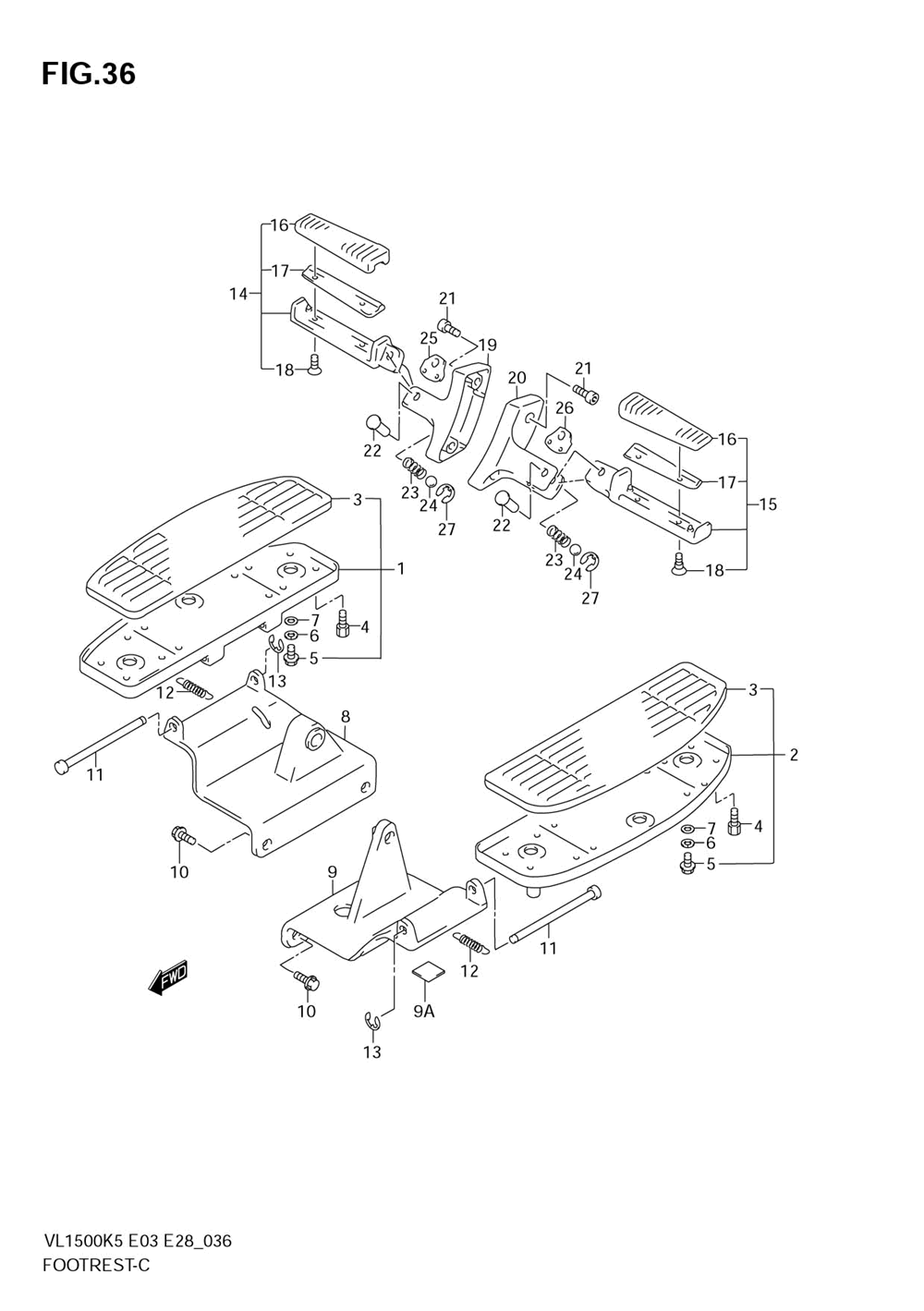

Подножки Оригинальные запчасти для мотоциклов Suzuki VL1500 Boulevard C90 (2008)

Подножки

Suzuki VL1500 Boulevard C90

oem код

название

цена

43501-10F10

Footrest Assy, Front Rh ()

43502-10F10

Footrest Assy, Front Lh ()

43550-10F10

.rubber ()

43576-07D01

Bolt, Bank Sensor ()

01550-0610B

Болт

6-1

09160-06054

Washer (model K5/k6/k7)

6-2

09160-06158

Washer (model K8)

7-1

09320-10016

.cushion (model K5/k6/k7)

7-2

09320-10036

.cushion (model K8)

43510-10F00

Bracket, Front Footrest Rh ()

43520-10F00

Bracket, Front Footrest Lh ()

.cushion ()

Болт

Pin ()

Spring, Pedal Return ()

08332-1106B

E Ring ()

43600-38E00

Footrest Assy, Pillion Rh ()

43700-38E00

Footrest Assy, Pillion Lh ()

43612-38A00

.rubber, Pillion Footrest ()

43632-38A00

.plate, Rubber Stopper ()

09127-05017

Винт

43811-10F10

Bracket, Pillion Footrest Rh ()

43821-10F10

Bracket, Pillion Footrest Lh ()

21-1

09106-08165

Bolt, Exhaust Pipe (model K5/k6/k7)

Pin ()

Пружина

Ball, Detent No.1 ()

Plate, Rh ()

Plate, Lh ()
