Frame cover (vl800ck6) Оригинальные запчасти для мотоциклов Suzuki VL800 Boulevard C50 (2008)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

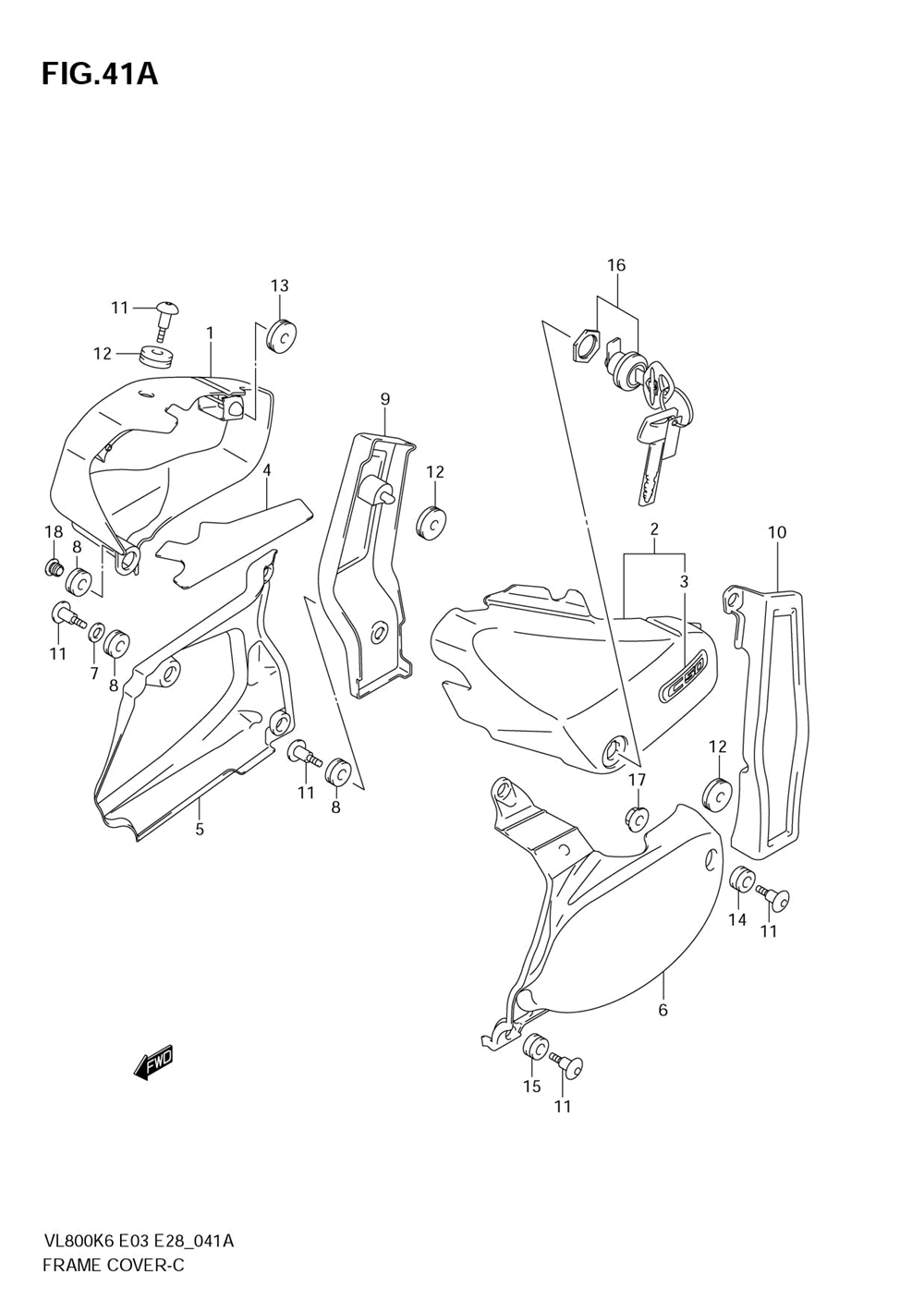

Frame cover (vl800ck6)

Suzuki VL800 Boulevard C50

Frame cover (vl800ck6)

#

oem код

название

цена

1-1

47110-41F81-YC3

Cover, Frame Rh (white) (e3,e28)

Cover, Frame Rh (white) (e3,e28)

1-2

47110-41F91-YC3

Cover, Frame Rh (white) (e33)

Cover, Frame Rh (white) (e33)

2

47210-41F80-YC3

Cover, Frame Lh (white) ()

Cover, Frame Lh (white) ()

3

.emblem, C50 ()

.emblem, C50 ()

4

Shield, Frame Cover Rh ()

Shield, Frame Cover Rh ()

5

Cover, Side Lower Rh ()

Cover, Side Lower Rh ()

6

Cover, Side Lower Lh ()

Cover, Side Lower Lh ()

7

Шайба

Шайба

8

.cushion, 8.5x20x8 ()

.cushion, 8.5x20x8 ()

9

47141-41F01-019

Cover, Side Rear Rh (black) ()

Cover, Side Rear Rh (black) ()

10

47241-41F00-019

Cover, Side Rear Lh (black) ()

Cover, Side Rear Lh (black) ()

11

Screw, Brace ()

Screw, Brace ()

12

Cushion, Brace ()

Cushion, Brace ()

13

.grommet ()

.grommet ()

14

Cushion, Lower ()

Cushion, Lower ()

15

Cushion Box Front ()

Cushion Box Front ()

16

Lock Set, Fuel Lid ()

Lock Set, Fuel Lid ()

17

Гайка

Гайка

18

Plug ()

Plug ()
