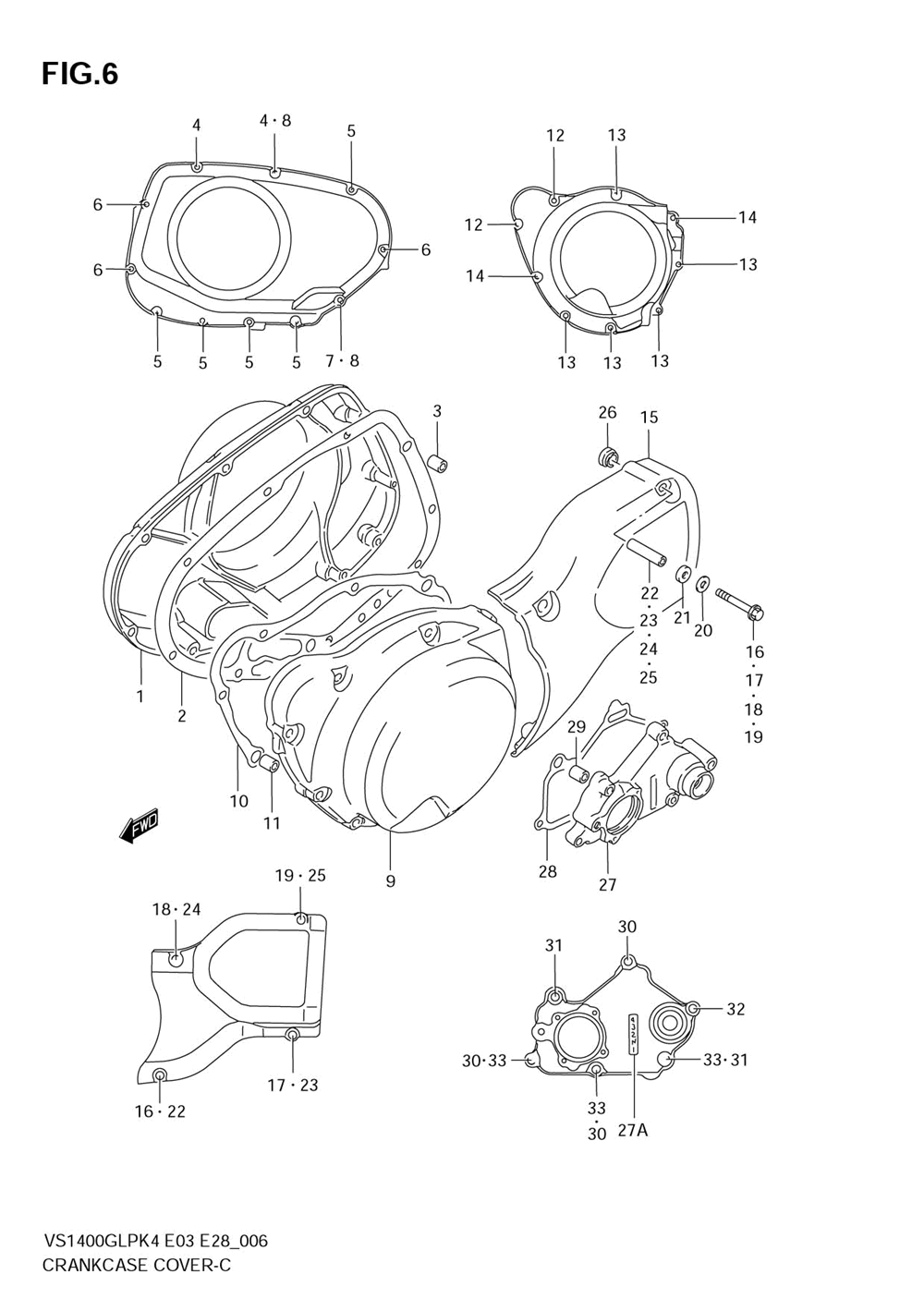

Крышки картера Оригинальные запчасти для мотоциклов Suzuki VS1400GLP Boulevard S83 (2008)

Крышки картера

Suzuki VS1400GLP Boulevard S83

oem код

название

цена

11341-38B01

Cover, Clutch ()

2-1

11482-38B20

Gasket, Clutch Cover (model K4/k5)

04211-09189

Pin ()

4-1

01547-06307

Bolt (model K4)

4-2

09103-06213

Screw (model K5/k6/k7/k8)

6-1

01547-06407

Bolt (model K4)

6-2

09103-06215

Bolt (6x40) (model K5/k6/k7/k8)

7-1

01547-06557

Bolt (model K4)

7-2

09103-06216

Bolt (model K5/k6/k7/k8)

09168-06023

Washer, Oil Gallery Exhaust ()

11351-38B00

Cover, Generator ()

10-1

11483-38B10

.gasket, Generator Cover (model K4/k5)

09206-11007

.pin (11x20) ()

13-1

01547-06357

Bolt (model K4)

13-2

09103-06214

Bolt (model K5/k6/k7/k8)

14-1

01547-06457

Bolt (model K4)

14-2

09103-06224

Bolt (model K5/k6/k7/k8)

11361-38B00

Cover, Secondary Case ()

18-1

01547-06607

Bolt (model K4)

18-2

09103-06261

.bolt (l:60) (model K5/k6/k7/k8)

Шайба

Cushion ()

Spacer (l:18.2) ()

Spacer (l:23) ()

Spacer (l:43) ()

Spacer (l:45.9) ()

Cover, Gear Shift ()

27A

68392-38B00

Label, Gear Shift ()

28-1

11485-38B20

Gasket, Gear Shift Cover (model K4/k5)

04211-09109

Pin ()

30-1

01547-06257

Bolt (model K4)

30-2

09103-06212

Bolt (6x25) (model K5/k6/k7/k8)
