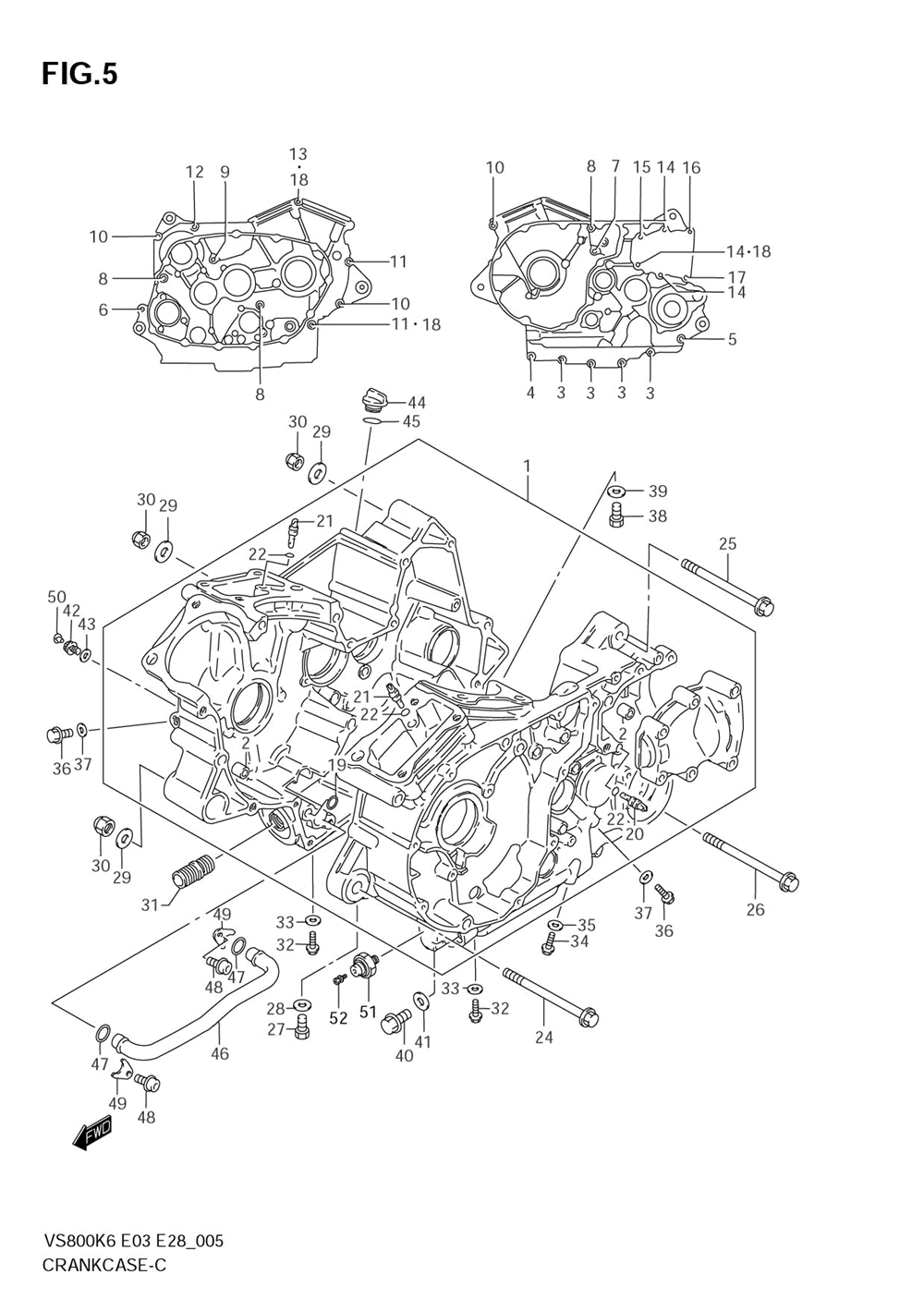

Картер

Suzuki VS800 Boulevard S50

Картер

#

oem код

название

цена

1

Crankcase Set ()

Crankcase Set ()

2

.pin (11x20) ()

.pin (11x20) ()

3

Болт

Болт

4

Болт

Болт

5

Болт

Болт

6

Bolt, Throttle Body ()

Bolt, Throttle Body ()

7

Болт

Болт

8

Bolt, Crankcase (8x95) ()

Bolt, Crankcase (8x95) ()

9

Bolt, Mount Oil Seal ()

Bolt, Mount Oil Seal ()

10

.bolt (l:95) ()

.bolt (l:95) ()

11

Bolt (8x105) ()

Bolt (8x105) ()

12

.bolt (8x120) ()

.bolt (8x120) ()

13

.bolt (8x160) ()

.bolt (8x160) ()

14

Болт

Болт

15

Болт

Болт

16

.bolt (8x55) ()

.bolt (8x55) ()

17

Болт

Болт

18

Gasket (8.2x14x1.0) ()

Gasket (8.2x14x1.0) ()

19

O Ring, Crankcase ()

O Ring, Crankcase ()

20

Jet, Oil Gallery Mission ()

Jet, Oil Gallery Mission ()

21

Jet, Oil Gall Cyl Head ()

Jet, Oil Gall Cyl Head ()

22

O Ring, Oil Gallery Jet ()

O Ring, Oil Gallery Jet ()

23-1

.washer, Crank Thrust (t:1.94 (see Illus On Fig.7)

.washer, Crank Thrust (t:1.94 (see Illus On Fig.7)

23-2

.washer, Crank Thrust (t:1.96 ()

.washer, Crank Thrust (t:1.96 ()

23-3

.washer, Crank Thrust (t:1.99 ()

.washer, Crank Thrust (t:1.99 ()

23-4

.washer, Crank Thrust (t:2.01 ()

.washer, Crank Thrust (t:2.01 ()

23-5

.washer, Crank Thrust (t:2.04 ()

.washer, Crank Thrust (t:2.04 ()

23-6

.washer, Crank Thrust (t:2.06 ()

.washer, Crank Thrust (t:2.06 ()

23-7

.washer, Crank Thrust (t:2.09 ()

.washer, Crank Thrust (t:2.09 ()

23-8

.washer, Crank Thrust (t:2.11 ()

.washer, Crank Thrust (t:2.11 ()

23-9

.washer, Crank Thrust (t:2.14 ()

.washer, Crank Thrust (t:2.14 ()

23-10

.washer, Crank Thrust (t:2.16 ()

.washer, Crank Thrust (t:2.16 ()

24

Bolt (10x125) ()

Bolt (10x125) ()

25

Bolt (10x130) ()

Bolt (10x130) ()

26

Bolt (10x150) ()

Bolt (10x150) ()

27

.plug ()

.plug ()

28

Gasket, Oil Level Plug ()

Gasket, Oil Level Plug ()

29

Washer ()

Washer ()

30

Гайка

Гайка

31

Union, Oil Filter Stand ()

Union, Oil Filter Stand ()

32

Plug, Oil Drain ()

Plug, Oil Drain ()

34

Plug, Oil Gallery ()

Plug, Oil Gallery ()

35

Gasket, Oil Gallery Plug ()

Gasket, Oil Gallery Plug ()

36

Болт

Болт

37

Washer, Oil Gallery Exhaust ()

Washer, Oil Gallery Exhaust ()

38

Plug, Oil Gallery ()

Plug, Oil Gallery ()

39

Gasket (16x22x2.0) ()

Gasket (16x22x2.0) ()

40

Plug, Oil Drain ()

Plug, Oil Drain ()

41

.gasket (14.1x18x1.5) ()

.gasket (14.1x18x1.5) ()

42

Plug, Oil Gallery ()

Plug, Oil Gallery ()

44

Plug, Engine Oil Filler ()

Plug, Engine Oil Filler ()

45

O Ring, Oil Filler Cap ()

O Ring, Oil Filler Cap ()

46

Pipe, Oil Gallery ()

Pipe, Oil Gallery ()

47

O Ring (d:3.1, Id:14.8) ()

O Ring (d:3.1, Id:14.8) ()

48

Болт

Болт

49

()

()

50

Cap, Handle Bar Bolt ()

Cap, Handle Bar Bolt ()

51

Switch Assy, Oil Pressure ()

Switch Assy, Oil Pressure ()

52

.bolt ()

.bolt ()
