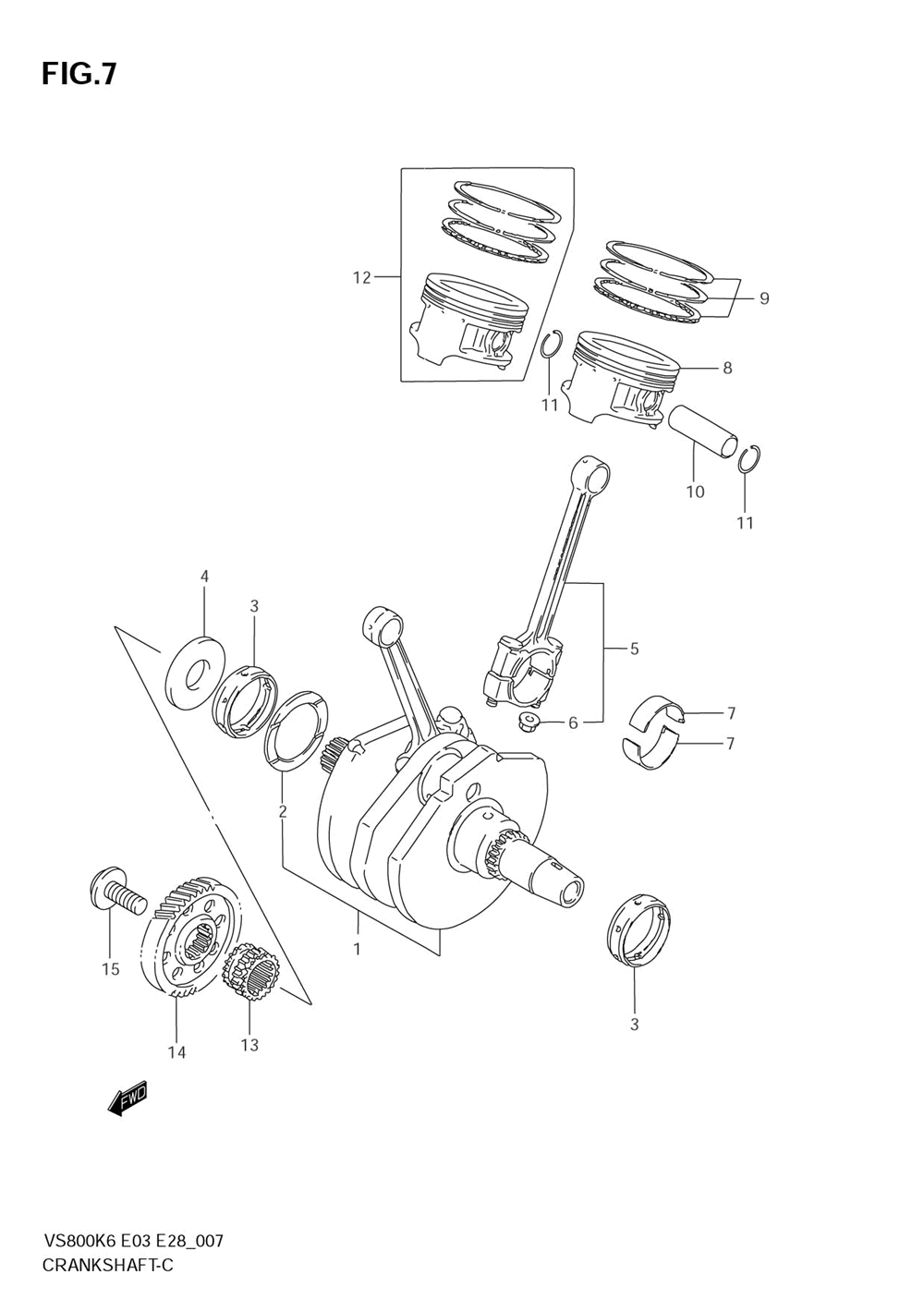

КОЛЕНЧАТЫЙ ВАЛ

Suzuki VS800 Boulevard S50

КОЛЕНЧАТЫЙ ВАЛ

#

oem код

название

цена

1

Crankshaft Set ()

Crankshaft Set ()

2-1

.washer, Crank Thrust (t:1.94 ()

.washer, Crank Thrust (t:1.94 ()

2-2

.washer, Crank Thrust (t:1.96 ()

.washer, Crank Thrust (t:1.96 ()

2-3

.washer, Crank Thrust (t:1.99 ()

.washer, Crank Thrust (t:1.99 ()

2-4

.washer, Crank Thrust (t:2.01 ()

.washer, Crank Thrust (t:2.01 ()

2-5

.washer, Crank Thrust (t:2.04 ()

.washer, Crank Thrust (t:2.04 ()

2-6

.washer, Crank Thrust (t:2.06 ()

.washer, Crank Thrust (t:2.06 ()

2-7

.washer, Crank Thrust (t:2.09 ()

.washer, Crank Thrust (t:2.09 ()

2-8

.washer, Crank Thrust (t:2.11 ()

.washer, Crank Thrust (t:2.11 ()

2-9

.washer, Crank Thrust (t:2.14 ()

.washer, Crank Thrust (t:2.14 ()

2-10

.washer, Crank Thrust (t:2.16 ()

.washer, Crank Thrust (t:2.16 ()

3

Bearing, Crankshaft (inc W/crankcase Set)

Bearing, Crankshaft (inc W/crankcase Set)

4

Washer, Crank Thrust ()

Washer, Crank Thrust ()

5

Rod Assy, Connecting ()

Rod Assy, Connecting ()

6

.nut ()

.nut ()

7-1

12164-38E00-0A0

Bearing, Crank Pin (green) ()

Bearing, Crank Pin (green) ()

7-2

12164-38E00-0B0

Bearing, Crank Pin (black) ()

Bearing, Crank Pin (black) ()

7-3

12164-38E00-0C0

Bearing, Crank Pin (brown) ()

Bearing, Crank Pin (brown) ()

7-4

12164-38E00-0D0

Bearing, Crank Pin (yellow) ()

Bearing, Crank Pin (yellow) ()

7-5

12164-38E00-0E0

Bearing, Crank Pin (blue) ()

Bearing, Crank Pin (blue) ()

8

12111-45C00-0F0

Piston ()

Piston ()

9

Ring Set, Piston ()

Ring Set, Piston ()

10

Pin, Piston ()

Pin, Piston ()

11

Circlip ()

Circlip ()

12

12100-45C00-050

Piston Set (os:0.5) (opt)

Piston Set (os:0.5) (opt)

13

Sprocket, Cam Chain Drive Rh ()

Sprocket, Cam Chain Drive Rh ()

14

Gear, Primary Drive (nt:42)

Gear, Primary Drive (nt:42)

15

Bolt (12x28) ()

Bolt (12x28) ()
