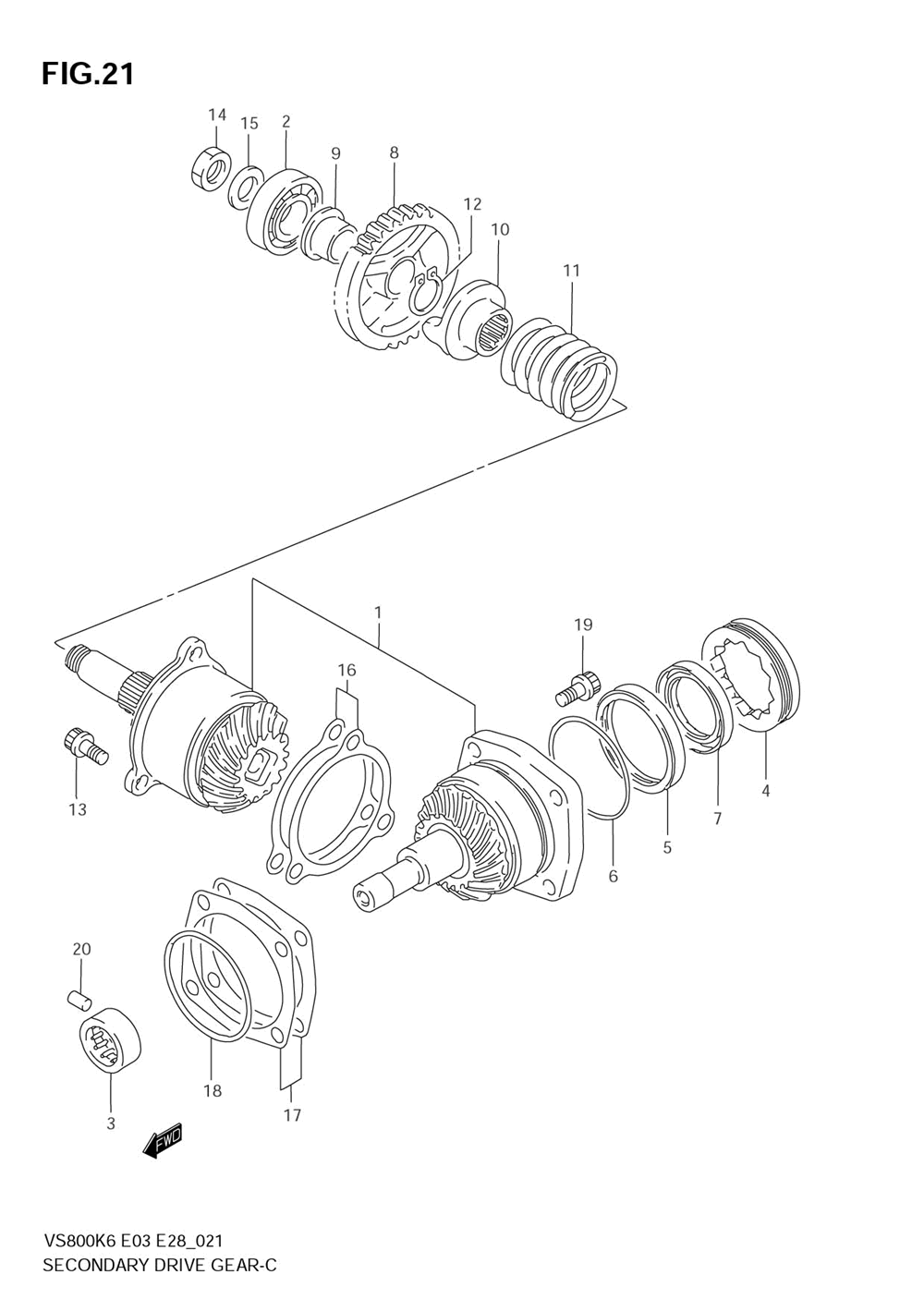

Secondary drive gear

Suzuki VS800 Boulevard S50

Secondary drive gear

#

oem код

название

цена

1

Gear & Housing Set, Secondary ()

Gear & Housing Set, Secondary ()

2

Bearing, Drive Shaft, Rh ()

Bearing, Drive Shaft, Rh ()

3

.bearing (20x34x16) ()

.bearing (20x34x16) ()

4

.stopper, Bearing ()

.stopper, Bearing ()

5

.housing, Oil Seal ()

.housing, Oil Seal ()

6

.o Ring (d:1.2, Id:59.6) ()

.o Ring (d:1.2, Id:59.6) ()

7

.oil Seal (38x54x8.5) ()

.oil Seal (38x54x8.5) ()

8

Gear, Reduction Driven (nt:30 ()

Gear, Reduction Driven (nt:30 ()

9

Bush ()

Bush ()

10

Dog, Output Cam ()

Dog, Output Cam ()

11

Spring ()

Spring ()

12

Circlip ()

Circlip ()

13-1

Bolt (model K6)

Bolt (model K6)

13-2

Bolt, Bearing Housing (model K7/k8)

Bolt, Bearing Housing (model K7/k8)

14

Nut, Drive Shaft Rh ()

Nut, Drive Shaft Rh ()

15

Washer, Drive Shaft ()

Washer, Drive Shaft ()

16

Shim Set, Sec Drive Gear (t:0.3/0.35/0.4/0.5/0.6)

Shim Set, Sec Drive Gear (t:0.3/0.35/0.4/0.5/0.6)

17

Shim Set, Sec Drive Housing (t:0.3/0.35/0.4/0.5/0.6)

Shim Set, Sec Drive Housing (t:0.3/0.35/0.4/0.5/0.6)

18

O Ring (d:2.1, Id:66.2) ()

O Ring (d:2.1, Id:66.2) ()

20

Pin ()

Pin ()
