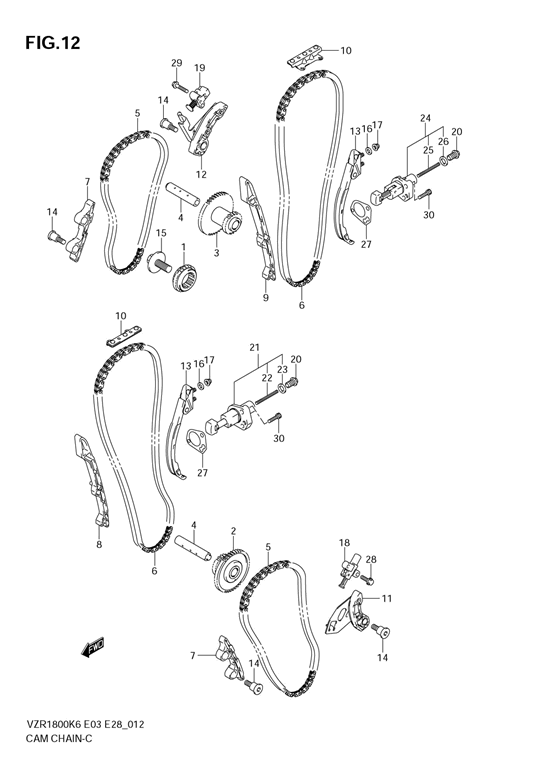

Цепь ГРМ

Suzuki VZR1800 Boulevard M109R
Suzuki
#oem кодцена
1
12731-48G00
Sprocket, Cam Chain Drive Rh ()
2
12751-48G00
Sprocket, Cam Chain Idle Fr ()
3
12752-48G00
Sprocket, Cam Chain Idle Rr ()
4
12755-48G00
Shaft, Idler ()
5
12761-48G00
Chain, Camshaft Drive No.1 ()
6
12762-48G00
Chain, Camshaft Drive No.2 ()
7
12771-48G00
Guide, Cam Chain No.1 ()
8
12772-48G00
Guide, Cam Chain No.2 Fr ()
9
12774-48G00
Guide, Cam Chain No.2 Rr ()
10
12773-48G00
Guide, Cam Chain No.3 ()
11
12811-48G00
Tensioner, Cam Chain No.1 Fr ()
12
12813-48G00
Tensioner, Cam Chain No.1 Rr ()
13
12814-48G00
Tensioner, Cam Chain No.2 ()
14
12812-31G00-A05
Болт
15
09103-12013
Bolt (12x28) ()
16
09168-06018
Gasket, Tensioner Adjuster ()
17
08313-20067
Nut, Rect Ftg ()
18
12831-48G00
Adjuster, Tensioner No.1 Fr ()
19
12832-48G00
Adjuster, Tensioner No.1 Rr ()
20
12833-17G00-A08
Plug ()
21
12834-48G00
Adjuster Assy, Tensioner ()
22
12831-35F00
Пружина
23
12837-24F10
.gasket ()
24
12835-48G00
Adjuster, Tensioner No.2 Rr ()
27
12837-27G00
Gasket ()
28
01550-0620A
Болт
29
01550-0630A
Болт
30
07130-0625A
Винт
