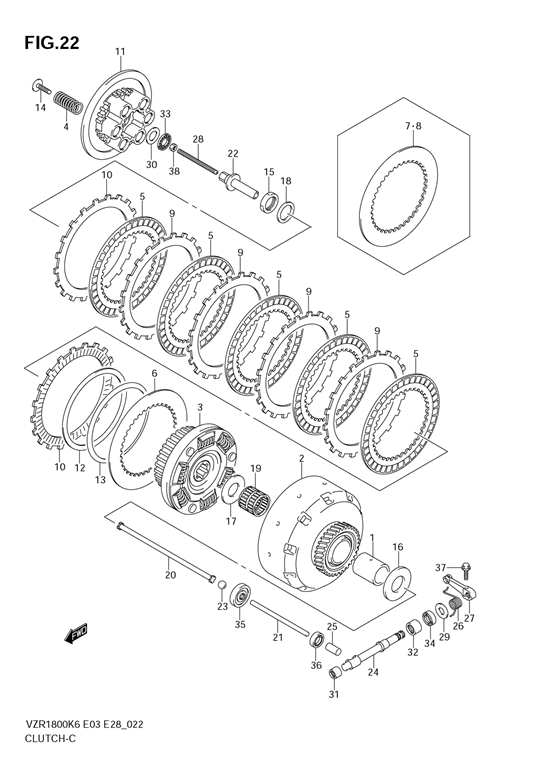

Сцепление

Suzuki VZR1800 Boulevard M109R

Сцепление

#

oem код

название

цена

1

Spacer, Primary Drive Gear ()

Spacer, Primary Drive Gear ()

2-1

Gear Assy, Prima (nt:33, Model K6/k7)

Gear Assy, Prima (nt:33, Model K6/k7)

3

Hub, Clutch ()

Hub, Clutch ()

4

Spring, Clutch ()

Spring, Clutch ()

5

Plate, Clutch Drive No.1 (t:3.6)

Plate, Clutch Drive No.1 (t:3.6)

6

Plate, Clutch Drive No.2 (t:2.0)

Plate, Clutch Drive No.2 (t:2.0)

7

Plate, Clutch Drive No.3 (t:2.3)

Plate, Clutch Drive No.3 (t:2.3)

8

Plate, Clutch Drive No.4 (t:1.6)

Plate, Clutch Drive No.4 (t:1.6)

9

Plate, Clutch Driven No.1 (t:2.9)

Plate, Clutch Driven No.1 (t:2.9)

10

Plate, Clutch Driven No.2 (t:3.4)

Plate, Clutch Driven No.2 (t:3.4)

11

Disc, Clutch Pressure ()

Disc, Clutch Pressure ()

12

Seat, Wave Washer (109x124x1.6)

Seat, Wave Washer (109x124x1.6)

13

Washer, Clutch Plate ()

Washer, Clutch Plate ()

14

Bolt, Clutch Spring ()

Bolt, Clutch Spring ()

15

Nut, Clutch Sleeve Hub ()

Nut, Clutch Sleeve Hub ()

16

Washer (25x50x25) (25x50x2.5025x50x2.50)

Washer (25x50x25) (25x50x2.5025x50x2.50)

18-1

Washer (24.2x35x2) (model K6/k7)

Washer (24.2x35x2) (model K6/k7)

18-2

Clutch Slve Hub (model K8)

Clutch Slve Hub (model K8)

19

Bearing, Primary Drive (32x37x38.3)

Bearing, Primary Drive (32x37x38.3)

20

Rod, Clutch Push, Rh ()

Rod, Clutch Push, Rh ()

21

Rod, Clutch Push, L ()

Rod, Clutch Push, L ()

22

Piece, Clutch Push ()

Piece, Clutch Push ()

23

Ball, Clutch Push ()

Ball, Clutch Push ()

24

23122-48g00-a05 ()

23122-48g00-a05 ()

25

Cap, Clutch Push Rod ()

Cap, Clutch Push Rod ()

26

23125-48G00-A05

Spring, Clutch Release Return ()

Spring, Clutch Release Return ()

27

Arm, Clutch Release ()

Arm, Clutch Release ()

28

Screw, Clutch Push ()

Screw, Clutch Push ()

29

09160-10020-A05

Washer, Clutch Release (10.5x24x1.0)

Washer, Clutch Release (10.5x24x1.0)

30

Washer (15.5x28x1) (15.5x28x1.0)

Washer (15.5x28x1) (15.5x28x1.0)

31

Bearing, Cl Rlse Low (10x14x10)

Bearing, Cl Rlse Low (10x14x10)

32

Bearing, Cl Rlse Cam Upper (12x18x12)

Bearing, Cl Rlse Cam Upper (12x18x12)

33

Bearing (15x28x2) (15x28x2.0)

Bearing (15x28x2) (15x28x2.0)

34

Seal, Cl Rlse Arm ()

Seal, Cl Rlse Arm ()

35

Seal, Clutch Push Rod Oil ()

Seal, Clutch Push Rod Oil ()

36

Oil Seal (10x17x5) ()

Oil Seal (10x17x5) ()

37

Болт

Болт

38

Nut, No.1 ()

Nut, No.1 ()

29

Washer, Clutch Push (10.5x24x1.0)

Washer, Clutch Push (10.5x24x1.0)
