Картер Оригинальные запчасти для мотоциклов Suzuki VZR1800 Boulevard M109R (2008)

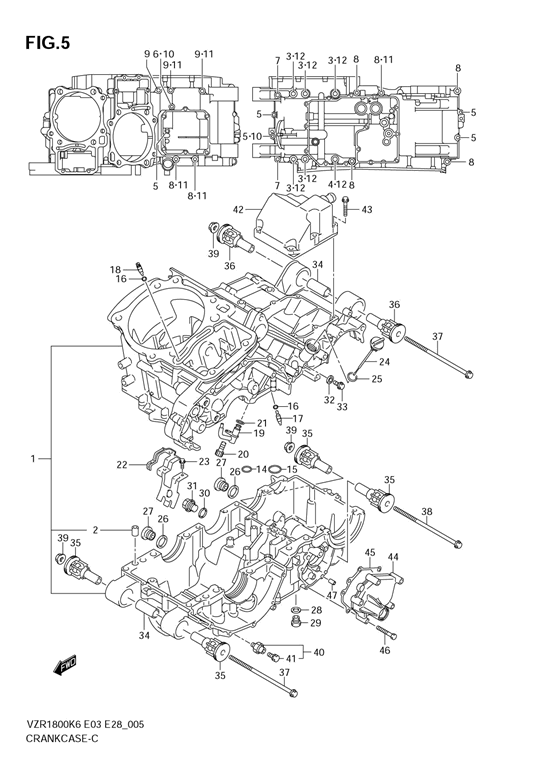

Картер

Suzuki VZR1800 Boulevard M109R

oem код

название

цена

1-1

11300-48862

Crankcase Assy (model K6/k7)

11319-33E50

Pin, Rr Swgarm Joint ()

Bolt (10x100) ()

.bolt (10x115) ()

Болт

Болт

Болт

Washer, Oil Gallery Exhaust ()

09168-08016

Gasket (8.2x14x1.0) ()

09168-10031

.gasket, Crankcase Bolt ()

13-1

12228-48G00-0A0

.washer, Crank Thrust (red) (see Illustrationon Fig.8 (b-10))

13-2

12228-48G00-0B0

.washer, Crank Thrust (black) ()

13-3

12228-48G00-0C0

.washer, Crank Thrust (blue) ()

13-4

12228-48G00-0D0

.washer, Crank Thrust (green) ()

13-5

12228-48G00-0E0

.washer, Crank Thrust (yellow ()

13-6

12228-48G00-0F0

.washer, Crank Thrust (white) ()

09280-08012

O Ring ()

09280-12009

O Ring, Crankcase ()

09280-04004

O Ring, Oil Gallery Jet ()

09493-80005

Jet, Oil Gallery ()

11390-48G00

Jet, Piston Cooling ()

09106-06075-A05

Bolt (6x12) ()

09280-05007

O Ring ()

11521-48G00

Plate, Oil Separator ()

01547-0612A

Bolt, Push Rod Guide ()

11971-48G01

Gauge, Oil Level ()

09280-17003

O Ring, Oil Filler Cap ()

09168-16002

Gasket (16x22x2.0) ()

09248-16012-A05

.plug, Final Gear Case ()

09168-14004

.gasket (14.1x18x1.5) ()

09248-14005

Plug, Oil Gallery ()

09168-12002

Gasket, Oil Level Plug ()

Plug, Oil Gallery ()

Spacer ()

.bush, Engine Mtg ()

.bush, Engine Mtg ()

Bolt (10x215) ()

Bolt (10x195) ()

Nut, Upper ()

Switch Assy, Oil Pressure ()

.bolt ()

Cover, Breather ()

Болт

Cover, Gear Shift ()

Gasket ()

Болт

Dowel Pin ()

1-1

11300-48863

Crankcase Assy (model K6/k7)
