Rear fender (vzr1800k6/k7) Оригинальные запчасти для мотоциклов Suzuki VZR1800 Boulevard M109R (2008)

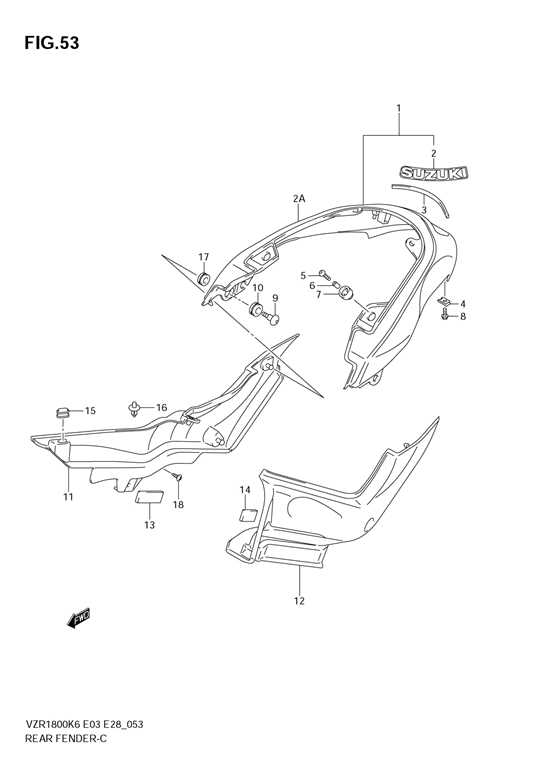

Rear fender (vzr1800k6/k7)

Suzuki VZR1800 Boulevard M109R

oem код

название

цена

1-1

63110-48G00-YAY

Fender, Rear (black) ()

1-2

63110-48G00-YD8

Fender, Rear (silver) (model K6)

1-3

63110-48G00-YLD

Fender, Rear (blue) (model K6)

2-1

68641-19F00-YD8

.emblem, Rear (silver) (for Yay,yld,yhl)

2-2

68641-19F00-17U

.emblem, Rear (gray) (for Yd8,yc3)

Cushion, Lamp ()

Гайка

Болт

Spacer ()

Cushion ()

Винт

Screw, Brace ()

Cushion, Holder ()

11-1

63171-48G00-YAY

Cover, Rear Fender Rh (black) ()

11-2

63171-48G00-YD8

Cover, Rear Fender Rh (silver (model K6)

11-3

63171-48G00-YLD

Cover, Rear Fender Rh (blue) (model K6)

11-4

63171-48G00-YC3

Cover, Rear Fender Rh (white) (model K7)

11-5

63171-48G00-YHL

Cover, Rear Fender Rh (red) (model K7)

12-1

63181-48G00-YAY

Cover, Rear Fender Lh (black) ()

12-2

63181-48G00-YD8

Cover, Rear Fender Lh (silver (model K6)

12-3

63181-48G00-YLD

Cover, Rear Fender Lh (blue) (model K6)

12-4

63181-48G00-YC3

Cover, Rear Fender Lh (white) (model K7)

12-5

63181-48G00-YHL

Cover, Rear Fender Lh (red) (model K7)

Cushion, Rh ()

Cushion, Lh ()

Cushion, Cover ()

Clip (black) ()

.grommet ()

Винт
