Side cover (vzr1800k6/k7) Оригинальные запчасти для мотоциклов Suzuki VZR1800 Boulevard M109R (2008)

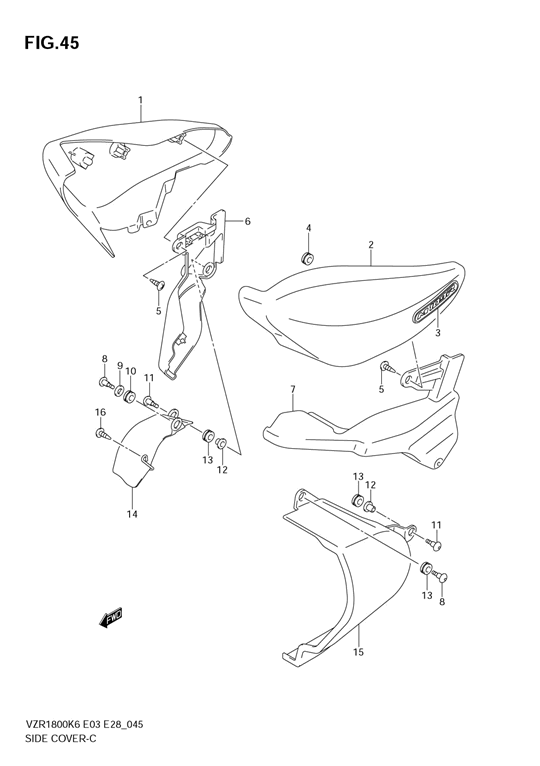

Side cover (vzr1800k6/k7)

Suzuki VZR1800 Boulevard M109R

oem код

название

цена

1-1

47110-48G00-YAY

Cover, Frame Rh (black) ()

1-2

47110-48G00-YD8

Cover, Frame Rh (silver) (model K6)

1-3

47110-48G00-YLD

Cover, Frame Rh (blue) (model K6)

1-4

47110-48G00-YC3

Cover, Frame Rh (white) (model K7)

1-5

47110-48G00-YHL

Cover, Frame Rh (red) (model K7)

2-1

47210-48G00-YAY

Cover, Frame Lh (black) ()

2-2

47210-48G00-YD8

Cover, Frame Lh (silver) (model K6)

2-3

47210-48G00-YLD

Cover, Frame Lh (blue) (model K6)

2-4

47210-48G00-YC3

Cover, Frame Lh (white) (model K7)

2-5

47210-48G00-YHL

Cover, Frame Lh (red) (model K7)

.emblem ()

.grommet ()

Винт

Cover, Side Lower Rh ()

47221-48G00

Cover, Side Lower Lh ()

Screw, Brace ()

Шайба

Cushion, Lower ()

Screw, Front ()

Spacer ()

.cushion, 8.5x20x8 ()

47130-48G00

Cover, Lower Rh ()

15-1

47231-48G00

Cover, Lower Lh (model K6)

15-2

47231-48G10

Cover, Lower Lh (model K7)

47250-48G00

Bracket Comp, Lo (not Illustrated)
