Топливный бак (модель K4) Оригинальные запчасти для мотоциклов Suzuki GSX750F KATANA (2005)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

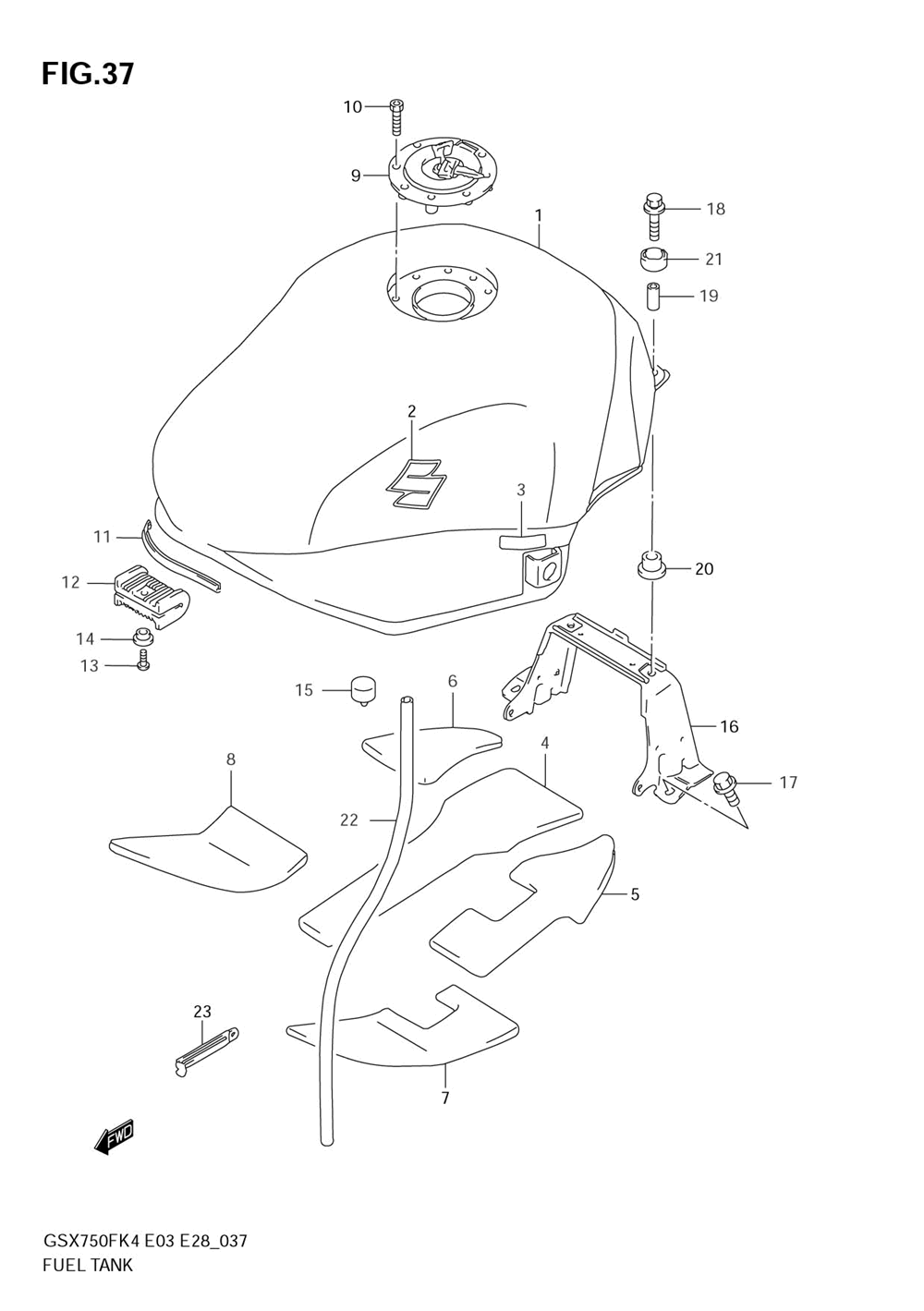

Топливный бак (модель K4)

Suzuki GSX750F KATANA

Топливный бак (модель K4)

#

oem код

название

цена

1-1

44100-08F40-YU8

Tank Assy, Fuel (gray)

Tank Assy, Fuel (gray)

1-2

44100-08F40-YBA

Tank Assy, Fuel (blue)

Tank Assy, Fuel (blue)

1-3

44100-08F50-YU8

Tank Assy, Fuel (gray)

Tank Assy, Fuel (gray)

1-4

44100-08F50-YBA

Tank Assy, Fuel (blue)

Tank Assy, Fuel (blue)

2-1

68111-18G01-0AT

Emblem, Fuel Tan

Emblem, Fuel Tan

3

Защитный элемент

Защитный элемент

4

Shield, Heat No.1

Shield, Heat No.1

5

Shield, Heat No.2

Shield, Heat No.2

6

Shield, Heat No.3

Shield, Heat No.3

7

Shield, Heat No.4

Shield, Heat No.4

8

Shield, Heat No.5

Shield, Heat No.5

9-1

Cap Set, Fuel Tank

Cap Set, Fuel Tank

9-2

Cap Set, Fuel Tank

Cap Set, Fuel Tank

10

Болт

Болт

11

Molding, Fuel Tank

Molding, Fuel Tank

12

Cushion, Fuel Tank Front

Cushion, Fuel Tank Front

13

Винт

Винт

14

Шайба

Шайба

15

.cushion, Front

.cushion, Front

16

Bracket, Rear

Bracket, Rear

17

Plug, T/m Oil Drain

Plug, T/m Oil Drain

18

Болт

Болт

19

Проставка

Проставка

20

Cushion, Rear Lower

Cushion, Rear Lower

21

Cushion, Rear Upper

Cushion, Rear Upper

22

Hose, Water Drain

Hose, Water Drain

23

Clamp, L:120

Clamp, L:120
