  6. Seat tail cover (sv1000k5) not for u.s. market

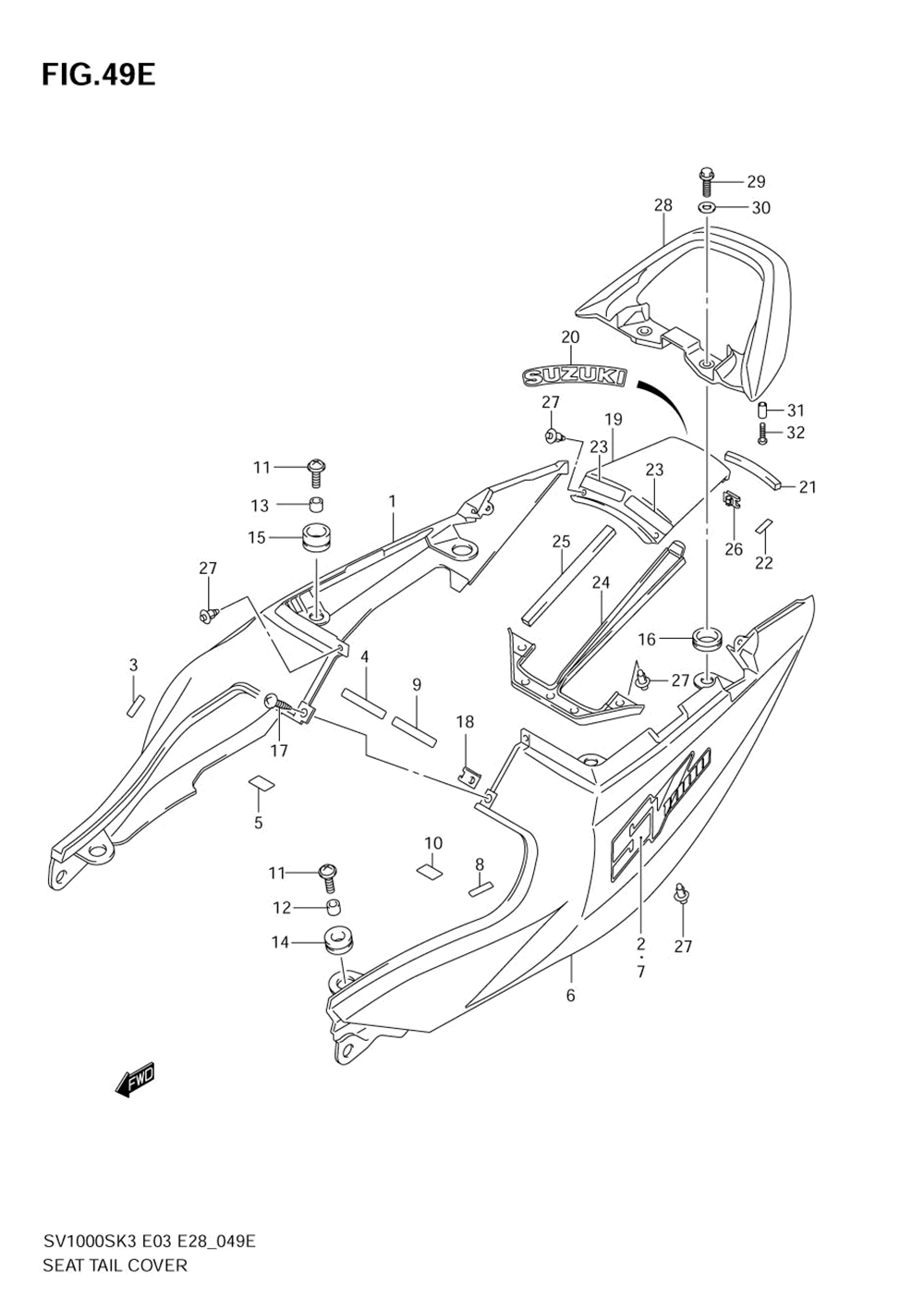

Seat tail cover (sv1000k5) not for u.s. market

Suzuki SV1000, S
Suzuki
#oem кодцена
3
45516-42F00
.tape
4
45517-16G10
.tape, Seat Tail Cover Fr No.
5
47161-10D00
.tape, Seat Tail Cover Fr No.
11
09136-06082
Винт
12
09180-06286
Spacer (frctr)
14
09320-10052
Подушка
15
47115-16G00
Подушка
16
09320-20010
Подушка
17
03241-1512B
Винт
18
09148-05038
Гайка
19-1
45503-16G00-YAY
Cover, Seat Tail, Center
19-3
45503-16G00-YU7
Cover, Seat Tail, Center (red
20-1
68161-16G00-YD8
Эмблема "suzuki"
20-2
68161-16G00-17U
Эмблема "suzuki"
21
45518-16G00
.cushion, Seat Tail Cover Ctr
22
45517-16G00
.tape, Seat Tail Cover
24-1
45514-16G00-YAY
Cover, Seat Tail, Rear
24-2
45514-16G00-YD8
Cover, Seat Tail, Rear
24-3
45514-16G00-YU7
Cover, Seat Tail, Rear (red)
25
45519-16G00
Cushion, Seat Tail Cover Rr
26
09148-06018
Гайка
27
09409-06314-5PK
Клипса (черн.)
28-1
46211-16G00-YAY
Handle, Pillion Rider (black)
28-2
46211-16G00-YD8
Handle, Pillion Rider (silver
28-3
46211-16G00-YHH
Handle, Pillion Rider (red)
29
01551-0840B
Болт
30
09160-08501
Шайба
31
09180-06271
Проставка
32
09139-06112
Винт
