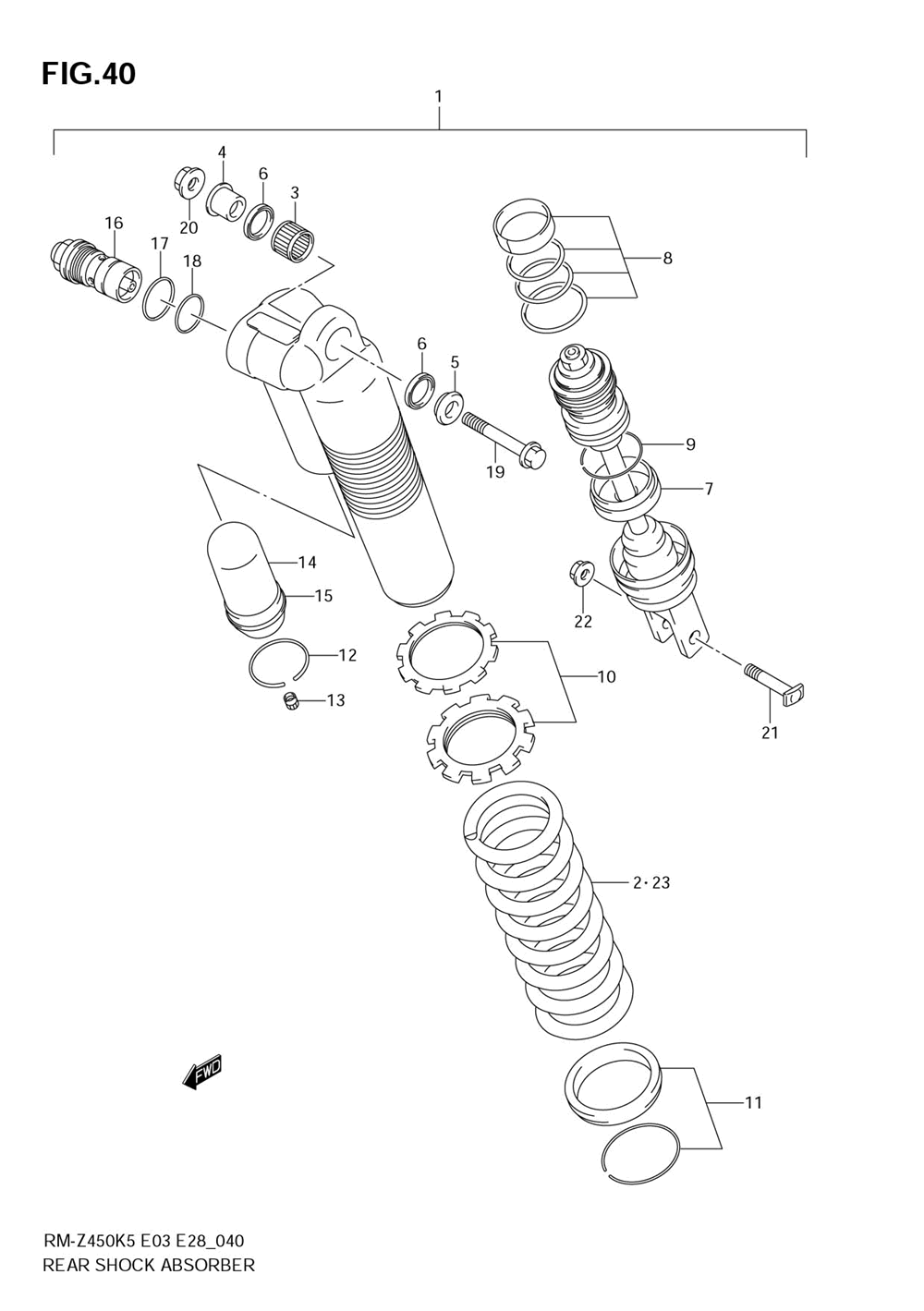

Rear shock absorber (model k5)

Suzuki RM Z450

Rear shock absorber (model k5)

#

oem код

название

цена

1-1

62100-35G20-163

Absorber Assy, Rr Shock

Absorber Assy, Rr Shock

2

.spring (k=5.5)

.spring (k=5.5)

3

.bearing (16x22x12)

.bearing (16x22x12)

4

.spacer, Bearing Rh

.spacer, Bearing Rh

5

.spacer, Bearing Lh

.spacer, Bearing Lh

6

Seal, Rear (16x22x2.5)

Seal, Rear (16x22x2.5)

7

.rod, Piston

.rod, Piston

8

.o Ring Set

.o Ring Set

9

Кольцо стопорное

Кольцо стопорное

10

.adjuster Set

.adjuster Set

11

.spring Seat Set

.spring Seat Set

12

Кольцо стопорное

Кольцо стопорное

13

Колпачек

Колпачек

14

.bladder

.bladder

15

.cap, Chamber

.cap, Chamber

16

.bolt, Plug

.bolt, Plug

17

.o Ring, Outer

.o Ring, Outer

18

.o Ring, Inner

.o Ring, Inner

19

Болт

Болт

20

Гайка

Гайка

21

Bolt, Lower

Bolt, Lower

22

Nut, Lower

Nut, Lower

23-1

Spring (soft, K=5.1)

Spring (soft, K=5.1)

23-2

Spring (soft, K=5.3)

Spring (soft, K=5.3)

23-3

Spring (hard, K=5.7)

Spring (hard, K=5.7)

23-4

Spring (hard, K=5.9)

Spring (hard, K=5.9)
