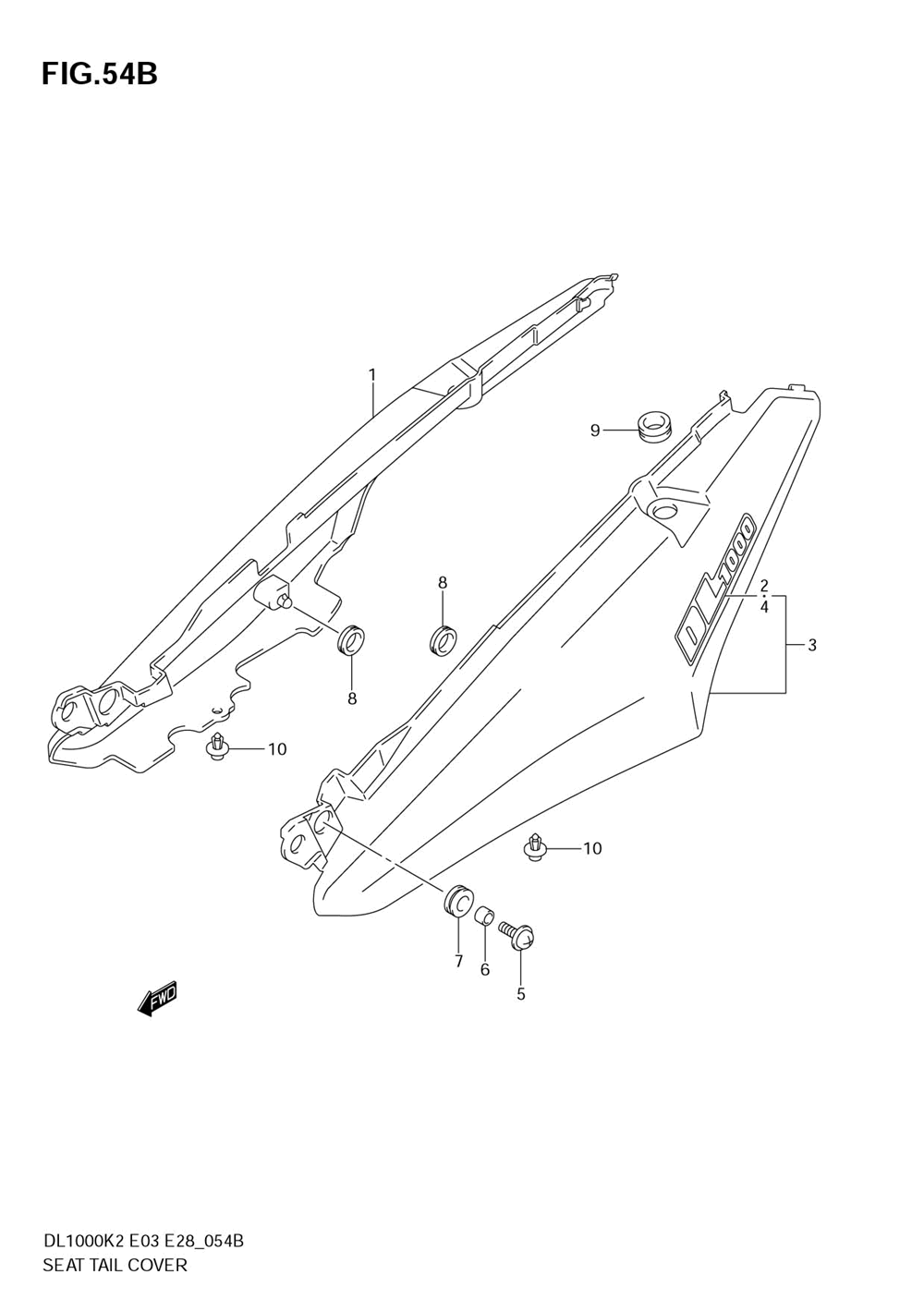

Seat tail cover (model k4)

Suzuki DL1000 V-STROM

Seat tail cover (model k4)

#

oem код

название

цена

1-1

45501-06G10-YD8

Cover Assy, Seat Tail, R

Cover Assy, Seat Tail, R

1-2

45501-06G10-YAY

Cover Assy, Seat Tail, R

Cover Assy, Seat Tail, R

1-3

45501-06G10-YBA

Cover Assy, Seat Tail, R

Cover Assy, Seat Tail, R

2-1

68161-06G10-AMT

.emblem, Seat Tail Cover

.emblem, Seat Tail Cover

2-2

68161-06G10-AMR

.emblem, Seat Tail Cover

.emblem, Seat Tail Cover

2-3

68161-06G10-AMW

.emblem, Seat Tail Cover

.emblem, Seat Tail Cover

3-1

45502-06G10-YD8

Cover Assy, Seat Tail, L

Cover Assy, Seat Tail, L

3-2

45502-06G10-YAY

Cover Assy, Seat Tail, L

Cover Assy, Seat Tail, L

3-3

45502-06G10-YBA

Cover Assy, Seat Tail, L

Cover Assy, Seat Tail, L

5

Винт

Винт

6

Spacer, Choke Solenoid

Spacer, Choke Solenoid

7

Cushion, Tail Cover Rr Fr

Cushion, Tail Cover Rr Fr

8

Cushion, Brace

Cushion, Brace

9

Cushion, Rear

Cushion, Rear

10

09409-06314-5PK

Клипса (черн.)

Клипса (черн.)
