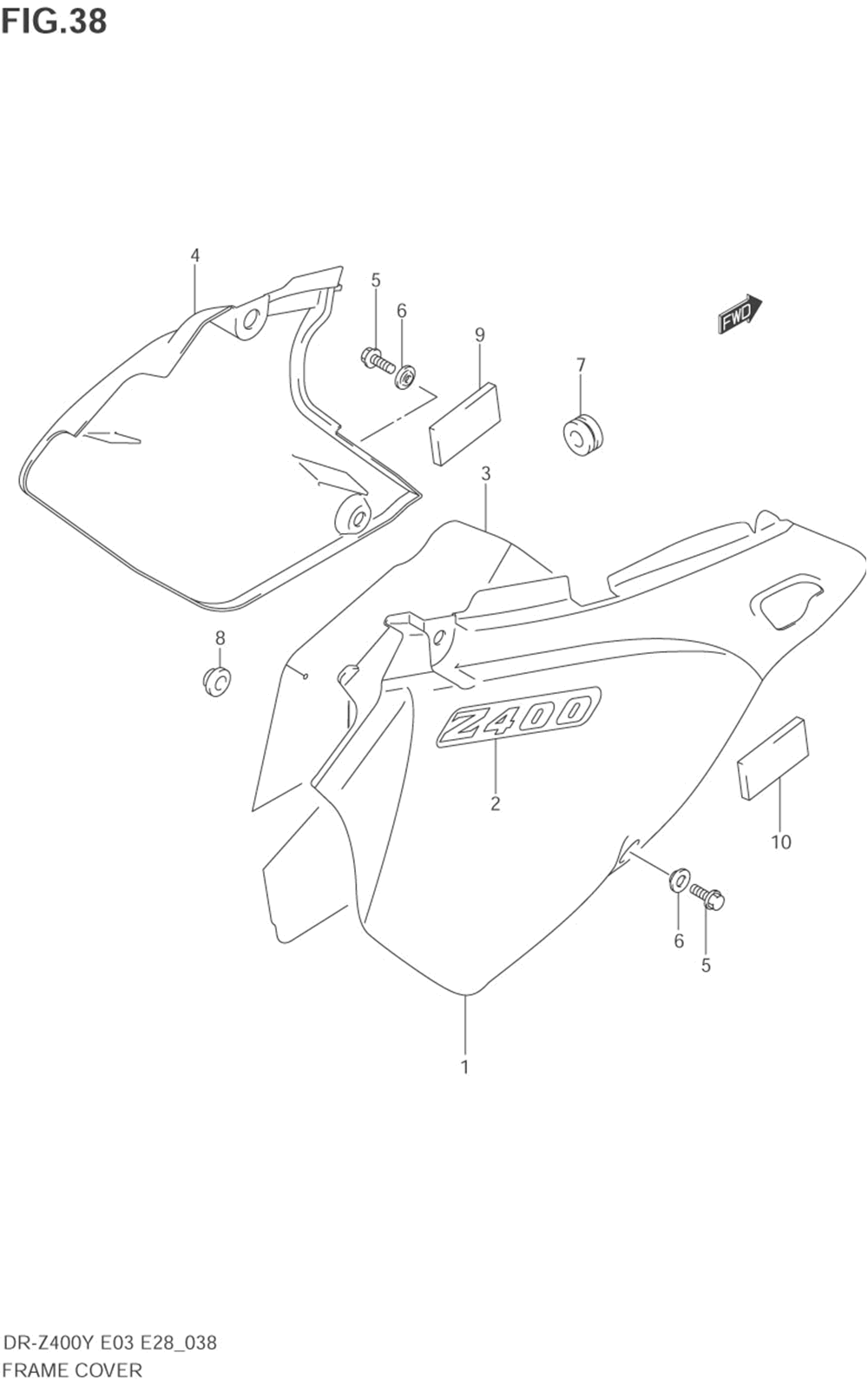

Frame cover (model y/k1/k2)

Suzuki DR-Z400, E

Frame cover (model y/k1/k2)

#

oem код

название

цена

1-1

47111-29F00-30H

Cover, Frame Rh (white)

Cover, Frame Rh (white)

1-2

47111-29F00-YU1

Cover, Frame Rh (yellow)

Cover, Frame Rh (yellow)

2-1

68131-29F00-CW6

Emblem, Frame Cover

Emblem, Frame Cover

2-2

68131-29F10-FR4

Emblem, Frame Cover

Emblem, Frame Cover

3

Shield, Frame Cover Rh

Shield, Frame Cover Rh

4-1

47211-29F00-30H

Cover, Frame Lh (white)

Cover, Frame Lh (white)

4-2

47211-29F00-YU1

Cover, Frame Lh (yellow)

Cover, Frame Lh (yellow)

4-4

47211-29F10-30H

Cover, Frame Lh (white)

Cover, Frame Lh (white)

4-5

47211-29F10-YU1

Cover, Frame Lh (yellow)

Cover, Frame Lh (yellow)

5

Болт

Болт

6

Washer, Guide Rr Brake Hose

Washer, Guide Rr Brake Hose

7

Подушка

Подушка

8

Cushion, Muffler

Cushion, Muffler

9

Cushion, Cover Front Lh

Cushion, Cover Front Lh

10

Cushion, Cover Front Rh

Cushion, Cover Front Rh
