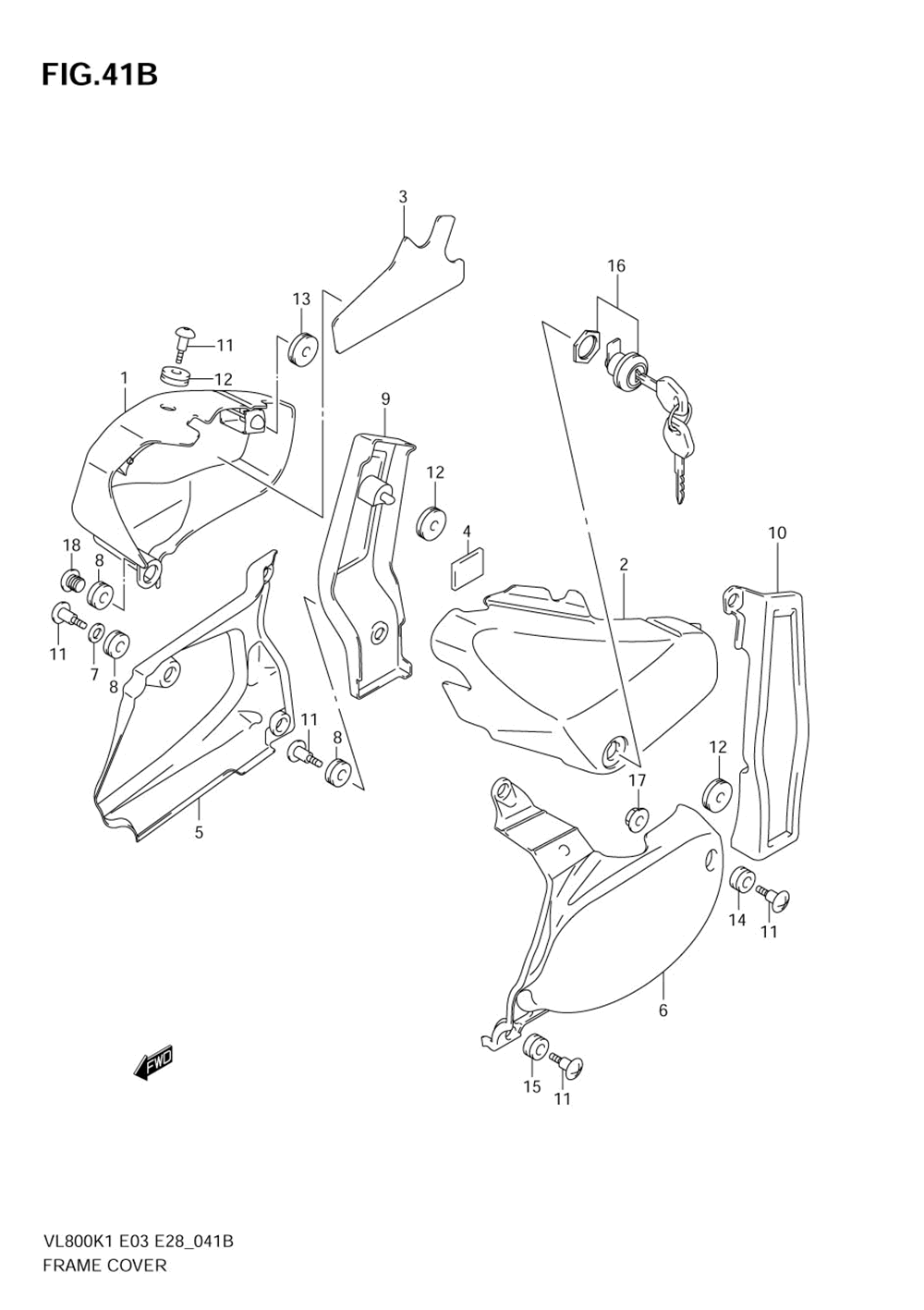

Frame cover (model k3) Оригинальные запчасти для мотоциклов Suzuki VL800,Z VOLUSIA ; C50,T,Z (2004)

Frame cover (model k3)

Suzuki VL800,Z VOLUSIA ; C50,T,Z

oem код

название

цена

1-1

47110-41F30-33J

Cover, Frame Rh (black)

1-2

47110-41F30-YM6

Cover, Frame Rh (silver)

1-3

47110-41F30-YV4

Cover, Frame Rh (green)

1-4

47110-41F30-YC3

Cover, Frame Rh (white)

1-5

47110-41F40-33J

Cover, Frame Rh (black)

1-6

47110-41F40-YM6

Cover, Frame Rh (silver)

1-7

47110-41F40-YV4

Cover, Frame Rh (green)

1-8

47110-41F40-YC3

Cover, Frame Rh (white)

2-1

47211-41F01-33J

Cover, Side, L(bl

2-2

47211-41F01-YM6

Cover, Side, L(si

2-3

47211-41F01-YV4

Cover, Side, L(gr

2-4

47211-41F00-YC3

Cover, Frame Lh (white)

47166-41F00

Shield, Frame Cover Rh

Подушка

Cover, Side Lower Rh

Cover, Side Lower Lh

Шайба

.cushion, 8.5x20x8

Cover, Side Rear Rh (black)

47241-41F00-019

Cover, Side Rear Lh (black)

Screw, Brace

Cushion, Brace

.grommet

Cushion, Lower

Cushion Box Front

Lock Set, Fuel Lid

Гайка

Заглушка
