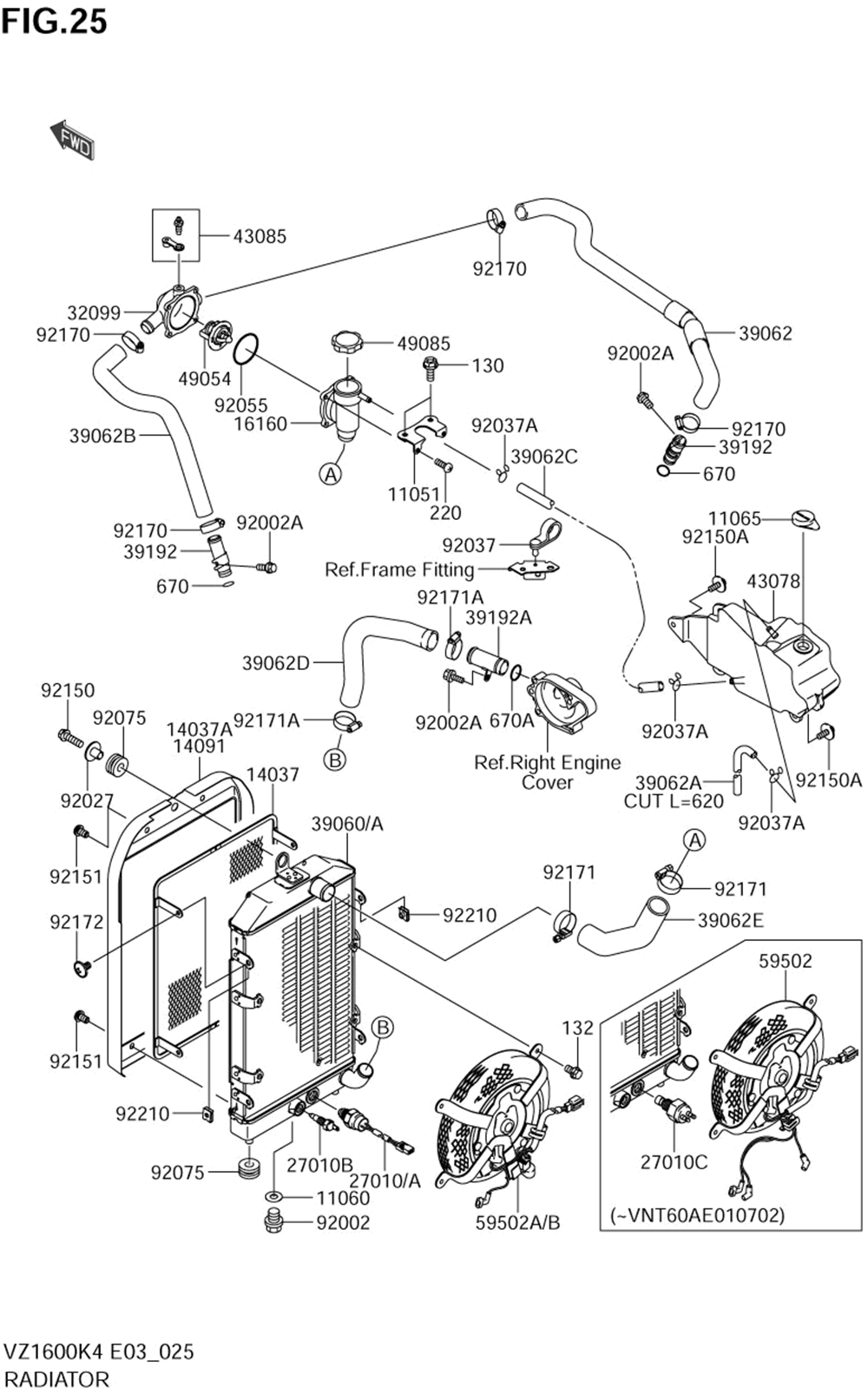

Радиатор

Suzuki VZ1600 MARAUDER
Suzuki
#oem кодцена
11051
K1105-11535
Bracket, Thermostat Case
11060
K1106-01767
Gasket, Drain Plug
11065
K1106-51093
Cap, Coolant
14037
K1403-70014
Screen, Inner
14037A
K1403-71301
Водозаборная решетка
14091
K1409-10428
Покрытие
16160
K1616-00038
Body
27010
K2701-00024
Switch, Fan (05 Model04 Model ->vnt60ae010703)
27010B
K2701-01305
Switch, Warning
27010C
K2701-01364
Switch, Fan
32099
K3209-91201
Корпус
39060
K3906-00019
Радиатор
39062
K3906-20030
Hose-cooling, Thermo-rr Case
39062A
K3906-21144
Hose-cooling, 5.5x10.5x1500, Wh
39062B
K3906-21785
Hose-cooling, Fr Head-thermo
39062C
K3906-21796
Hose-cooling, Thermo-reser
39062D
K3906-21850
Hose-cooling, Radiator-pump
39062E
K3906-21892
Hose-cooling, Thermo-radiator
39192
K3919-21094
Pipe-water
39192A
K3919-21096
Pipe-water
43078
K4307-81180
Reservoir
43085
KK430-85001
Breather-brake
49054
K4905-41067
Термостат
49085
K4908-50002
Cap-assy-pressure
59502
K5950-20004
Fan-assy
59502A
K5950-20013
Fan-assy (05 Model04 Model ->vnt60ae010703)
92002
K9200-21311
Bolt, Flanged, 10x10
92002A
K9200-21569
Болт М6x12
92027
K9202-71450
Collar, L=13.1, Black
92037
K9203-71163
Clamp, Speed, L=58
92037A
KK920-37147
Зажим
92055
KK920-55112
Ring-o, 53.5x2.6
92075
K9207-51690
Демпфер
92150
K9215-01010
Болт М6х20
92150A
K9215-01504
Bolt, Flanged, 6x14
92151
K9215-11809
Болт 6х10
92170
K9217-01032
Clamp, Cooling Hose
92171
K9217-10179
Зажим
92171A
K9217-10261
Зажим
92172
K9217-20005
Screw, 6x10
92210
K9221-01125
Гайка
130
KK130-J0616
Bolt-flanged, 6x16, Black
132
KK132-J0610
Bolt-flanged-small, 6x10
220
KK220-D0514
Screw-pan-cros, 5x14
670
KK670-B2014
O Ring, 14mm
670A
KK670-B2018
O Ring, 18mm
