Передняя коническая зубчатая передача Оригинальные запчасти для мотоциклов Suzuki VZ1600 MARAUDER ,M95, E33 (2004)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

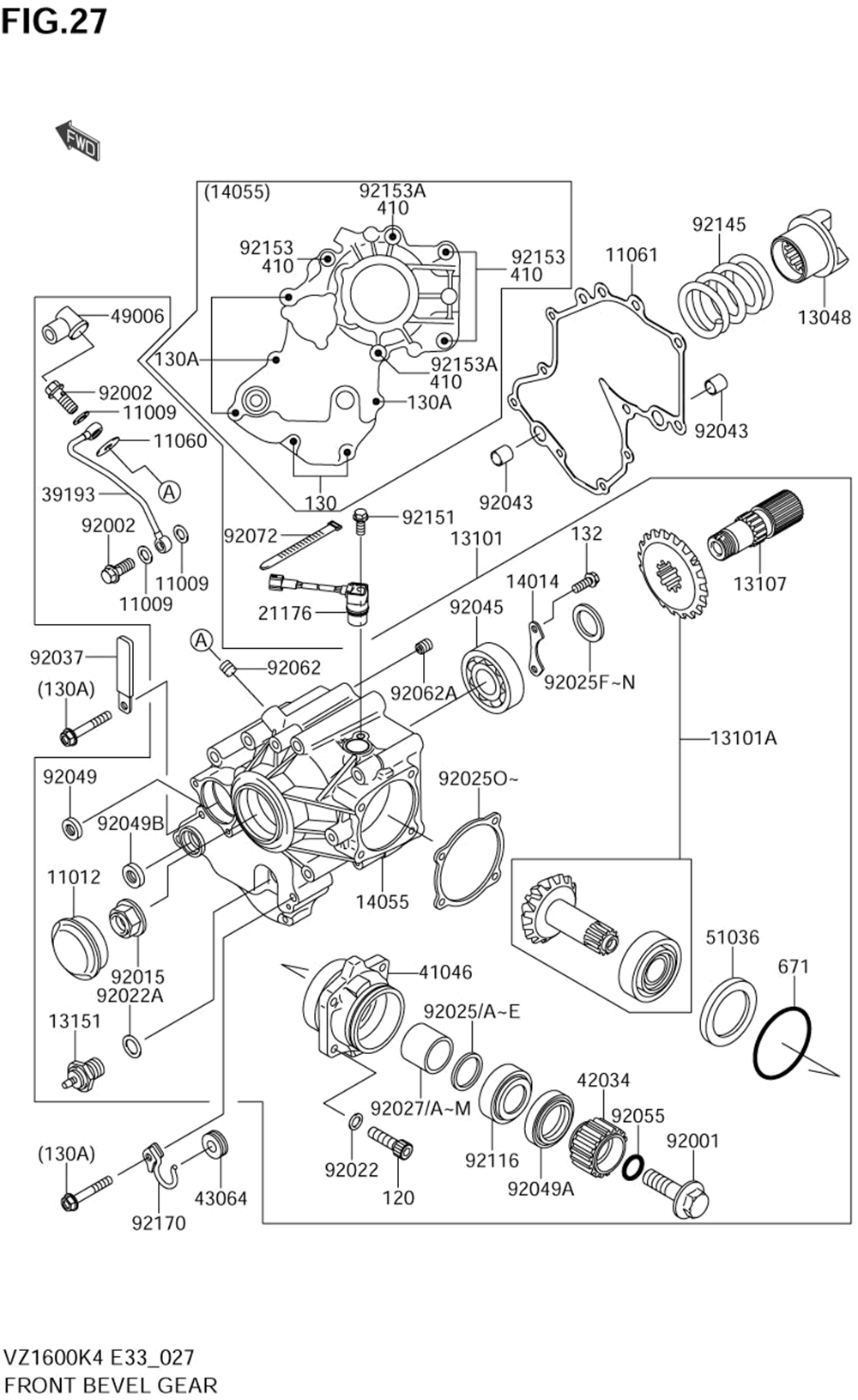

Передняя коническая зубчатая передача

Suzuki VZ1600 MARAUDER ,M95, E33

Передняя коническая зубчатая передача

#

oem код

название

цена

11009

Gasket, 8.2x14x1.0

Gasket, 8.2x14x1.0

11012

Крышка

Крышка

11060

Gasket, Oil Pipe, 8.2x25x1.0

Gasket, Oil Pipe, 8.2x25x1.0

11061

Gasket, Bevel Gear Case

Gasket, Bevel Gear Case

13048

Cam-damper

Cam-damper

13101

Gear-assy

Gear-assy

13101A

Gear-assy, Bevel, Fr

Gear-assy, Bevel, Fr

13107

Shaft, Bevel, Fr

Shaft, Bevel, Fr

13151

Switch-comp, Neutral

Switch-comp, Neutral

14014

Plate-position

Plate-position

14055

Case-gear, Front Bevel

Case-gear, Front Bevel

21176

Датчик скорости

Датчик скорости

39193

Pipe-oil

Pipe-oil

41046

Housing-bearing

Housing-bearing

42034

Coupling, Fr Driven

Coupling, Fr Driven

43064

Grommet, Hose Clamp

Grommet, Hose Clamp

49006

Boot, Dust

Boot, Dust

51036

Крышка крыльчатки

Крышка крыльчатки

92001

Bolt, Flanged, 12x42

Bolt, Flanged, 12x42

92002

Bolt, 8x20

Bolt, 8x20

92015

Nut, 24mm

Nut, 24mm

92022

Washer, 8.5x13x1

Washer, 8.5x13x1

92022A

Washer, 12x18x1.0

Washer, 12x18x1.0

92025

Shim, 25.2x29.8x1.70

Shim, 25.2x29.8x1.70

92025A

Shim, 25.2x29.8x1.72

Shim, 25.2x29.8x1.72

92025B

Shim, 25.2x29.8x1.74

Shim, 25.2x29.8x1.74

92025C

Shim, 25.2x29.8x1.76

Shim, 25.2x29.8x1.76

92025D

Shim, 25.2x29.8x1.78

Shim, 25.2x29.8x1.78

92025E

Shim, 25.2x29.8x1.80

Shim, 25.2x29.8x1.80

92025F

Shim, 25.3x36x0.15

Shim, 25.3x36x0.15

92025G

Shim, 25.3x36x0.50

Shim, 25.3x36x0.50

92025H

Shim, 25.3x36x0.60

Shim, 25.3x36x0.60

92025I

Shim, 25.3x36x0.70

Shim, 25.3x36x0.70

92025J

Shim, 25.3x36x0.80

Shim, 25.3x36x0.80

92025K

Shim, 25.3x36x0.90

Shim, 25.3x36x0.90

92025L

Shim, 25.3x36x1.00

Shim, 25.3x36x1.00

92025M

Shim, 25.3x36x1.10

Shim, 25.3x36x1.10

92025N

Shim, 25.3x36x1.20

Shim, 25.3x36x1.20

92025O

Shim, T=0.15

Shim, T=0.15

92025P

Shim, T=0.50

Shim, T=0.50

92025Q

Shim, T=0.60

Shim, T=0.60

92025R

Shim, T=0.70

Shim, T=0.70

92025S

Shim, T=0.80

Shim, T=0.80

92025T

Shim, T=0.90

Shim, T=0.90

92025U

Shim, T=1.00

Shim, T=1.00

92025V

Shim, T=1.20

Shim, T=1.20

92025W

Shim, T=0.10

Shim, T=0.10

92027

Collar, 25.2x29.8x22.8

Collar, 25.2x29.8x22.8

92027A

Collar, 25.2x29.8x22.9

Collar, 25.2x29.8x22.9

92027B

Collar, 25.2x29.8x23

Collar, 25.2x29.8x23

92027C

Collar, 25.2x29.8x23.1

Collar, 25.2x29.8x23.1

92027D

Collar, 25.2x29.8x23.2

Collar, 25.2x29.8x23.2

92027E

Collar, 25.2x29.8x23.3

Collar, 25.2x29.8x23.3

92027F

Collar, 25.2x29.8x23.4

Collar, 25.2x29.8x23.4

92027G

Collar, 25.2x29.8x23.5

Collar, 25.2x29.8x23.5

92027H

Collar, 25.2x29.8x23.6

Collar, 25.2x29.8x23.6

92027I

Collar, 25.2x29.8x23.7

Collar, 25.2x29.8x23.7

92027J

Collar, 25.2x29.8x23.8

Collar, 25.2x29.8x23.8

92027K

Collar, 25.2x29.8x23.9

Collar, 25.2x29.8x23.9

92027L

Collar, 25.2x29.8x24

Collar, 25.2x29.8x24

92027M

Collar, 25.2x29.8x24.1

Collar, 25.2x29.8x24.1

92037

Clamp, L=60

Clamp, L=60

92043

Pin, 11.5x14x14

Pin, 11.5x14x14

92045

Bearing-ball, 6305c2

Bearing-ball, 6305c2

92049

Seal-oil, Sd-8187

Seal-oil, Sd-8187

92049A

Seal-oil, Tc35527

Seal-oil, Tc35527

92049B

Seal-oil, Tc13225.5

Seal-oil, Tc13225.5

92055

Ring-o, Id=18.64

Ring-o, Id=18.64

92062

Nozzle, 6x8, Green

Nozzle, 6x8, Green

92062A

Nozzle, 10x10, Silver

Nozzle, 10x10, Silver

92072

Band, L=202

Band, L=202

92116

Bearing-roller, Hi-cap30205

Bearing-roller, Hi-cap30205

92145

Spring, Cam Damper

Spring, Cam Damper

92151

Bolt, Flanged, M6x14

Bolt, Flanged, M6x14

92153

Bolt, 8x80

Bolt, 8x80

92153A

Bolt, 8x95

Bolt, 8x95

92170

Зажим

Зажим

120

Bolt-socket, 8x3

Bolt-socket, 8x3

130

Болт

Болт

130A

Болт

Болт

132

Bolt Flanged, S

Bolt Flanged, S

410

Washer-plain-small, 8mm

Washer-plain-small, 8mm

671

O Ring, 65mm

O Ring, 65mm

21176

Датчик скорости

Датчик скорости
