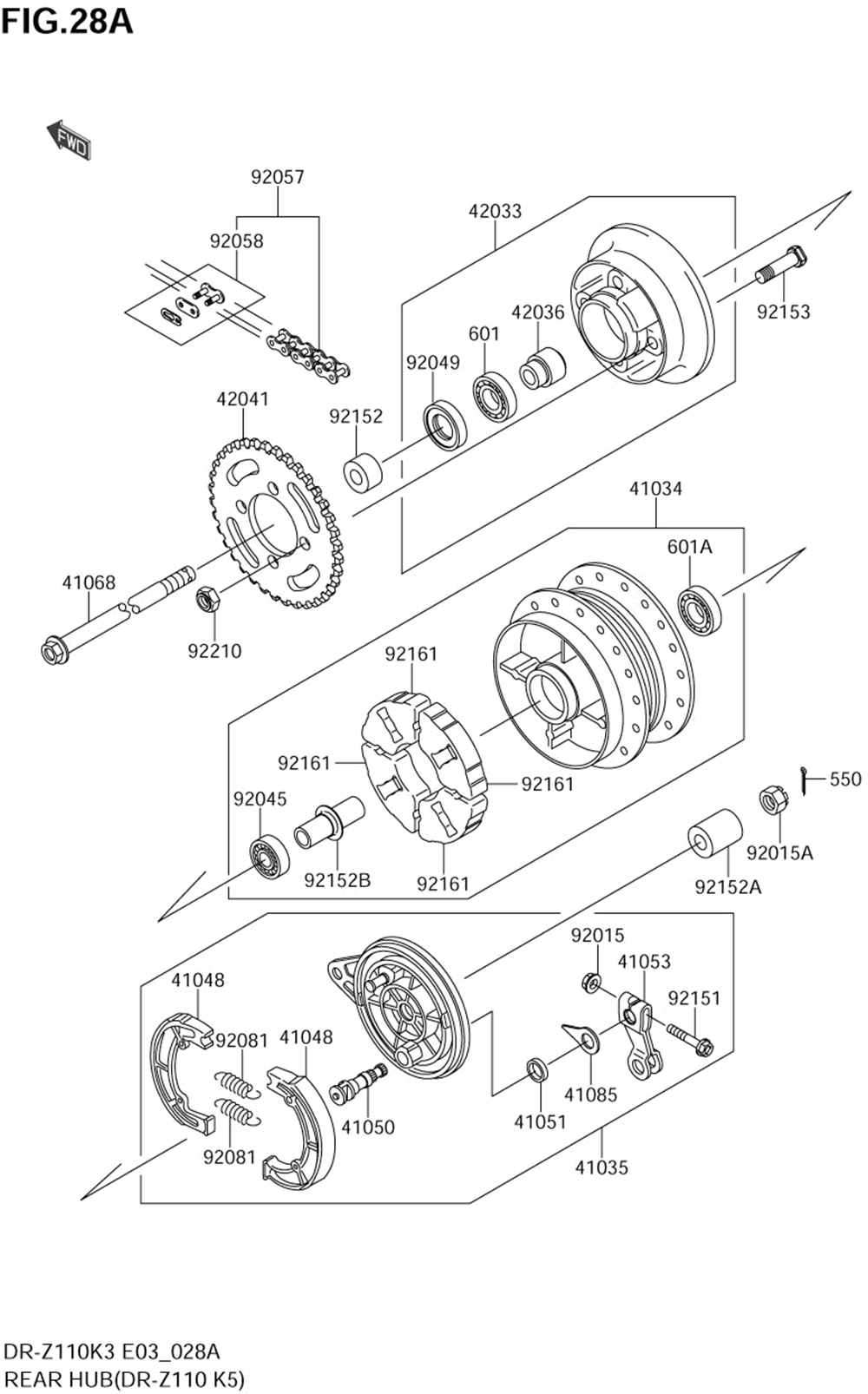

Rear hub(dr-z110 k5)

Suzuki DR-Z110
Suzuki
#oem кодцена
41034
K4103-40010
Drum-assy, Rear Brake
41035
K4103-51542
Panel-assy-brake, Rr
41048
K4104-81141
Shoe-brake
41050
K4105-01082
Cam-brake
41051
KK410-51001
Кольцо
41053
K4105-31089
Lever-brake Cam
41068
K4106-80016
Axle, Rr
41085
K4108-51079
Indicator
42033
K4203-31223
Coupling-assy, Rr Hub
42036
K4203-61292
Sleeve, Rr Hub Coupling, L=29
42041
K4204-10006
Sprocket-hub, 33t
92015
K9201-51193
Гайка 6мм
92015A
K9201-51870
Nut, Castle, 12mm
92045
K9204-51308
Bearing-ball, 6201zc3/5c
92049
K9204-91490
Seal-oil, Sc26x42x8
92057
K9205-70090
Chain, Drive, Did420dxx86l
92058
K9205-80006
Замок цепи
92081
K9208-11766
Скоба
92151
K9215-11209
Bolt, Flanged, 6x34
92152
K9215-21405
Collar, Rr Axle, Lh, L=14.8
92152A
K9215-21406
Collar, Rr Axle, Rh, L=32
92152B
K9215-21409
Collar, Rear Brake Drum, L=58
92153
K9215-31120
Bolt, 10x36
92161
K9216-10084
Damper, Rr Hub Shock
92210
K9221-01351
Nut, Lock, 10mm
550
KK550-S2520
Pin-cotter, 2.5x20
601
K601B-6004U
Bearing-ball, #6004uc3
601A
K601B-6301U
Bearing-ball, #6301uc3
