Сиденье (model k3) Оригинальные запчасти для мотоциклов Suzuki GSX1300R,Z HAYABUSA (2003)

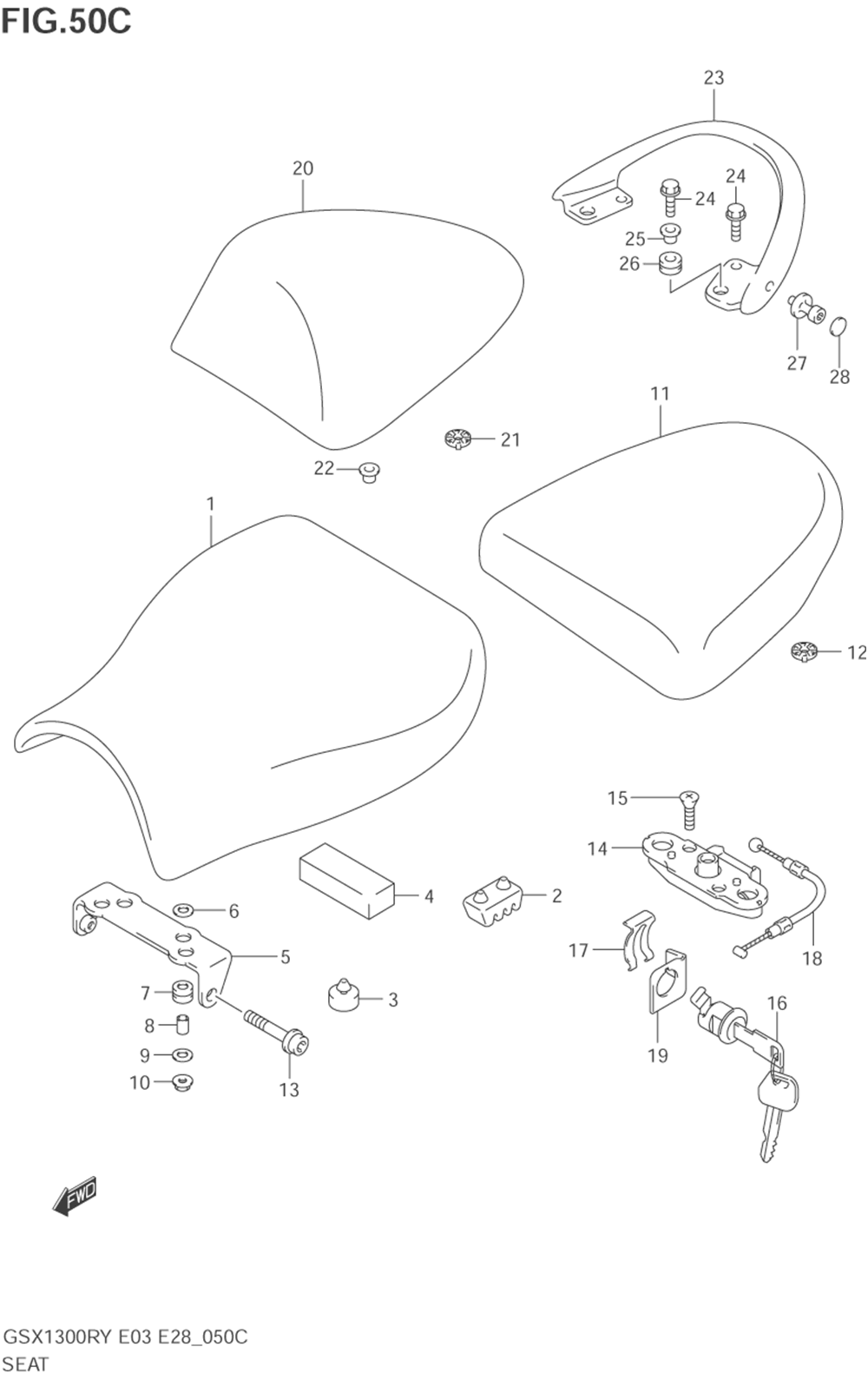

Сиденье (model k3)

Suzuki GSX1300R,Z HAYABUSA

oem код

название

цена

Seat Assy (black)

.cushion

.cushion, Front

.cushion

.bracket, Seat Front Rh

09160-06066

Washer, Throttle Lever

.cushion (10x20x10)

Распорка

.washer, Seat

Гайка

Seat Assy, Pillion (black)

45213-31300

.cushion

45191-24F00

Bolt, Seat Front (6x40)

Bracket, Seat Su

Винт

Lock Set, Seat

Plate, Seat Lock Assy

45280-24F00

Трос открывания сидения

45288-14F00

Guide, Seat Lock Cable

20-1

45550-24F10-YU8

Box, Seat Tail (gray) (gsx1300rk3for Kt7)

20-2

45550-24F10-YD8

Box, Seat Tail (silver) (gsx1300rk3for Cn5,la1)

20-3

45550-24F20-019

Box, Seat Tail (black) (gsx1300rzk3 E28for 019)

20-4

45550-24F10-YAV

Box, Seat Tail (orange) (gsx1300rzk3 E3,e33for Yav)

47190-24F01

Washer, Frame Co

23-1

46211-24F01-Y7L

Handle, Pillion Rider (black)

23-2

46211-24F01-019

Handle, Pillion Rider (black)

09103-08373

Болт

47190-24F11

Washer, Pillion

46217-24F00

Cushion, Pillion Rider Hdl

46212-24F11

Hook, Handle

09250-05009

Крышка
