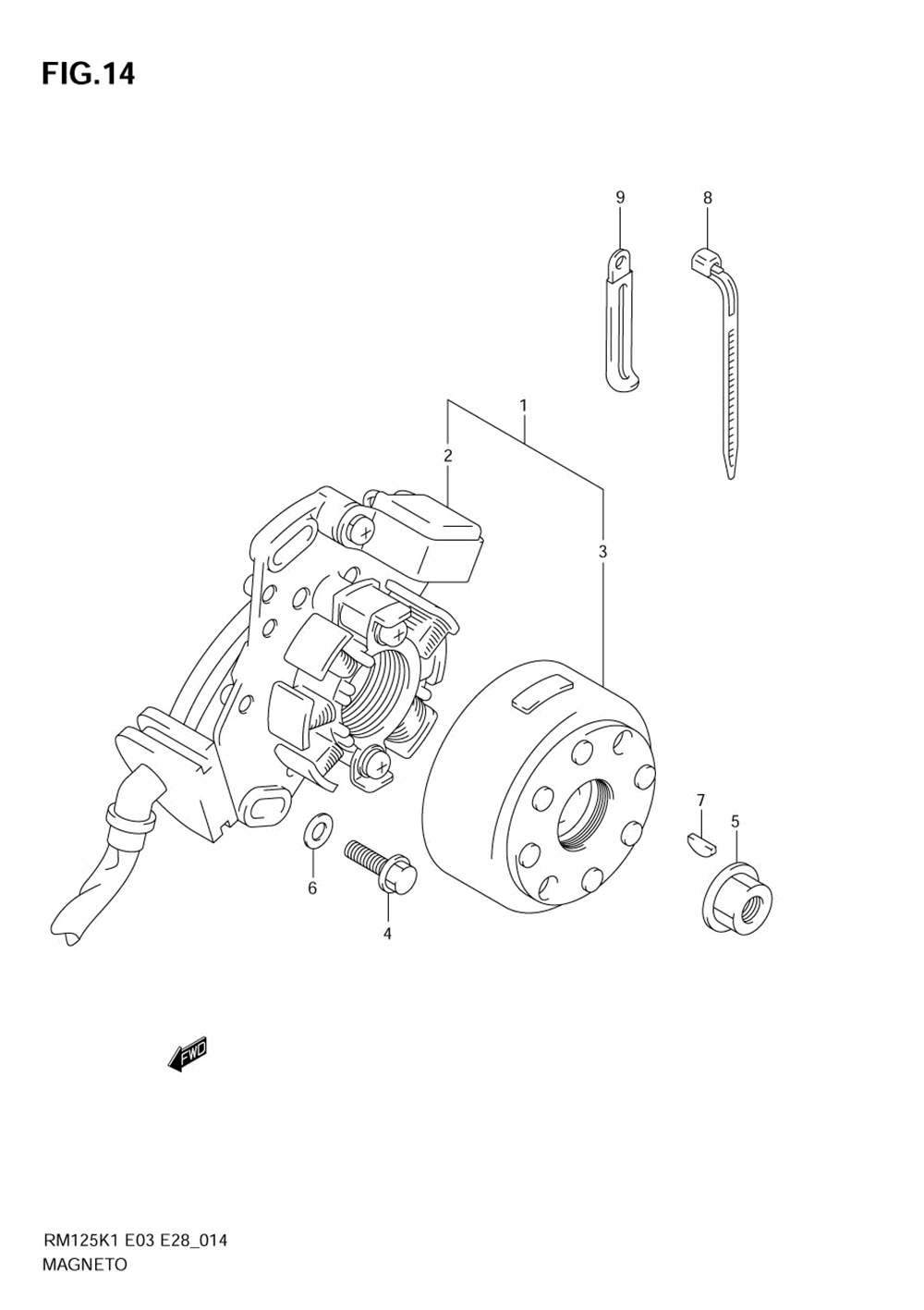

ГЕНЕРАТОР Оригинальные запчасти для мотоциклов Suzuki RM125 (2003)

ГЕНЕРАТОР

Suzuki RM125

oem код

название

цена

1-1

32100-36F00

Magneto Assy (model K1)

1-2

32100-36F10

Magneto Assy (model K2/k3)

1-3

32100-36F20

Magneto Assy (model K4)

1-4

32100-36F30

Magneto Assy (model K5)

1-5

32100-36F40

Magneto Assy (model K6)

2-1

32101-36F00

.stator Assy (model K1)

2-2

32101-36F10

.stator Assy (model K2/k3/k4)

2-3

32101-36F30

.stator Assy (model K5/k6)

3-1

32102-36F00

.rotor Assy (model K1/k2/k3)

3-2

32102-36F20

.rotor Assy (model K4)

4-1

01547-0620B

Bolt, Thermostat Cover (model K1)

4-2

01547-06207

Bolt, Lower (model K2/k3/k4/k5/k6)

Nut, Wheel Rim ()

Шайба

Key ()

Clamp (l:165) (model K1)

09404-06434

Clamp (l:95) (model K2/k3/k4/k5/k6)
