Rear shock absorber (model k1/k2) Оригинальные запчасти для мотоциклов Suzuki RM125 (2003)

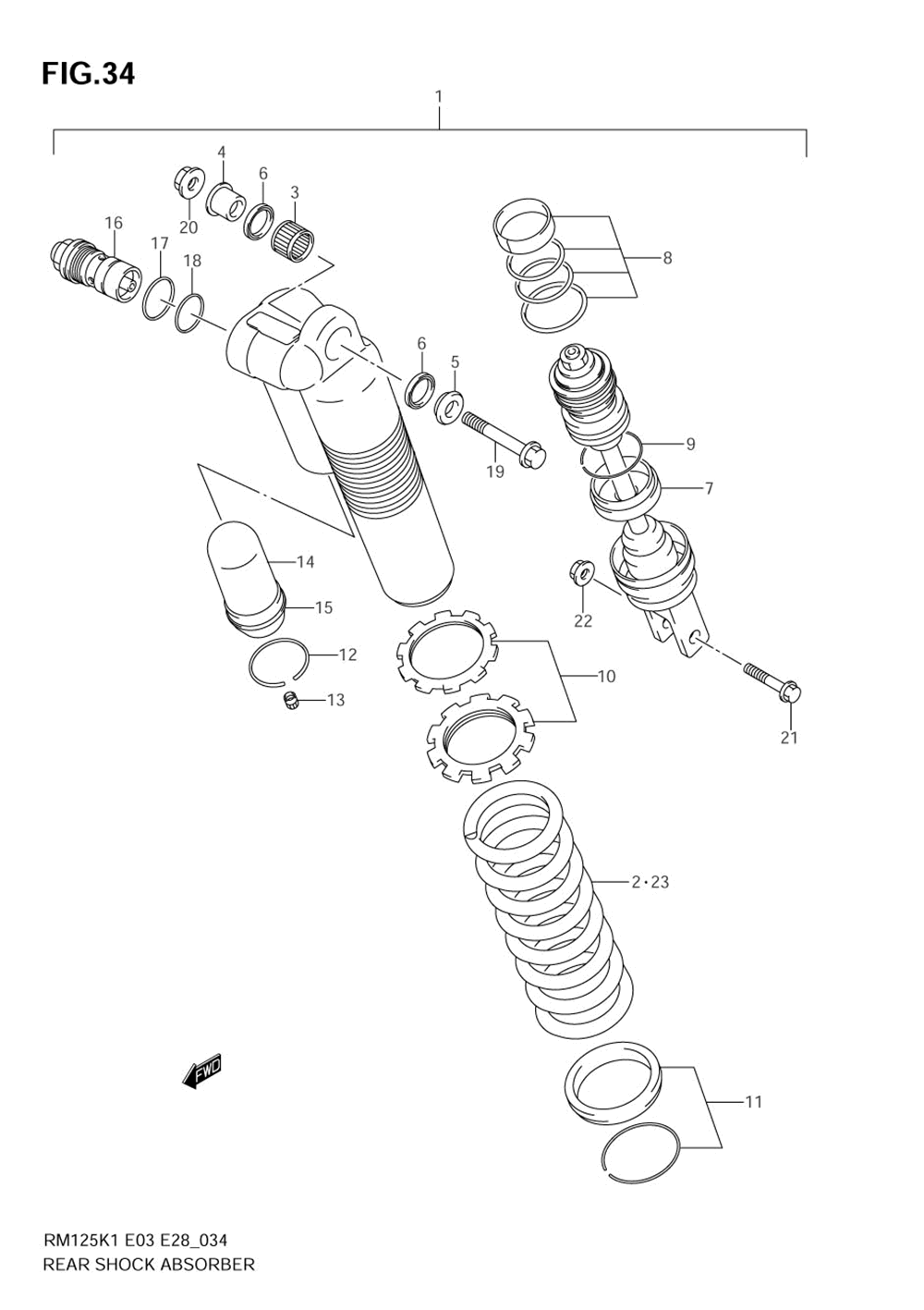

Rear shock absorber (model k1/k2)

Suzuki RM125

oem код

название

цена

1-1

62100-36F20-37W

Absorber Assy, Rr Shock (model K1e3)

1-2

62100-36F10-37W

Absorber Assy, Rr Shock (model K1e28)

1-3

62100-36F50-37W

Absorber Assy, Rr Shock (model K2e3)

1-4

62100-36F40-37W

Absorber Assy, Rr Shock (model K2e28)

62211-36F10

Spring (soft, K=4.8) ()

09263-16033

.bearing (16x22x12) ()

62684-36F00

.spacer, Bearing Rh ()

62685-36F00

.spacer, Bearing Lh ()

09284-16005

Seal, Rear (16x22x2.5) ()

7-1

62120-36F10

.rod, Piston (model K1)

7-2

62120-36F40

.rod, Piston (model K2)

.o Ring Set ()

.ring, Stopper ()

.adjuster Set ()

.spring Seat Set ()

.ring, Stopper ()

.cap ()

.bladder ()

.cap, Chamber ()

16-1

62130-36F10

.bolt, Plug (model K1)

16-2

62130-36F30

.bolt, Plug (model K2)

.o Ring, Outer ()

.o Ring, Inner ()

Болт

Гайка

Bolt, Lower ()

Nut, Lower ()

23-1

62211-36EB0

Spring (soft, K=4.6) (model K1/k2 Opt)

23-2

62211-36F00

Spring (hard, K=5.0) (model K1/k2 Opt)

23-3

62211-36E80

Spring (hard, K=5.2) (model K2 Opt)
