Rear shock absorber (model k5) Оригинальные запчасти для мотоциклов Suzuki RM125 (2003)

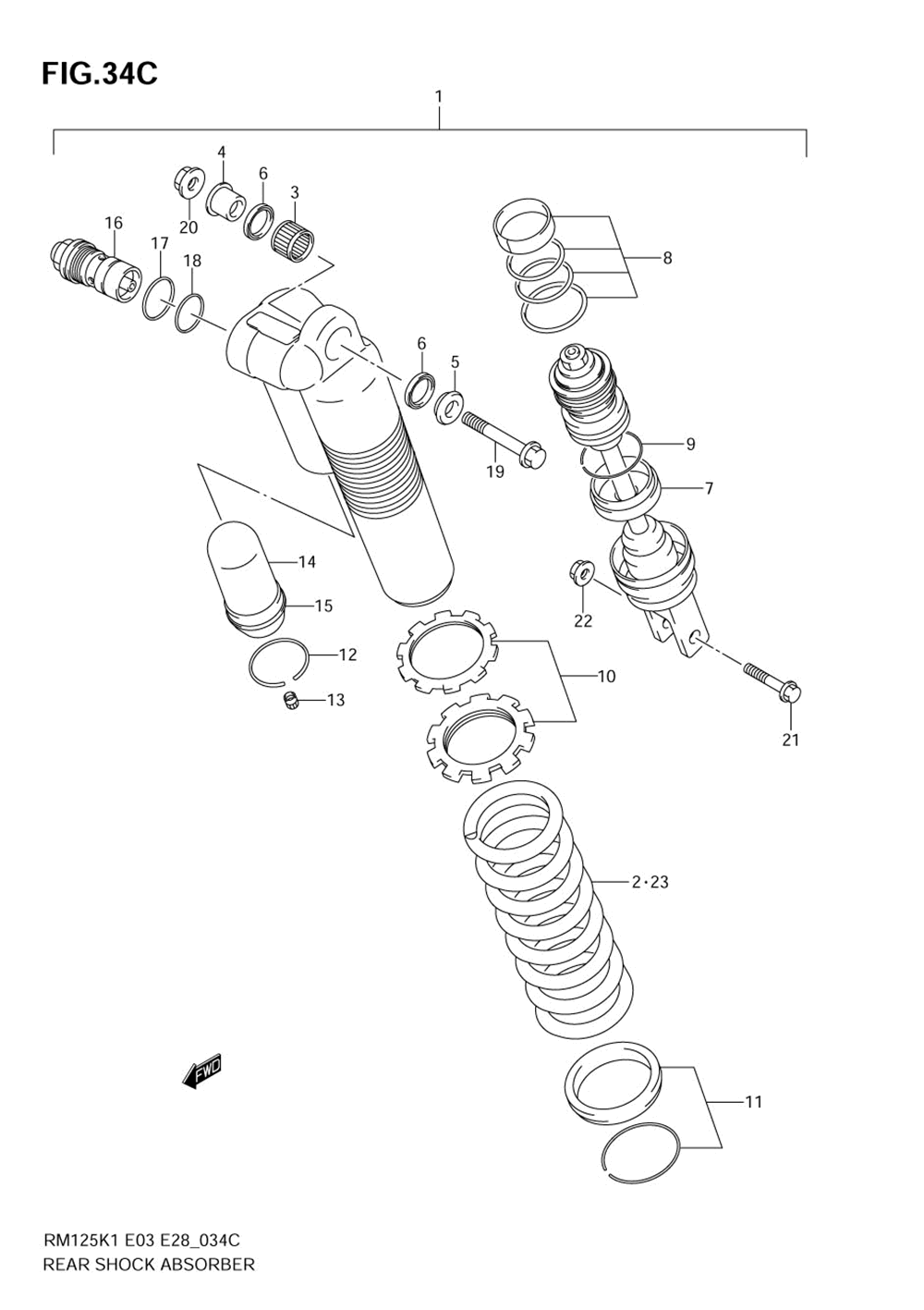

Rear shock absorber (model k5)

Suzuki RM125

oem код

название

цена

1-1

62100-36FH0-163

Absorber Assy, Rr Shock (e3)

62211-37FE0

Spring (soft, K=5.1) ()

09263-16033

.bearing (16x22x12) ()

62684-36F00

.spacer, Bearing Rh ()

62685-36F00

.spacer, Bearing Lh ()

09284-16005

Seal, Rear (16x22x2.5) ()

.rod, Piston ()

.o Ring Set ()

.ring, Stopper ()

.adjuster Set ()

.spring Seat Set ()

.ring, Stopper ()

.cap ()

.bladder ()

.cap, Chamber ()

.bolt, Plug ()

.o Ring, Outer ()

.o Ring, Inner ()

Болт

Гайка

Bolt, Lower ()

Nut, Lower ()

23-1

62211-36F50

Spring (soft, K=4.6) (opt)

23-2

62211-37FA0

Spring (soft, K=4.8) (opt)

23-3

62211-37FF0

Spring (soft, K=5.3) (opt)

23-4

62211-37FG0

Spring (hard, K=5.5) (opt)
