Side cover (model k1) Оригинальные запчасти для мотоциклов Suzuki VL1500, B INTRUDER (2003)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

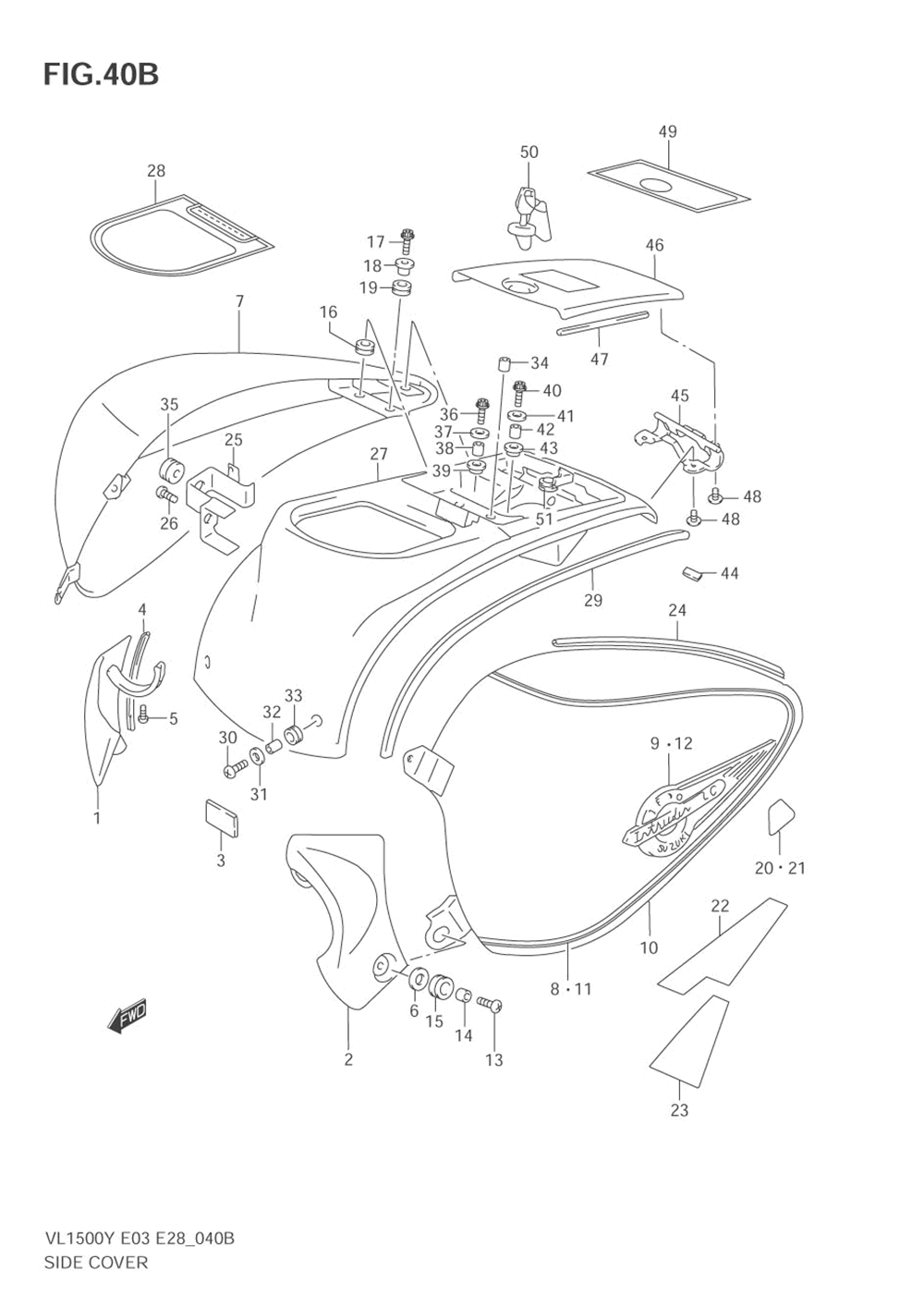

Side cover (model k1)

Suzuki VL1500, B INTRUDER

Side cover (model k1)

#

oem код

название

цена

1

Cover, Frame Head Rh

Cover, Frame Head Rh

2

Cover, Frame Head Lh

Cover, Frame Head Lh

3

Cushion, Fuel Ta

Cushion, Fuel Ta

4

Molding

Molding

5

Screw, Rear

Screw, Rear

6

Шайба

Шайба

7-1

47800-10F20-33J

Cover Assy, Side

Cover Assy, Side

7-2

47800-10F20-FG1

Cover Assy, Side

Cover Assy, Side

7-3

47800-10F20-FG2

Cover Assy, Side

Cover Assy, Side

8-1

68135-10F20-BU8

Tape, Cover Side

Tape, Cover Side

8-2

68135-10F20-EZ7

Tape, Cover Side

Tape, Cover Side

8-3

68135-10F20-EZ9

Tape, Cover Side

Tape, Cover Side

9

Emblem, Rh

Emblem, Rh

10-1

47900-10F20-33J

Cover Assy, Side

Cover Assy, Side

10-2

47900-10F20-FG1

Cover Assy, Side

Cover Assy, Side

10-3

47900-10F20-FG2

Cover Assy, Side

Cover Assy, Side

11-1

68145-10F20-BU8

Tape, Cover Side

Tape, Cover Side

11-2

68145-10F20-EZ7

Tape, Cover Side

Tape, Cover Side

11-3

68145-10F20-EZ9

Tape, Cover Side

Tape, Cover Side

12

Emblem, Lh

Emblem, Lh

13

Болт

Болт

14

Проставка

Проставка

15

.cushion, 8.5x20x8

.cushion, 8.5x20x8

16

Cushion, Lower

Cushion, Lower

17

Болт

Болт

18

Шайба

Шайба

19

Подушка

Подушка

20

Tape, Side Cover Upper Rh

Tape, Side Cover Upper Rh

21

Tape, Side Cover Upper Lh

Tape, Side Cover Upper Lh

22

Cushion, Side Upper Rh No.1

Cushion, Side Upper Rh No.1

23

Cushion, Side Upper Rh No.2

Cushion, Side Upper Rh No.2

24

Molding, Side Upper Lower

Molding, Side Upper Lower

25

Bracket, Side Cover Rh

Bracket, Side Cover Rh

26

Болт

Болт

27

Cover, Meter

Cover, Meter

28

Emblem, Meter Cover

Emblem, Meter Cover

29

Molding

Molding

31

.washer (6.5x18x1.5)

.washer (6.5x18x1.5)

32

Проставка

Проставка

33

Cushion, Muffler Cover

Cushion, Muffler Cover

34

Подушка

Подушка

35

.cushion

.cushion

36

Bolt, Rear Master Cylinder

Bolt, Rear Master Cylinder

37

Шайба (6.5x18x1.6)

Шайба (6.5x18x1.6)

38

Проставка

Проставка

38

Проставка

Проставка

39

Подушка

Подушка

39

Подушка

Подушка

40

Болт

Болт

40

Болт

Болт

45

Hinge, Fuel Lid

Hinge, Fuel Lid

45

Hinge, Fuel Lid

Hinge, Fuel Lid

46

Lid, Fuel Inlet

Lid, Fuel Inlet

46

Lid, Fuel Inlet

Lid, Fuel Inlet

47

Cushion, Lid

Cushion, Lid

47

Cushion, Lid

Cushion, Lid

48

Винт

Винт

48

Винт

Винт

49

Emblem, Fuel Lid

Emblem, Fuel Lid

49

Emblem, Fuel Lid

Emblem, Fuel Lid

50

Lock Set, Fuel Lid

Lock Set, Fuel Lid

50

Lock Set, Fuel Lid

Lock Set, Fuel Lid

51

Cushion, Inlet Cover Rear Lh

Cushion, Inlet Cover Rear Lh

51

Cushion, Inlet Cover Rear Lh

Cushion, Inlet Cover Rear Lh
