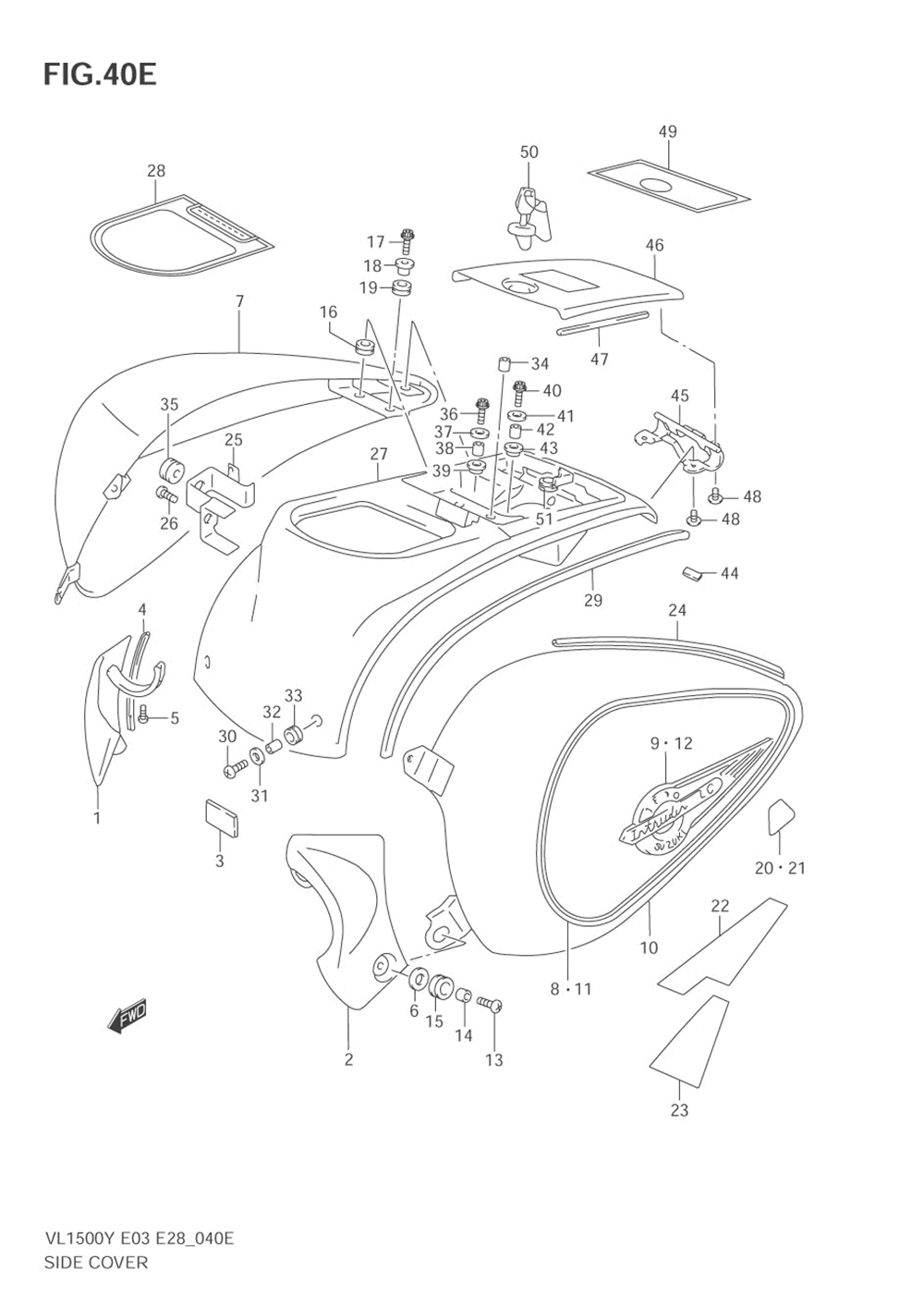

Side cover (model k4)

Suzuki VL1500, B INTRUDER

Side cover (model k4)

#

oem код

название

цена

1

Cover, Frame Head Rh

Cover, Frame Head Rh

2

Cover, Frame Head Lh

Cover, Frame Head Lh

3

Cushion, Fuel Ta

Cushion, Fuel Ta

4

Molding

Molding

5

Screw, Rear

Screw, Rear

6

Шайба

Шайба

7-1

47800-10F30-YAY

Cover Assy, Side Rh (black)

Cover Assy, Side Rh (black)

7-2

47800-10F40-AAV

Cover Assy, Side Rh

Cover Assy, Side Rh

7-3

47800-10F40-AAW

Cover Assy, Side Rh

Cover Assy, Side Rh

8-1

68135-10F30-ADH

.tape, Rh

.tape, Rh

8-2

68135-10F40-ADJ

.tape, Rh

.tape, Rh

8-3

68135-10F40-ADC

.tape, Rh

.tape, Rh

9

Emblem, Rh

Emblem, Rh

10-1

47900-10F30-YAY

Cover Assy, Side Lh (black)

Cover Assy, Side Lh (black)

10-2

47900-10F40-AAV

Cover Assy, Side Lh

Cover Assy, Side Lh

10-3

47900-10F40-AAW

Cover Assy, Side Lh

Cover Assy, Side Lh

11-1

68145-10F30-ADH

.tape, Lh

.tape, Lh

11-2

68145-10F40-ADJ

.tape, Lh

.tape, Lh

11-3

68145-10F40-ADC

.tape, Lh

.tape, Lh

12

Emblem, Lh

Emblem, Lh

13

Болт

Болт

14

Проставка

Проставка

15

.cushion, 8.5x20x8

.cushion, 8.5x20x8

16

Cushion, Lower

Cushion, Lower

17

Болт

Болт

18

Шайба

Шайба

19

Подушка

Подушка

20

Tape, Side Cover Upper Rh

Tape, Side Cover Upper Rh

21

Tape, Side Cover Upper Lh

Tape, Side Cover Upper Lh

22

Cushion, Side Upper Rh No.1

Cushion, Side Upper Rh No.1

23

Cushion, Side Upper Rh No.2

Cushion, Side Upper Rh No.2

24

Molding, Side Upper Lower

Molding, Side Upper Lower

25

Bracket, Side Cover Rh

Bracket, Side Cover Rh

26

Болт

Болт

27

Cover, Meter

Cover, Meter

28

Emblem, Meter Cover

Emblem, Meter Cover

29

Molding

Molding

31

.washer (6.5x18x1.5)

.washer (6.5x18x1.5)

32

Проставка

Проставка

33

Cushion, Muffler Cover

Cushion, Muffler Cover

34

Подушка

Подушка

35

.cushion

.cushion

36

Bolt, Rear Master Cylinder

Bolt, Rear Master Cylinder

37

Шайба (6.5x18x1.6)

Шайба (6.5x18x1.6)

38

Проставка

Проставка

39

Подушка

Подушка

40

Болт

Болт

45

Hinge, Fuel Lid

Hinge, Fuel Lid

46

Lid, Fuel Inlet

Lid, Fuel Inlet

47

Cushion, Lid

Cushion, Lid

48

Винт

Винт

49

Emblem, Fuel Lid

Emblem, Fuel Lid

50

Lock Set, Fuel Lid

Lock Set, Fuel Lid

51

Cushion, Inlet Cover Rear Lh

Cushion, Inlet Cover Rear Lh
