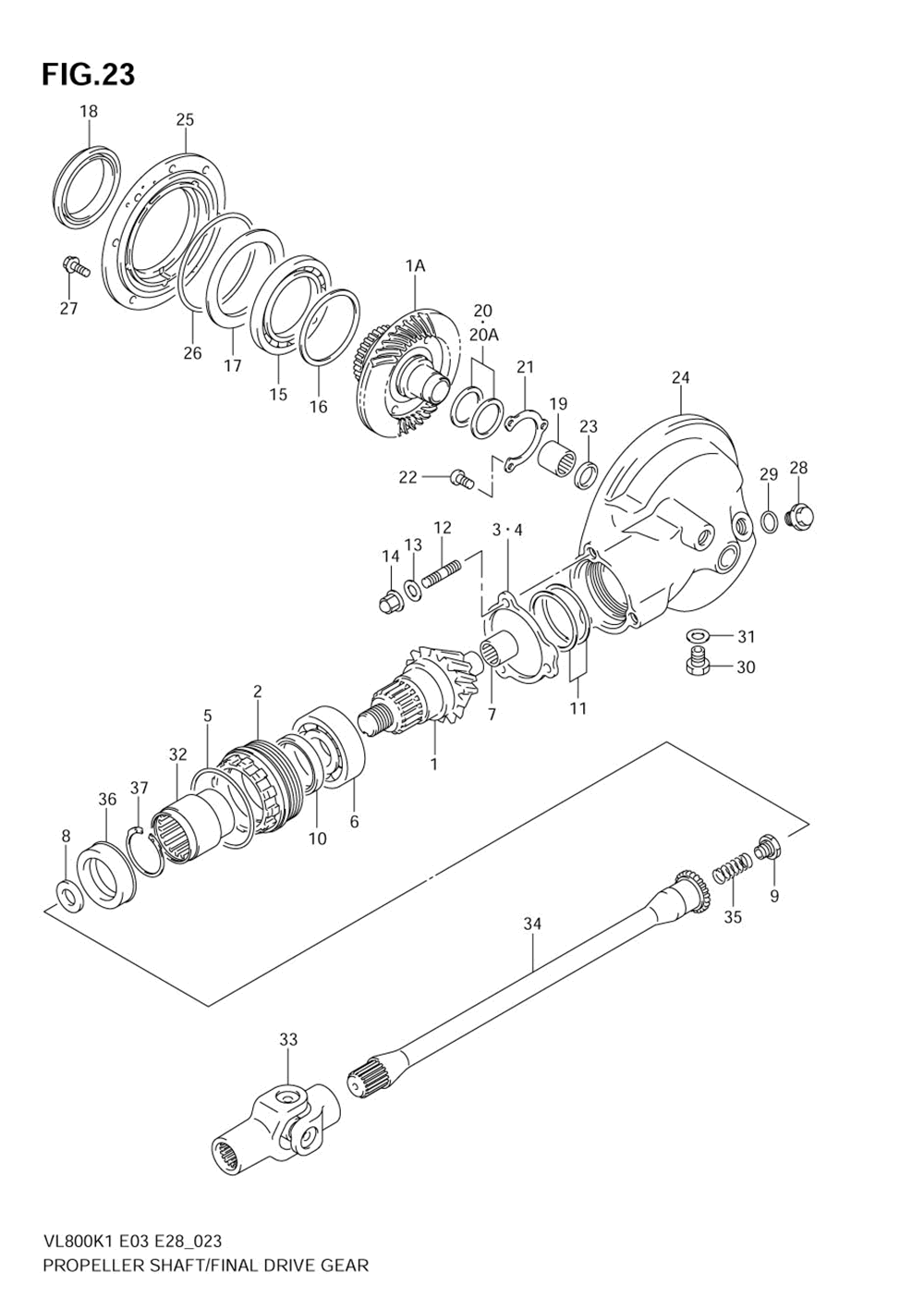

Карданный вал

Suzuki VL800,Z VOLUSIA 2; C50,T,Z
Suzuki
#oem кодцена
27300-38851
Gear & Case Set
1
27311-38A00
.gear, Final Drive Bevel
1A
27320-45C01
.gear, Final Driven Bevel
2
27312-38A00
.stopper, Bearing
3
27313-38A00
.plate
4
27313-38A10
.plate
5
09280-62002
.o Ring (d:1.9, Id:61.6)
6
09267-30005
.bearing (30x62x23.8)
6
09267-30005
.bearing (30x62x23.8)
7
09263-17028
.bearing (17x32x16)
7
09263-17028
.bearing (17x32x16)
8
09160-16029
Washer, Drive Shaft
8
09160-16029
Washer, Drive Shaft
9
09159-16010
Гайка
9
09159-16010
Гайка
10
09283-38009
Seal, Final Driven Gear Oil L
10
09283-38009
Seal, Final Driven Gear Oil L
11
27445-38810
.shim Set, Final (t:0.3/0.35/0.4/0.5/0.6)
11
27445-38810
.shim Set, Final (t:0.3/0.35/0.4/0.5/0.6)
12
09108-10095
Bolt, Stud L:25
12
09108-10095
Bolt, Stud L:25
13
09164-10008
Шайба
13
09164-10008
Шайба
14
09159-10026
Гайка
14
09159-10026
Гайка
15
09262-70001
Bearing, Final Driven Rh
15
09262-70001
Bearing, Final Driven Rh
16
27327-34810
.shim Set, Drive Gear Bearing (t:0.35/0.4/0.5/0.6)
16
27327-34810
.shim Set, Drive Gear Bearing (t:0.35/0.4/0.5/0.6)
17
27328-34200
.plate
17
27328-34200
.plate
18
09289-70001
Seal, Final Driven Gear Oil R
18
09289-70001
Seal, Final Driven Gear Oil R
19
09263-32007
.bearing, Lh (32x46x17.7)
19
09263-32007
.bearing, Lh (32x46x17.7)
20
27326-34820
.shim Set, Final Drive Gear (t:1.05/1.1/1.2/1.25/1.35)
20
27326-34820
.shim Set, Final Drive Gear (t:1.05/1.1/1.2/1.25/1.35)
20A
27326-34810
.shim Set, Final Drive Gear
20A
27326-34810
.shim Set, Final Drive Gear
21
27329-34200
.retainer, Bearing
21
27329-34200
.retainer, Bearing
22
02112-0612A
Винт
22
02112-0612A
Винт
23
09283-30028
.oil Seal (30x42x7)
23
09283-30028
.oil Seal (30x42x7)
24
27450-38A12
.case, Final Gear
24
27450-38A12
.case, Final Gear
25
27460-07A01
.case, Final Gear Bearing
25
27460-07A01
.case, Final Gear Bearing
26
09280-00015
.o Ring (d:3.5, Id:131.6)
26
09280-00015
.o Ring (d:3.5, Id:131.6)
27
01550-0825A
Болт
27
01550-0825A
Болт
28
09247-18001
.plug, Oil Filler
28
09247-18001
.plug, Oil Filler
29
09280-18004
O Ring (d:2.4, Id:17.8)
29
09280-18004
O Ring (d:2.4, Id:17.8)
30
09247-14002
.plug, Oil Drain
30
09247-14002
.plug, Oil Drain
31
09168-14004
.gasket (14.1x18x1.5)
31
09168-14004
.gasket (14.1x18x1.5)
32
27172-38A00
.coupling, Propeller Shaft
32
27172-38A00
.coupling, Propeller Shaft
33
27100-38A50
Yoke, Universal Joint
33
27100-38A50
Yoke, Universal Joint
34
27151-41F00
Вал гребного винта
34
27151-41F00
Вал гребного винта
35
09440-18019
Пружина
35
09440-18019
Пружина
36
09283-30051
Oil Seal (28.4x48x15)
36
09283-30051
Oil Seal (28.4x48x15)
37
09381-40003
.circlip
37
09381-40003
.circlip
33
27100-38A60
Yoke Comp, Unive
