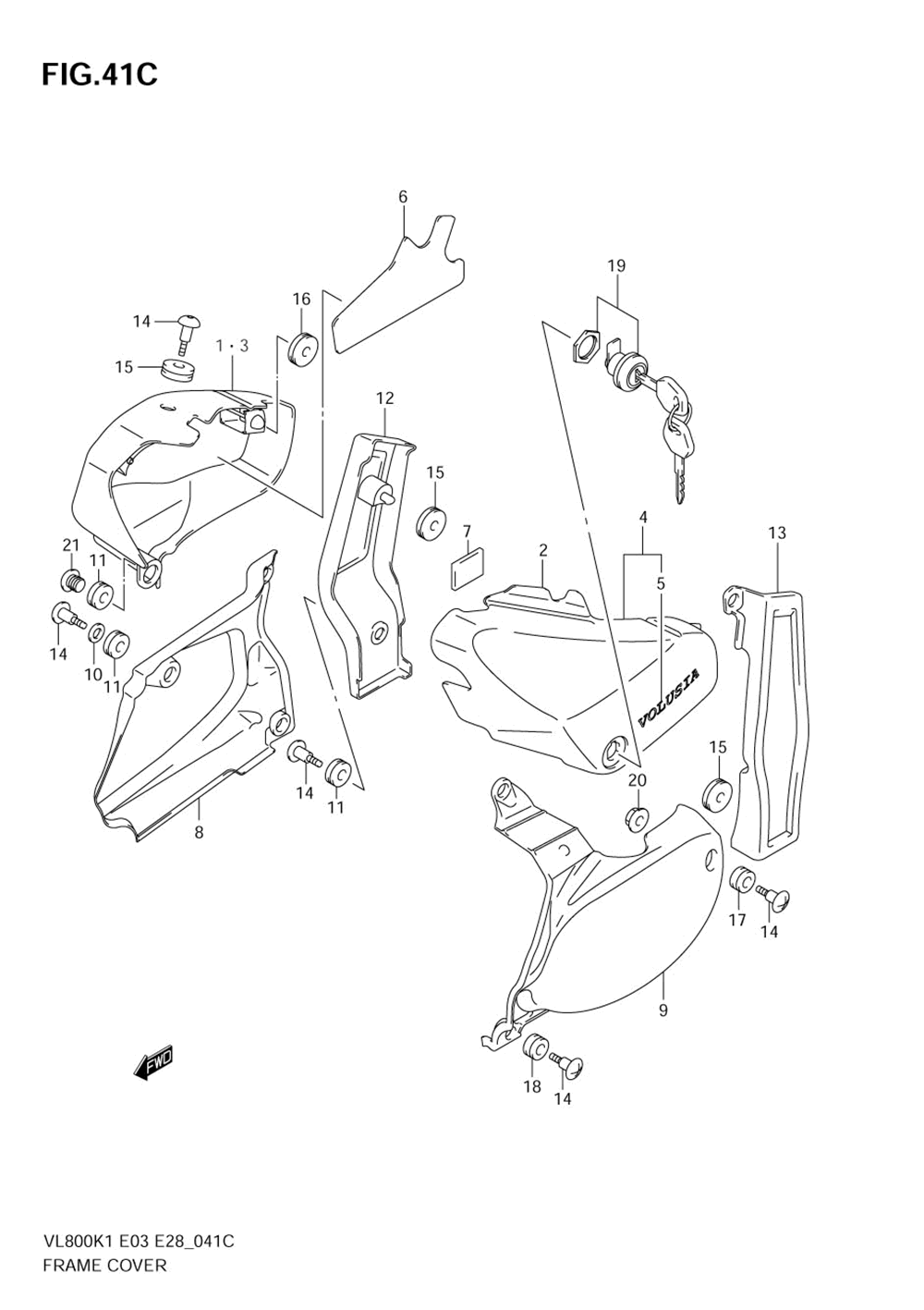

Frame cover (model k4) Оригинальные запчасти для мотоциклов Suzuki VL800,Z VOLUSIA 2; C50,T,Z (2003)

Frame cover (model k4)

Suzuki VL800,Z VOLUSIA 2; C50,T,Z

oem код

название

цена

1-1

47110-41F31-YAY

Cover Comp, Side

1-2

47110-41F30-YV2

Cover, Frame Rh (silver)

1-3

47110-41F30-YAR

Cover, Frame Rh (blue)

1-4

47110-41F40-YAY

Cover, Frame Rh (black)

1-5

47110-41F40-YV2

Cover, Frame Rh (silver)

1-6

47110-41F40-YAR

Cover, Frame Rh (blue)

2-1

47211-41F00-YAY

Cover, Frame Lh (black)

2-2

47211-41F01-YV2

Cover, Side, L(si

2-3

47211-41F00-YAR

Cover, Frame Lh (blue)

3-1

47110-41F00-YAU

Cover, Frame Rh (gray)

3-2

47110-41F20-YAU

Cover, Frame Rh (gray)

47210-41F00-YAU

Cover, Frame Lh (gray)

68131-41F00-AVY

.emblem

47166-41F00

Shield, Frame Cover Rh

Подушка

Cover, Side Lower Rh

Cover, Side Lower Lh

Шайба

.cushion, 8.5x20x8

Cover, Side Rear Rh (black)

47241-41F00-019

Cover, Side Rear Lh (black)

Screw, Brace

Cushion, Brace

.grommet

Cushion, Lower

Cushion Box Front

Lock Set, Fuel Lid

Гайка

Заглушка

2-1

47211-41F01-YAY

Cover, Side, L(bl
