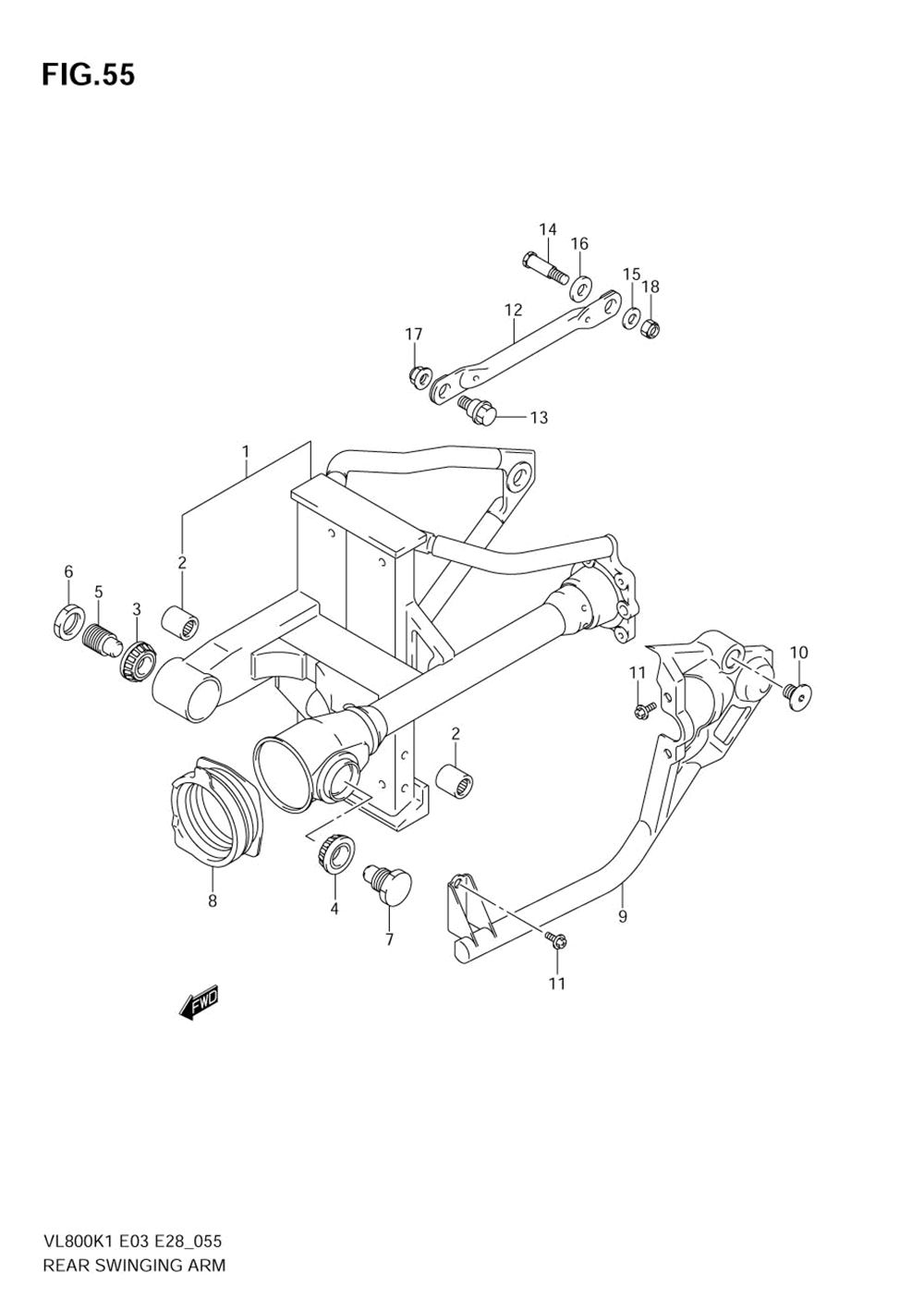

Rear swinging arm (model k1/k2)

Suzuki VL800,Z VOLUSIA 2; C50,T,Z

Rear swinging arm (model k1/k2)

#

oem код

название

цена

1

61101-41872-019

Swingingarm Set

Swingingarm Set

2

.bearing, Center (17x24x25)

.bearing, Center (17x24x25)

3

Bearing, Pivot Rh

Bearing, Pivot Rh

4

Bearing, Pivot Rh

Bearing, Pivot Rh

5

Bolt, Pivot Rh

Bolt, Pivot Rh

6

Nut, Pivot Lock

Nut, Pivot Lock

7

Bolt, Pivot Lh

Bolt, Pivot Lh

8

Boot, Shaft

Boot, Shaft

9

Cover, Rr Swgarm Lh

Cover, Rr Swgarm Lh

10

Bolt, Rr Swgarm

Bolt, Rr Swgarm

11

Bolt, Rr Swgarm Cover

Bolt, Rr Swgarm Cover

12

Torque Link, Rear

Torque Link, Rear

13

Bolt, Front

Bolt, Front

14

Болт

Болт

15

.washer, Crankcase Bolt

.washer, Crankcase Bolt

16

Cushion, Rear

Cushion, Rear

17

Nut, Upper

Nut, Upper

18

Nut, Rear Cushion Rod Rr

Nut, Rear Cushion Rod Rr
