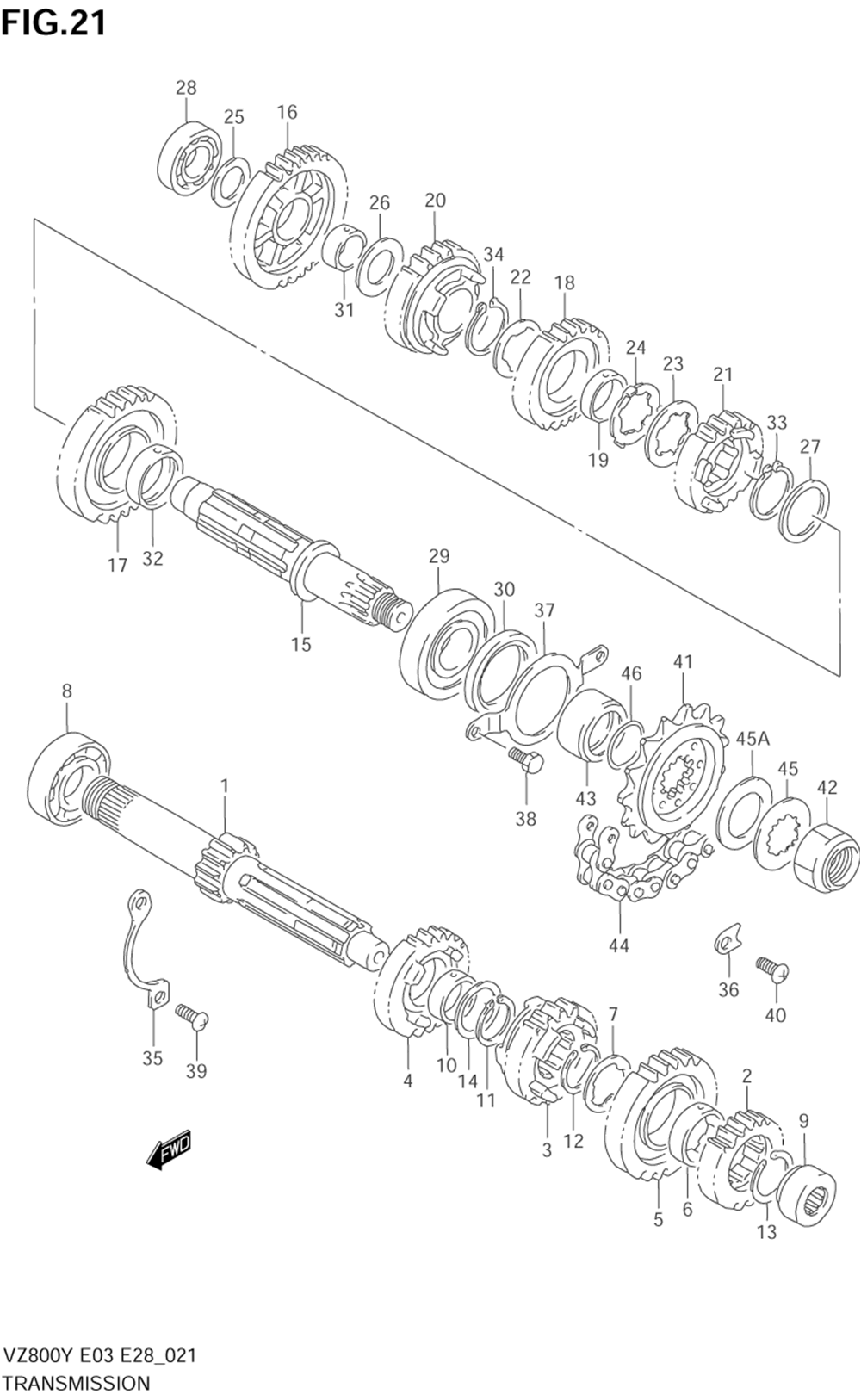

ТРАНСМИССИЯ

Suzuki VZ800 MARAUDER

ТРАНСМИССИЯ

#

oem код

название

цена

1

Shaft, Cntr (nt:13)

Shaft, Cntr (nt:13)

2

Gear, 2nd Drive (nt:19)

Gear, 2nd Drive (nt:19)

3-1

Gear, 3rd Drive (nt:20)

Gear, 3rd Drive (nt:20)

3-2

Gear, 3rd Drive (nt:20)

Gear, 3rd Drive (nt:20)

4

Gear, 4th Drive (nt:23)

Gear, 4th Drive (nt:23)

5

Gear, 5th Drive (nt:25)

Gear, 5th Drive (nt:25)

6-1

Bush, 6th Drive

Bush, 6th Drive

7

Washer, 3rd Driven

Washer, 3rd Driven

8

Bearing, Rh (25x62x17)

Bearing, Rh (25x62x17)

9

Bearing, Cntr Lh

Bearing, Cntr Lh

10-1

Bush, 5th Drive

Bush, 5th Drive

11

СТОПОРНОЕ КОЛЬЦО

СТОПОРНОЕ КОЛЬЦО

13

Circlip, 2nd Drive

Circlip, 2nd Drive

14

Шайба

Шайба

15-1

Shaft Set, Drive

Shaft Set, Drive

15-2

Вал ведущий

Вал ведущий

16

Gear, 1st Driven (nt:32)

Gear, 1st Driven (nt:32)

17

Gear, 2nd Driven (nt:30)

Gear, 2nd Driven (nt:30)

18-1

Gear, 3rd Driven (nt:24)

Gear, 3rd Driven (nt:24)

18-2

Gear, 3rd Driven (nt:24)

Gear, 3rd Driven (nt:24)

19

Bush, 3dr Driven Gear

Bush, 3dr Driven Gear

20-1

Gear, 4th Driven (nt:22)

Gear, 4th Driven (nt:22)

21-1

Gear, 5th Driven (nt:20)

Gear, 5th Driven (nt:20)

21-2

Gear, 5th Driven (nt:20)

Gear, 5th Driven (nt:20)

22

Washer (28.1x38x1.0)

Washer (28.1x38x1.0)

23

Lock Washer, Lh

Lock Washer, Lh

24

Lock Washer, Rh

Lock Washer, Rh

25

Washer (20x32x1.0)

Washer (20x32x1.0)

26

Washer, 1st Driven Lh

Washer, 1st Driven Lh

27

Washer, 2nd Driven (28x36x1.0

Washer, 2nd Driven (28x36x1.0

28

Bearing, Rh (20x42x12)

Bearing, Rh (20x42x12)

29

Bearing, Drive Shaft Lh

Bearing, Drive Shaft Lh

30

Seal, Drive Shaft

Seal, Drive Shaft

31-1

Bush, 1st Driven

Bush, 1st Driven

32

Bush, 2nd Driven

Bush, 2nd Driven

33

Circlip Idle Drive Gear

Circlip Idle Drive Gear

35

Седло

Седло

36

Retainer, Idle Shaft, Lh

Retainer, Idle Shaft, Lh

37

Retainer, Drive Shaft

Retainer, Drive Shaft

38

Болт

Болт

39

Винт

Винт

40

Винт

Винт

41

Sprocket, Engine (nt:15)

Sprocket, Engine (nt:15)

42

Гайка

Гайка

43

Проставка

Проставка

44

27600-19C00-116

Chain Assy (did50vm, 116le)

Chain Assy (did50vm, 116le)

45

Washer (25x40x1.4)

Washer (25x40x1.4)

45A

Шайба

Шайба

46

O Ring (d:2.4, Id:23.7)

O Ring (d:2.4, Id:23.7)
