Rear rack and footwell assemblies Запчасти для квадроциклов ATV Arctic Cat 700 TRV Cruiser (2008)

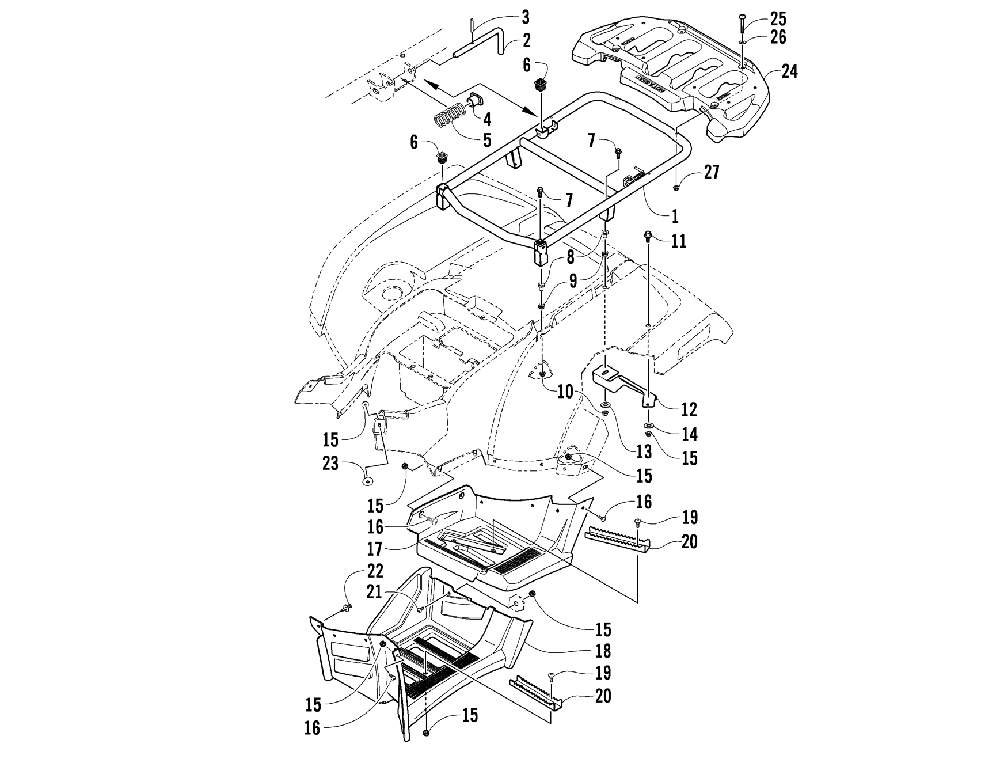

Rear rack and footwell assemblies

Arctic Cat 700 TRV Cruiser

oem код

название

цена

2506-598

Rack, Rear Frame Assy (inc. 2-6)

0541-504

Pin, Mrp-assy (inc. 3-5)

Pin, Roll-2.5mm

Collar, Seat Latch

Spring, Mrp Latch

Bushing, Rack Frame

Screw, Cap-hfh M8x1.25x35 Cl8.8 Rie Blk

0423-669

Spacer, Steel

0423-465

Grommet, Rubber-12.7x23.8125

8432-802

Гайка M8x1.25

0423-654

Screw, Shoulder-hfh M6-1.0 X 18 Cl8.8 Blk

2506-092

Bracket, Rear Fender Support-rh-painted

2506-093

Bracket, Rear Fender Support-lh-painted

0423-087

Шайба

8050-222

Шайба 1/4 X .734 X .063

0423-540

Гайка м6

0423-419

Screw, Mach-tstrh-m6-1.0 X 16 Black

2406-042

Footwell, Rear-rh

2406-043

Footwell, Rear-lh

1506-813

Footwell, Auto-routed-rh

2406-471

Footwell, Auto-routed-lh

0423-355

Винт -m6-1.0 X 18

1506-125

Footpeg, Black

8477-620

Screw, Mach-tstrh M6x1.0x20 Z&blk

Клипса, Пластмасса

Винт M6

Rack, Rear-trv Assy

Screw, Cap-hfh M6x1.0x40 Cl8.8 Rie Blk

8050-223

Washer, Flat (std) 1/4 Dia Blk

0423-540

Гайка м6
