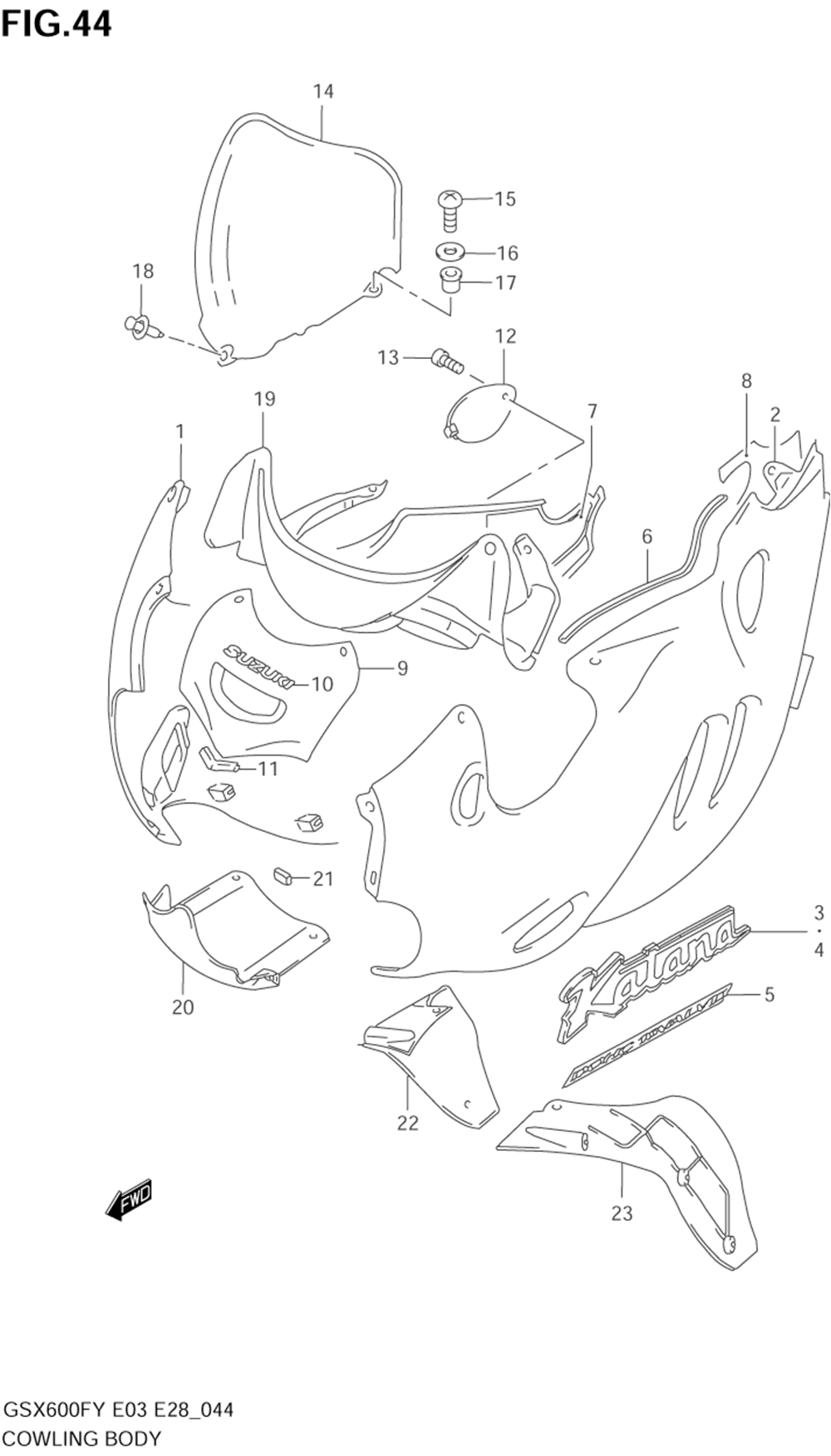

Облицовка (model w)

Suzuki GSX600F KATANA
Suzuki
#oem кодцена
1-1
94403-08F10-28V
Cowl Assy, Side Rh (red)
1-2
94403-08F10-Y4E
Cowl Assy, Side Rh (blue)
2-1
94404-08F10-28V
Cowl Assy, Side Lh (red)
2-2
94404-08F10-Y4E
Cowl Assy, Side Lh (blue)
2-3
94404-08F20-28V
Cowl Assy, Side Lh (red)
2-4
94404-08F20-Y4E
Cowl Assy, Side Lh (blue)
3
68681-08F00
.emblem, Katana Rh
4
68691-08F00
.emblem, Katana Lh
5-1
68681-08F20-H3Y
.emblem, Side
5-2
68681-08F20-K5N
.emblem, Side
6
94631-44110
.molding
7
94439-08F00
.shield, Side Rh
8
94449-08F00
.shield, Side Lh
9-1
94410-08F00-28V
Panel, Center Upper (red)
9-2
94410-08F00-Y4E
Panel, Center Upper (blue)
10-1
68185-05C10-20G
.emblem, Body (gray)
10-2
68185-05C10-20H
.emblem, Body (silver)
11
94413-08F00
.cushion, Upper
12-1
94435-08F00-28V
Lid, Oil (red)
12-2
94435-08F00-Y4E
Lid, Oil (blue)
13
09139-06030
Болт
14
94611-08F00
Wind Screen
15
09139-05025
Винт
16
08322-0105A
Шайба
17
09159-05019
.nut, Air Intk Inner Guide
18
09409-08308-5ES
Клипса (черн.)
19
94421-08F00
Панель
20-1
94412-08F00-28V
Panel, Center Lower (red)
20-2
94412-08F00-Y4E
Panel, Center Lower (blue)
22-1
94461-08F00-28V
Panel, Inner Rh (red)
22-2
94461-08F00-Y4E
Panel, Inner Rh (blue)
23-1
94462-08F00-28V
Panel, Inner Lh (red)
23-2
94462-08F00-Y4E
Panel, Inner Lh (blue)
