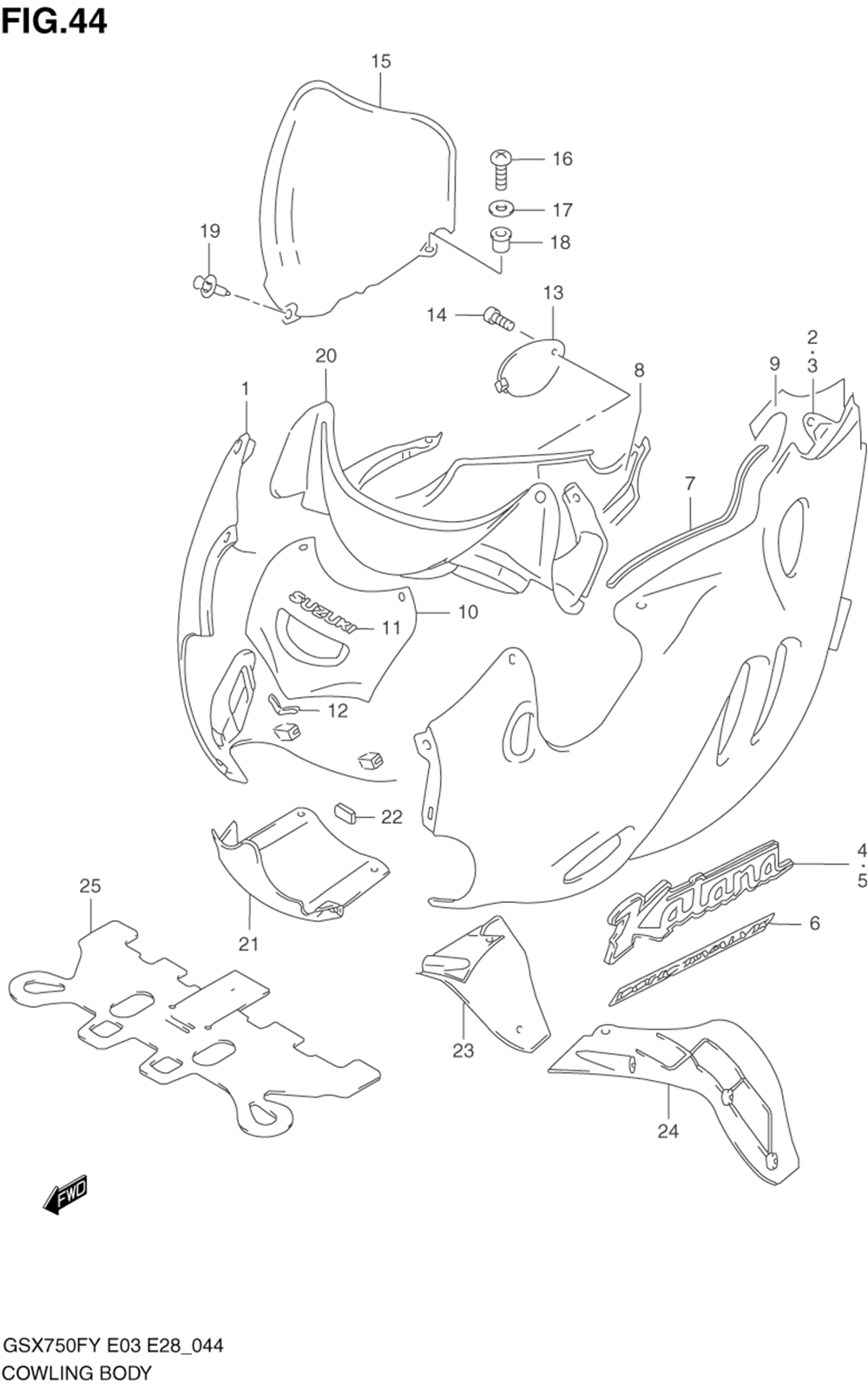

Облицовка (model w)

Suzuki GSX750F KATANA
Suzuki
#oem кодцена
1-1
94403-08F10-33J
Cowl Assy, Side Rh (black)
1-2
94403-08F10-Y4M
Cowl Assy, Side Rh (maroon)
2-1
94404-08F10-33J
Cowl Assy, Side Lh (black)
2-2
94404-08F10-Y4M
Cowl Assy, Side Lh (maroon)
3-1
94404-08F20-33J
Cowl Assy, Side Lh (black)
3-2
94404-08F20-Y4M
Cowl Assy, Side Lh (maroon)
4
68681-08F00
.emblem, Katana Rh
5
68691-08F00
.emblem, Katana Lh
6-1
68681-08F20-3EE
.emblem, Side
6-2
68681-08F20-K5Y
.emblem, Side
7
94631-44110
.molding
8
94439-08F00
.shield, Side Rh
9
94449-08F00
.shield, Side Lh
10-1
94410-08F00-33J
Panel, Center Upper (black)
10-2
94410-08F00-Y4M
Panel, Center Upper (maroon)
11
68185-05C10-20H
.emblem, Body (silver)
12
94413-08F00
.cushion, Upper
13-1
94435-08F00-33J
Lid, Oil (black)
13-2
94435-08F00-Y4M
Lid, Oil (maroon)
14
09139-06030
Болт
15
94611-08F00
Wind Screen
16
09139-05025
Винт
17
08322-0105A
Шайба
18
09159-05019
.nut, Air Intk Inner Guide
19
09409-08308-5ES
Клипса (черн.)
20
94421-08F00
Панель
21-1
94412-08F00-33J
Panel, Center Lower (black)
21-2
94412-08F00-Y4M
Panel, Center Lower (maroon)
23-1
94461-08F00-33J
Panel, Inner Rh (black)
23-2
94461-08F00-Y4M
Panel, Inner Rh (maroon)
24-1
94462-08F10
Panel, Inner Lh
24-2
94462-08F00-Y4M
Panel, Inner Lh (maroon)
25
94451-20C01
Plate, Air Guide
