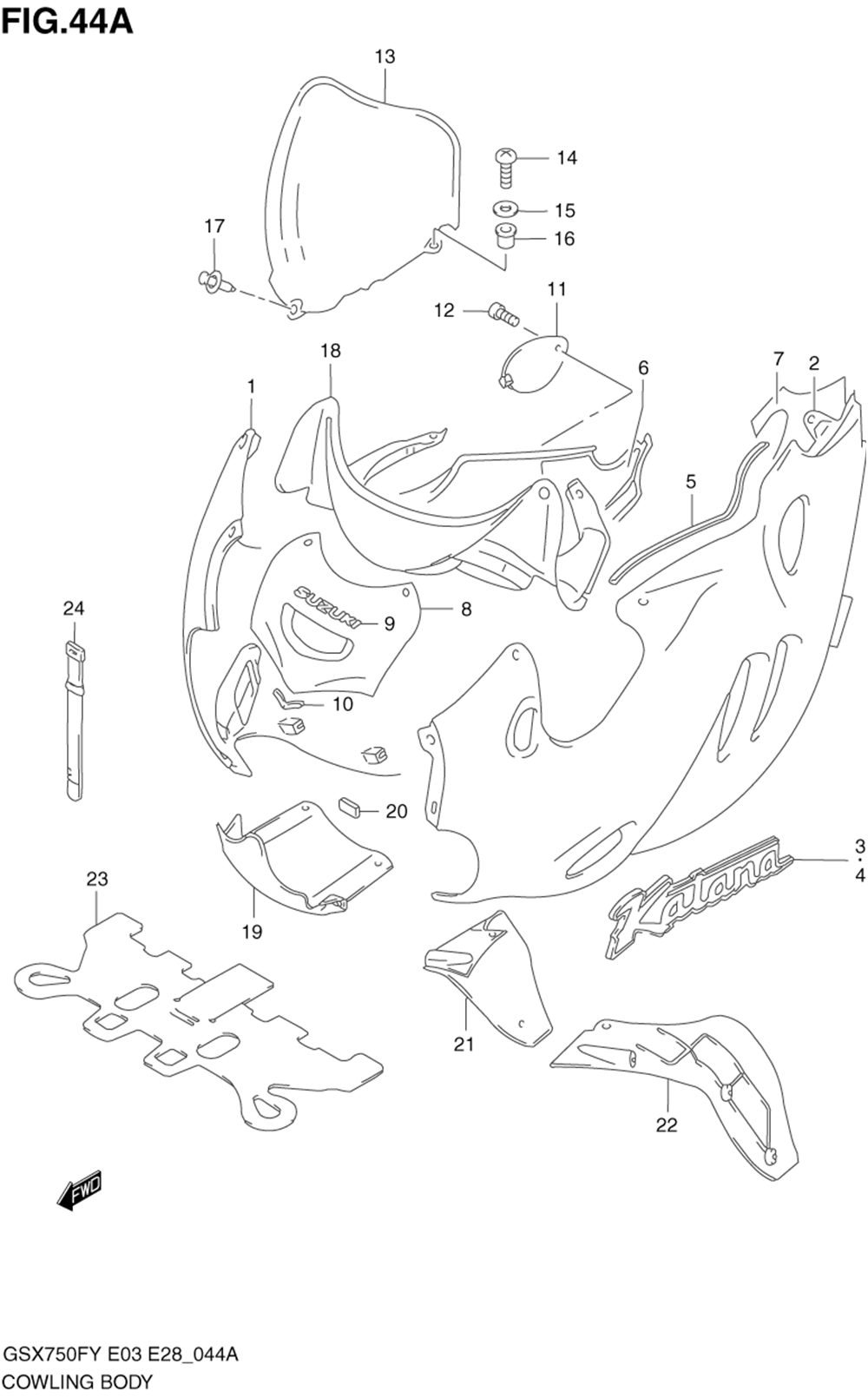

Облицовка (model X) Оригинальные запчасти для мотоциклов Suzuki GSX750F KATANA (1999)

Облицовка (model X)

Suzuki GSX750F KATANA

oem код

название

цена

1-1

94403-08F40-Y4M

Cowl Assy, Side Rh (maroon)

1-2

94403-08F40-Y7H

Cowl Assy, Side Rh (blue)

2-1

94404-08F40-Y4M

Cowl Assy, Side Lh (maroon)

2-2

94404-08F40-Y7H

Cowl Assy, Side Lh (blue)

2-3

94404-08F50-Y4M

Cowl Assy, Side Lh (maroon)

2-4

94404-08F50-Y7H

Cowl Assy, Side Lh (blue)

.emblem, Katana Rh

.emblem, Katana Lh

.molding

.shield, Side Rh

.shield, Side Lh

8-1

94410-08F00-Y4M

Panel, Center Upper (maroon)

8-2

94410-08F00-Y7H

Panel, Center Upper (blue)

68185-05C10-20H

.emblem, Body (silver)

94413-08F00

.cushion, Upper

11-1

94435-08F00-Y4M

Lid, Oil (maroon)

11-2

Lid, Oil (blue)

Болт

Wind Screen

Винт

Шайба

.nut, Air Intk Inner Guide

09409-08308-5ES

Клипса (черн.)

94421-08F00

Панель

19-1

94412-08F00-Y4M

Panel, Center Lower (maroon)

19-2

94412-08F00-Y7H

Panel, Center Lower (blue)

21-1

94461-08F00-Y4M

Panel, Inner Rh (maroon)

21-2

94461-08F00-Y7H

Panel, Inner Rh (blue)

22-1

94462-08F00-Y4M

Panel, Inner Lh (maroon)

22-2

94462-08F00-Y7H

Panel, Inner Lh (blue)

94451-20C01

Plate, Air Guide

24-1

09407-18402

Стяжка L-165

24-2

09407-25401

Стяжка
