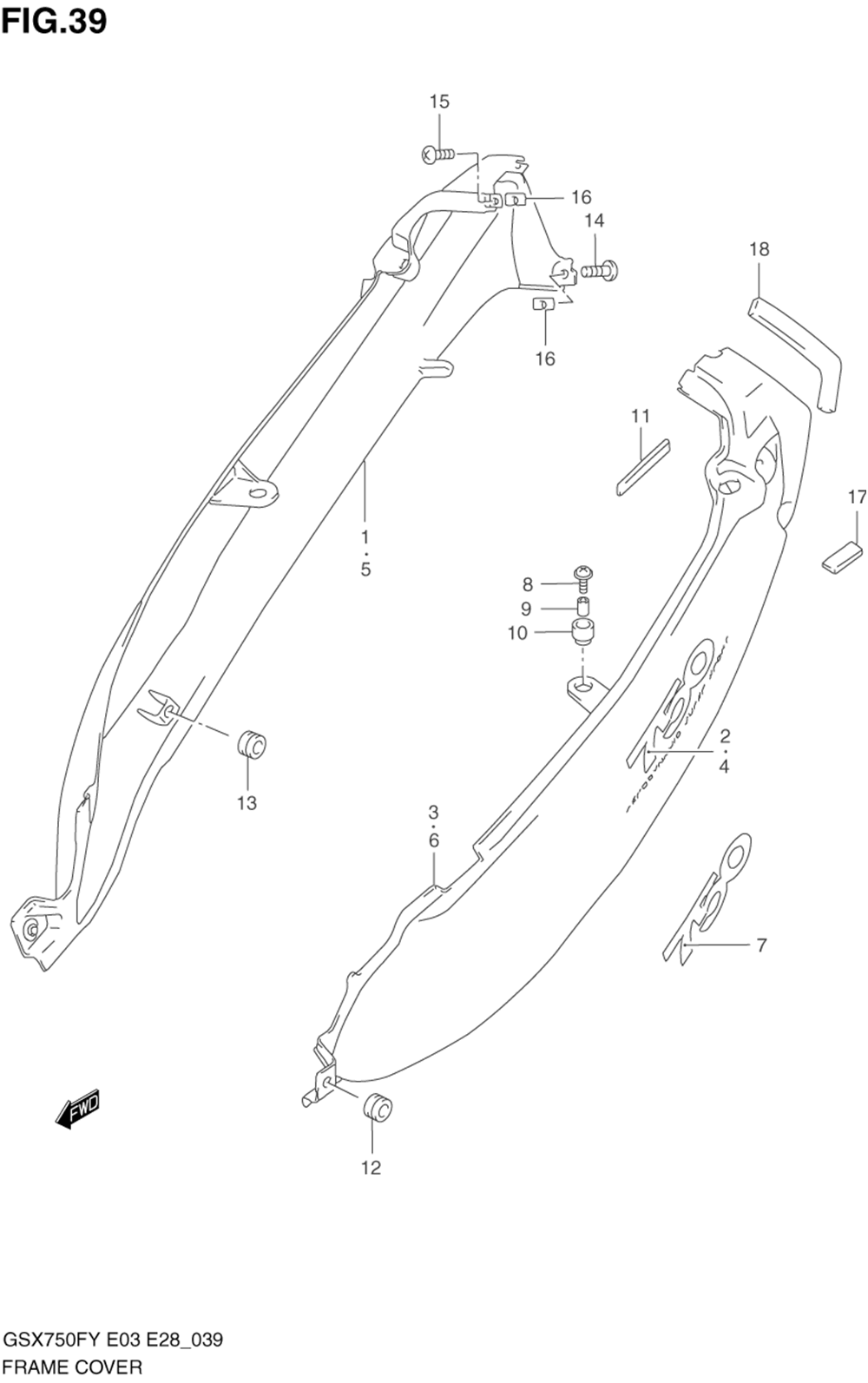

Frame cover (model w/x) Оригинальные запчасти для мотоциклов Suzuki GSX750F KATANA (1999)

Frame cover (model w/x)

Suzuki GSX750F KATANA

oem код

название

цена

1-1

47110-08F10-33J

Cover, Frame Rh (black)

1-2

47110-08F10-Y4M

Cover, Frame Rh (maroon)

2-1

68131-08F10-K5T

.emblem, Rh

2-2

68131-08F10-K5V

.emblem, Rh

3-1

47210-08F10-33J

Cover, Frame Lh (black)

3-2

47210-08F10-Y4M

Cover, Frame Lh (maroon)

4-1

68141-08F10-K5T

.emblem, Lh

4-2

68141-08F10-K5V

.emblem, Lh

5-1

47110-08F30-Y4M

Cover, Frame Rh (maroon)

5-2

47110-08F30-Y7H

Cover, Frame Rh (blue)

6-1

47210-08F30-Y4M

Cover, Frame Lh (maroon)

6-2

47210-08F30-Y7H

Cover, Frame Lh (blue)

7-1

68131-08F30-M4Z

.emblem

7-2

.emblem

Винт

Проставка

Подушка

Cushion, Rear

.grommet

Cushion, Brace

Screw, Seat Tail Cover

Винт

Гайка

.cushion

Подушка
